Ricoh D096 - 5.2 USING SP MODES; 5.2.1 ADJUSTING REGISTRATION AND MAGNIFICATION

Using SP Modes
SM 5-3 D096
Service
Tables
5.2 USING SP MODES
5.2.1 ADJUSTING REGISTRATION AND MAGNIFICATION
To adjust the registration and magnification, you need to use several service programs.

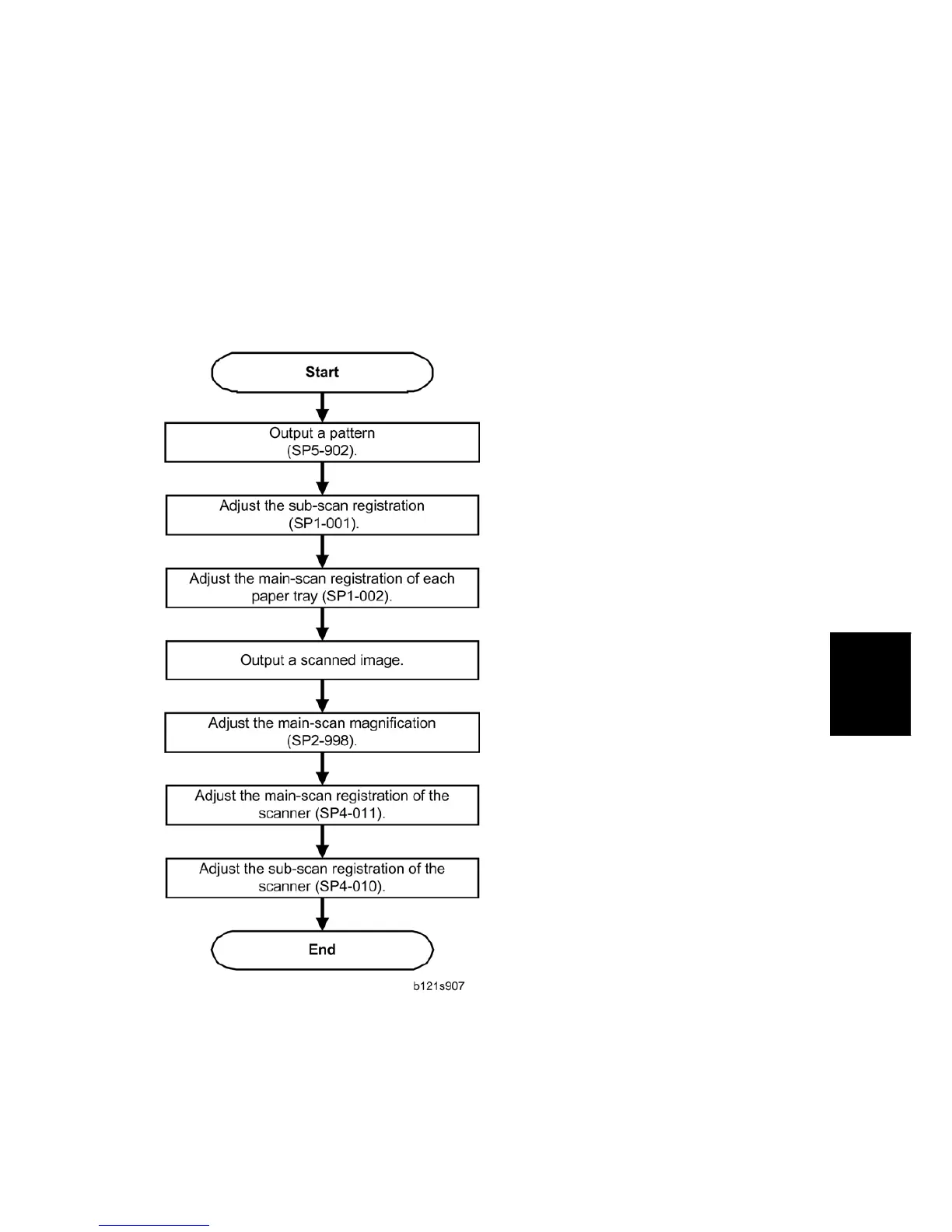

The chart shows an example of the procedure to adjust the machine in the basic
configuration.
