Ricoh D096 - 3.9 FEED COVER OPEN SENSOR; FEED CLUTCH;ROM;DF DRIVE BOARD

FEED COVER OPEN SENSOR/
FEED CLUTCH/ROM/DF DRIVE BOARD
B813 20 SM
3.9 FEED COVER OPEN SENSOR/
FEED CLUTCH/ROM/DF DRIVE BOARD
Exterior
1. Rear cover ( 3.1.1)
Feed Cover Open Sensor
2. Sensor bracket [A] ( x 1)
3. Feed cover open sensor [B] ( x 1)
Feed Clutch
2. Feed unit ( 3.2)
3. Feed clutch [C] ( x 1, 1 bushing,  x 1).
NOTE: Pull the shaft inward until the clutch can be removed.
ROM
2. Replace the ROM [D] on the DF drive board.
DF Drive Board
2. DF drive board [E] ( x 3, all connectors)

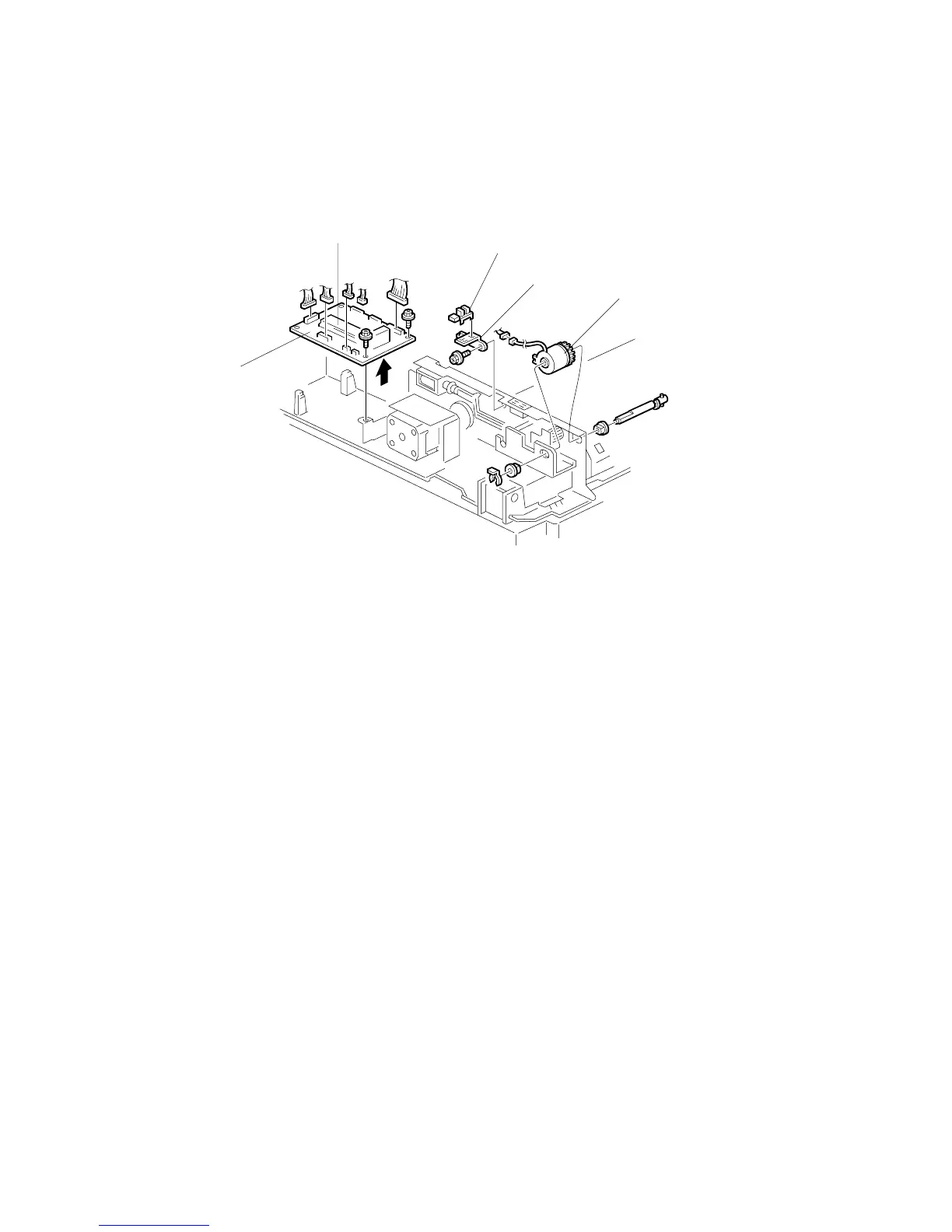

B813R913.WMF
