Ricoh D096 - 1.3 DRIVE LAYOUT

DRIVE LAYOUT
SM 3 B813
Document
Feeder
DF2000
B813

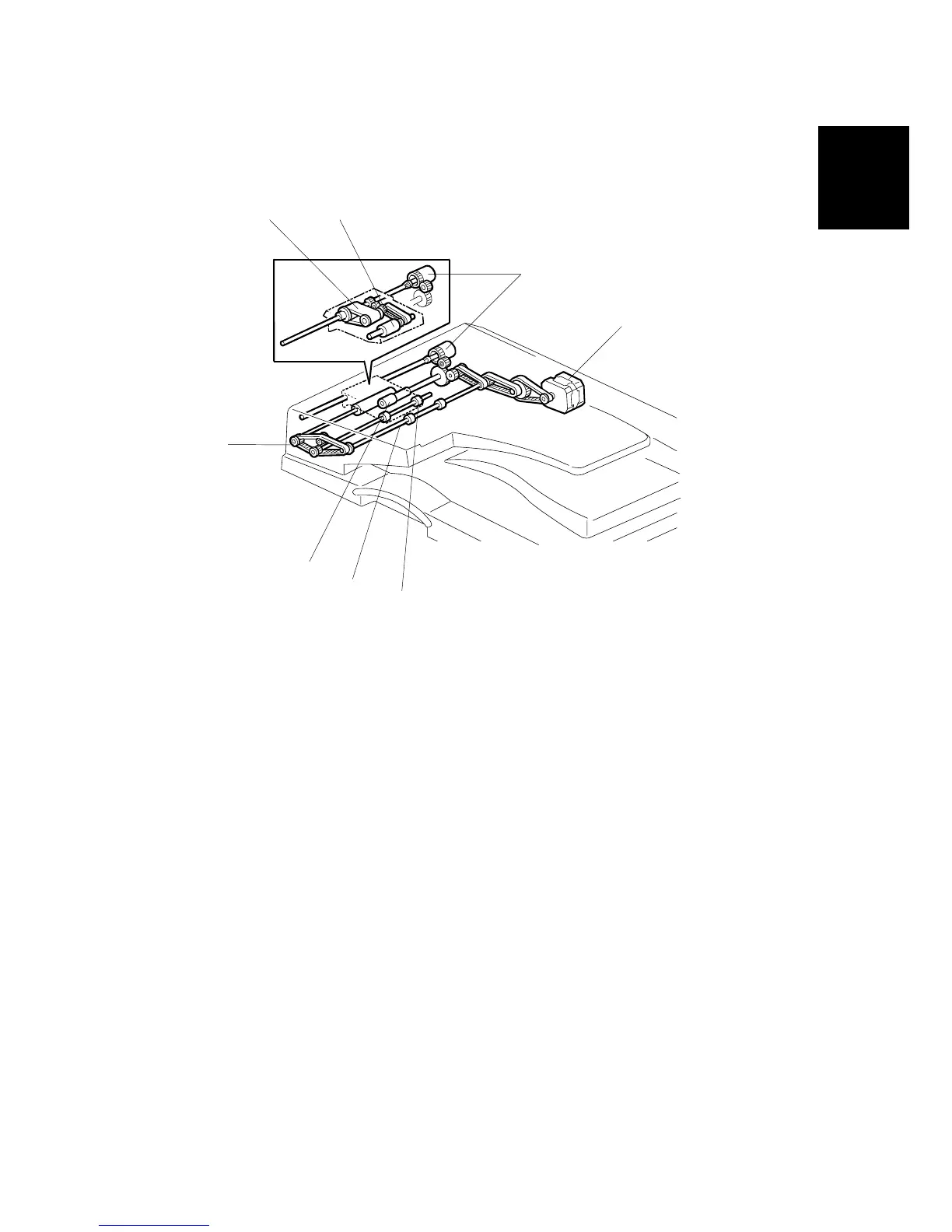

1.3 DRIVE LAYOUT
1. DF feed clutch
2. DF transport motor
3. 2nd transport roller
4. Exit roller
5. Separation roller
6. 1st transport roller
7. Original feed belt
8. Pick-up roller
B813I903.WMF
2
1
8 7
6
5
4
3
