Ricoh D096 - 4.5.2 TONER SHIELD GLASS

Laser Unit
D096 4-20 SM
4.5.2 TONER SHIELD GLASS
1. Open the front door.

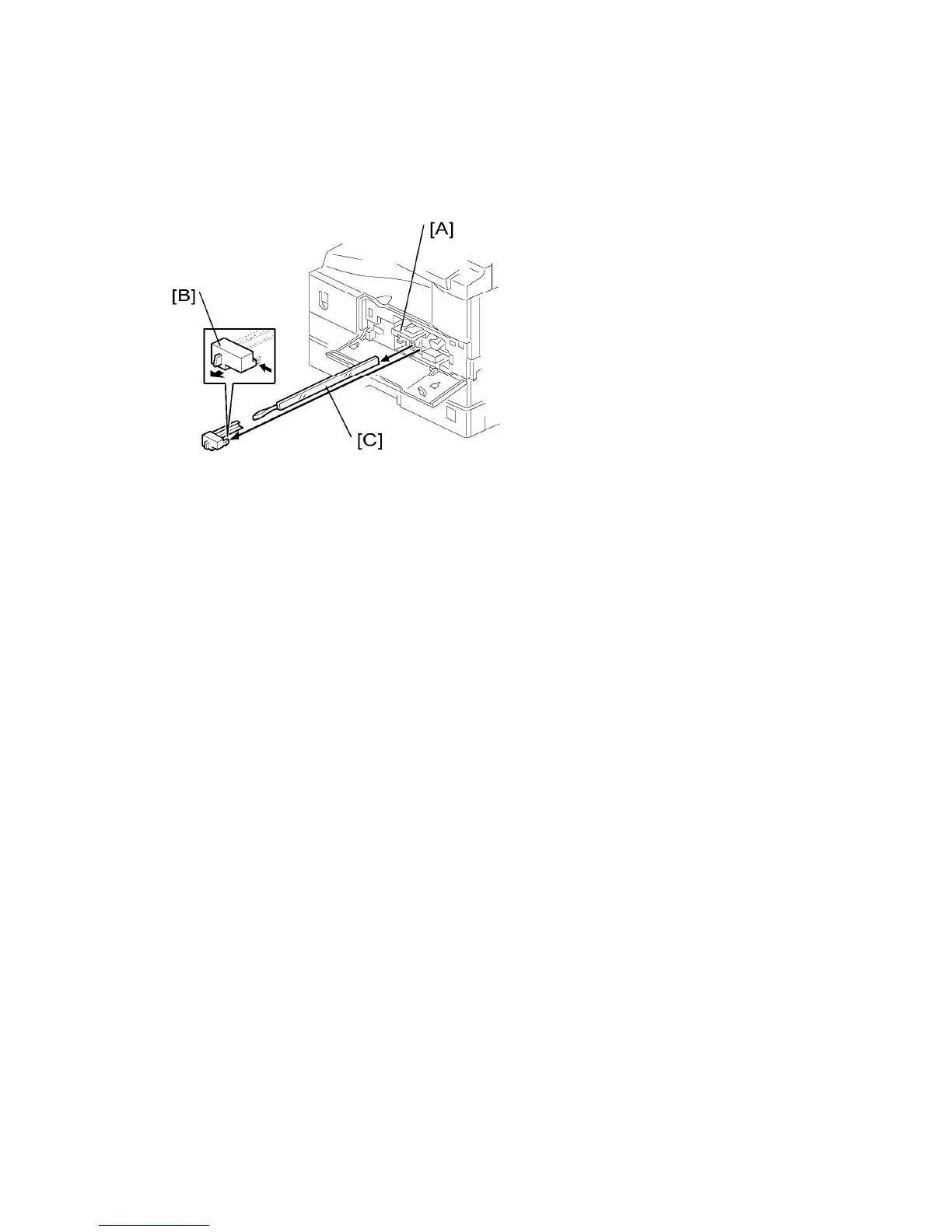

2. Lift the toner cartridge latch [A].
3. Press the toner shield glass cover [B] to the left and pull it out.
4. Pull out the toner shield glass [C].
