Ricoh D096 - 4.8.2 IMAGE DENSITY SENSOR

Image Transfer
D096 4-44 SM

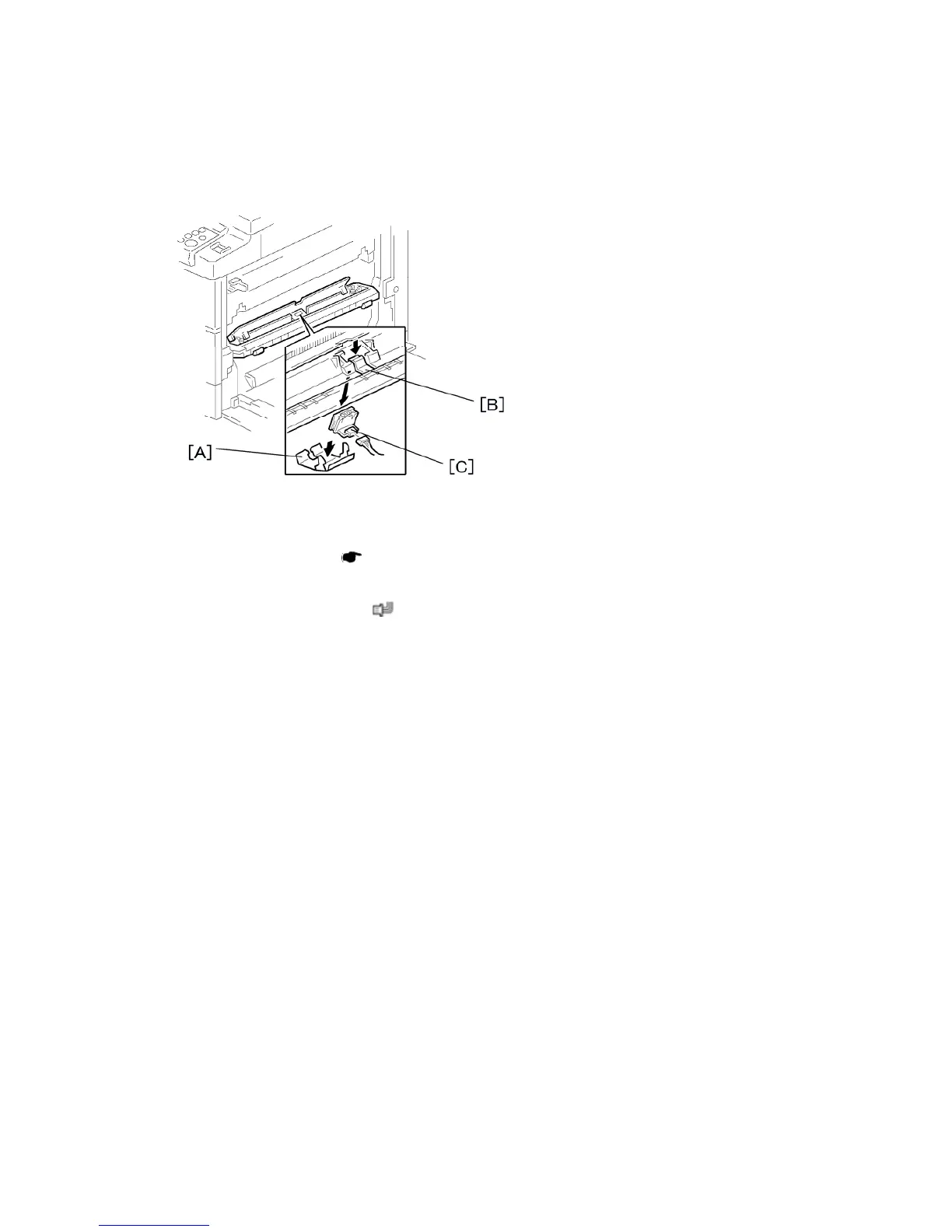

4.8.2 IMAGE DENSITY SENSOR
1. Open the right door.
2. Plastic cover [A]
3. Image transfer roller ( p.4-43)
4. Push down on the notch [B] to free the sensor.
5. Image density sensor [C] (
x 1)
