Ricoh D096 - 4.9.7 PRESSURE ROLLER AND BUSHINGS

Fusing
SM 4-49 D096
Replacement
and
Adjustment

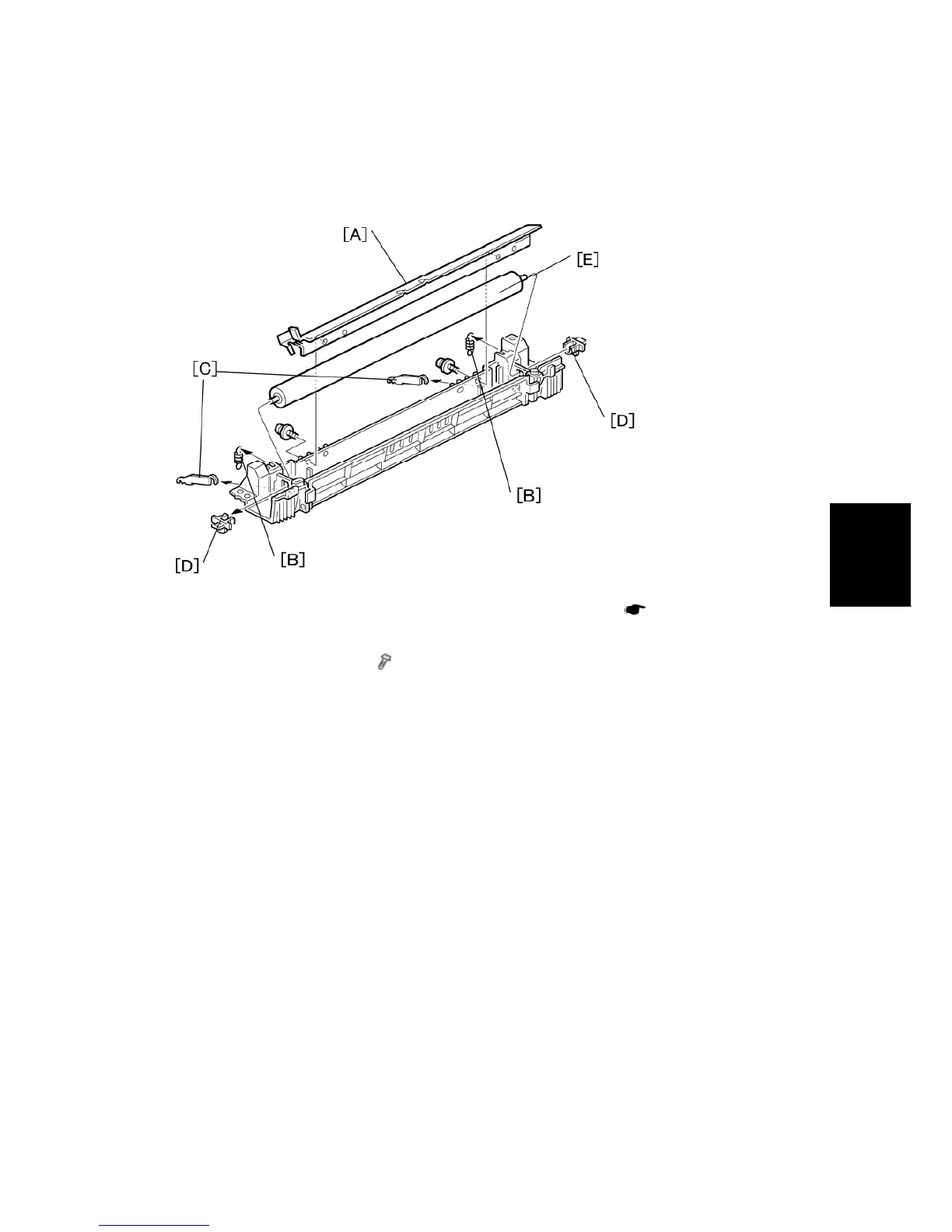

4.9.7 PRESSURE ROLLER AND BUSHINGS
1. Separate the hot roller section from the pressure roller section (
p.4-46 "Fusing
Lamps").
2. Fusing entrance guide [A] (
x 2)
3. 2 springs [B]
4. 2 pressure arms [C]
5. 2 Bushings [D]
6. Pressure roller [E]
