PICK-UP ROLLER
SM 17 B813
Document
Feeder
DF2000
B813

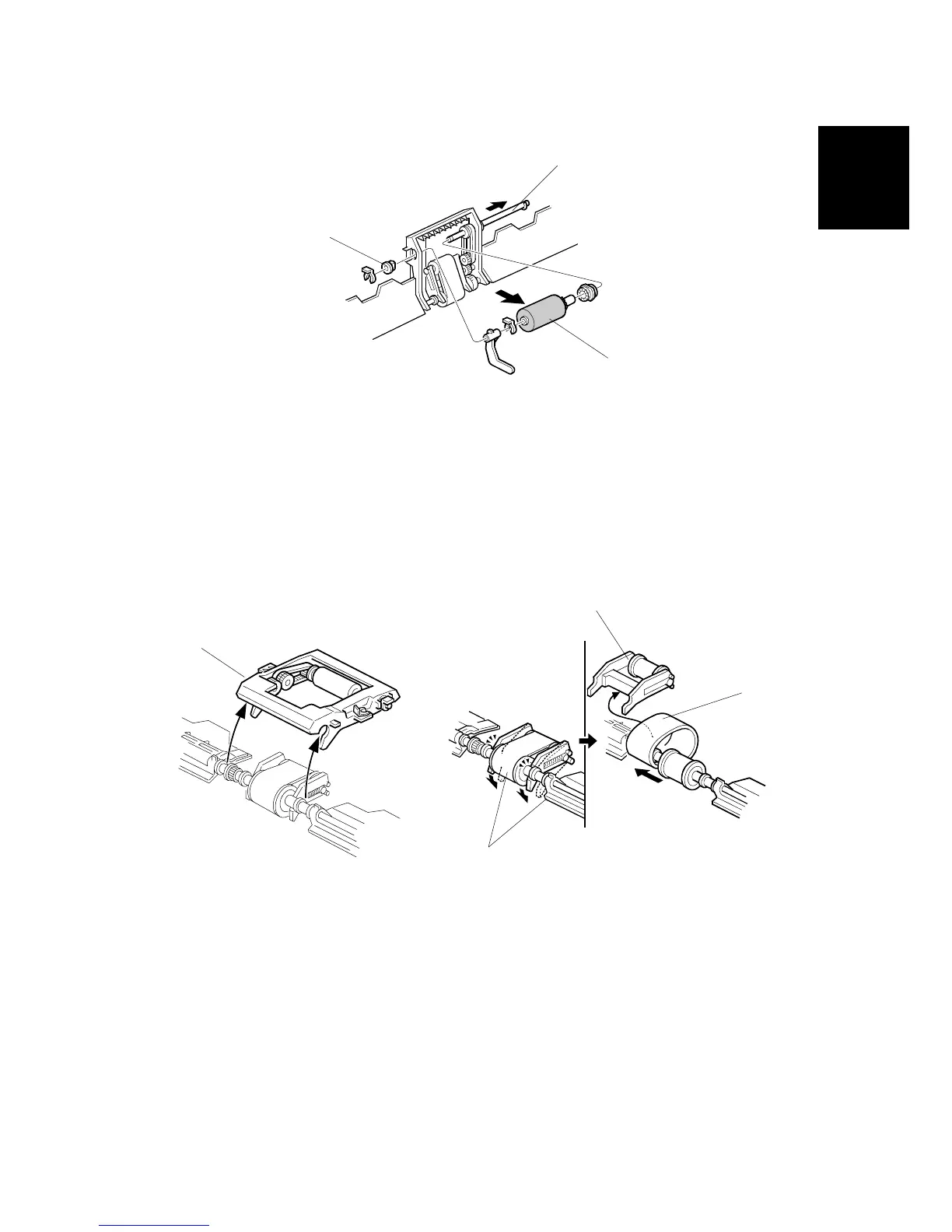

3.4 PICK-UP ROLLER
1. Feed unit ( 3.2)
2. Remove 2 clip rings and 1 bushing [A]
3. Pull the shaft [B] part way out at the gear end, so that the pick-up roller [C] can
be taken off.
3.5 FEED BELT
1. Feed unit ( 3.2)
2. Pick-up roller housing [D]
3. Push down on the lower wings [E] of the tensioning piece [F], so that the
tensioning piece comes free of the shaft.
4. Take the tensioning piece out, and then remove the belt [G].
B813R906.WMF
B813R907.WMF
B813R908.WMF
[A]
[B]
[C]
[F]
[G]
[E]
[D]
