Copy Adjustments Printing/Scanning
D096 4-64 SM
- Sub-scan Magnification -

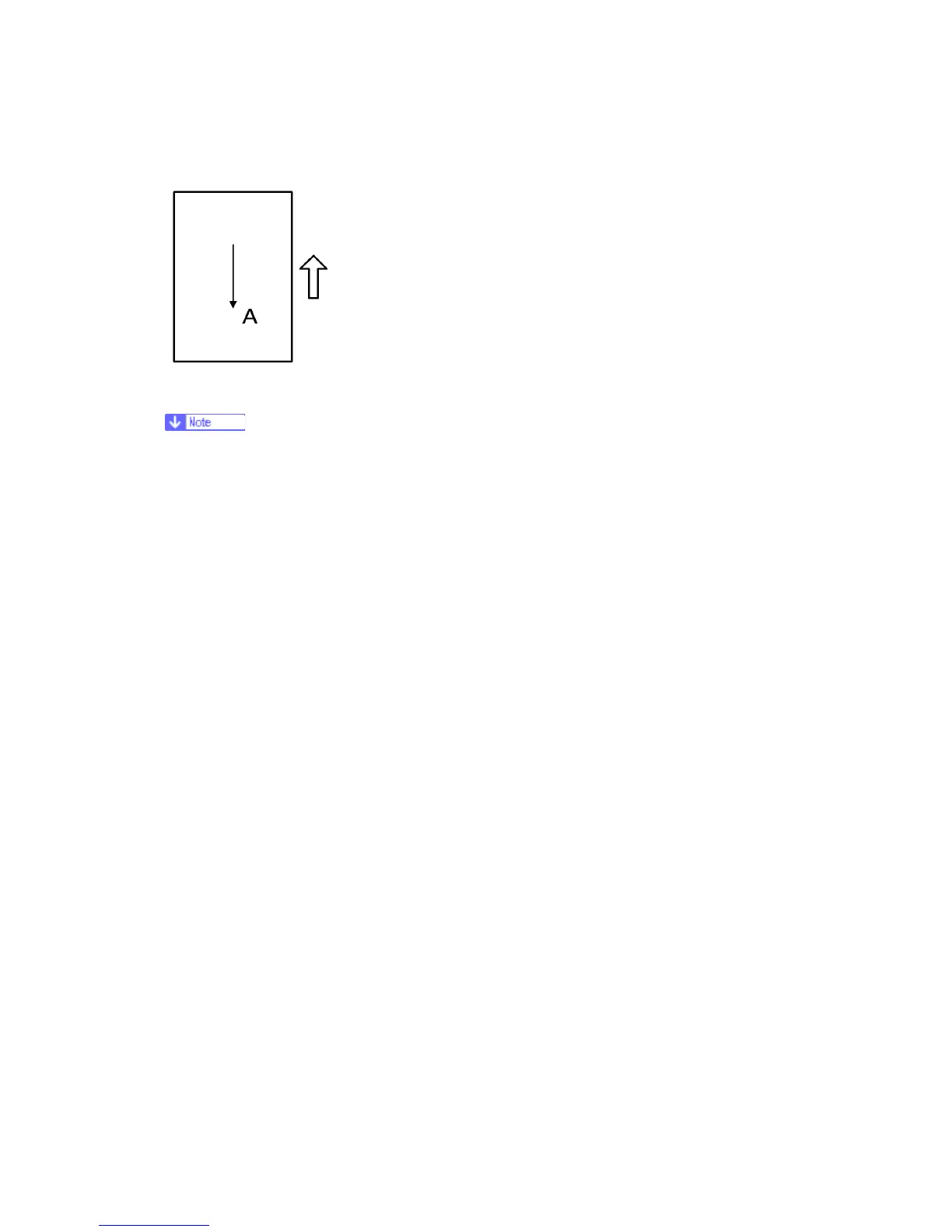

A: Sub-scan magnification
Make a temporary test chart as shown above, with A3/11" x 17" paper.
Place the temporary test chart on the ADF and make a copy from one of the feed stations.
Check the registration, and if necessary adjust it with SP 6006 5. The specification is
±1.0%.
