SKEWED, TRAPEZOID, AND PARALELLOGRAM IMAGES 10 February 2005
4-36
Action 5-2 Adjusting the original skew when the rear pulling load is larger

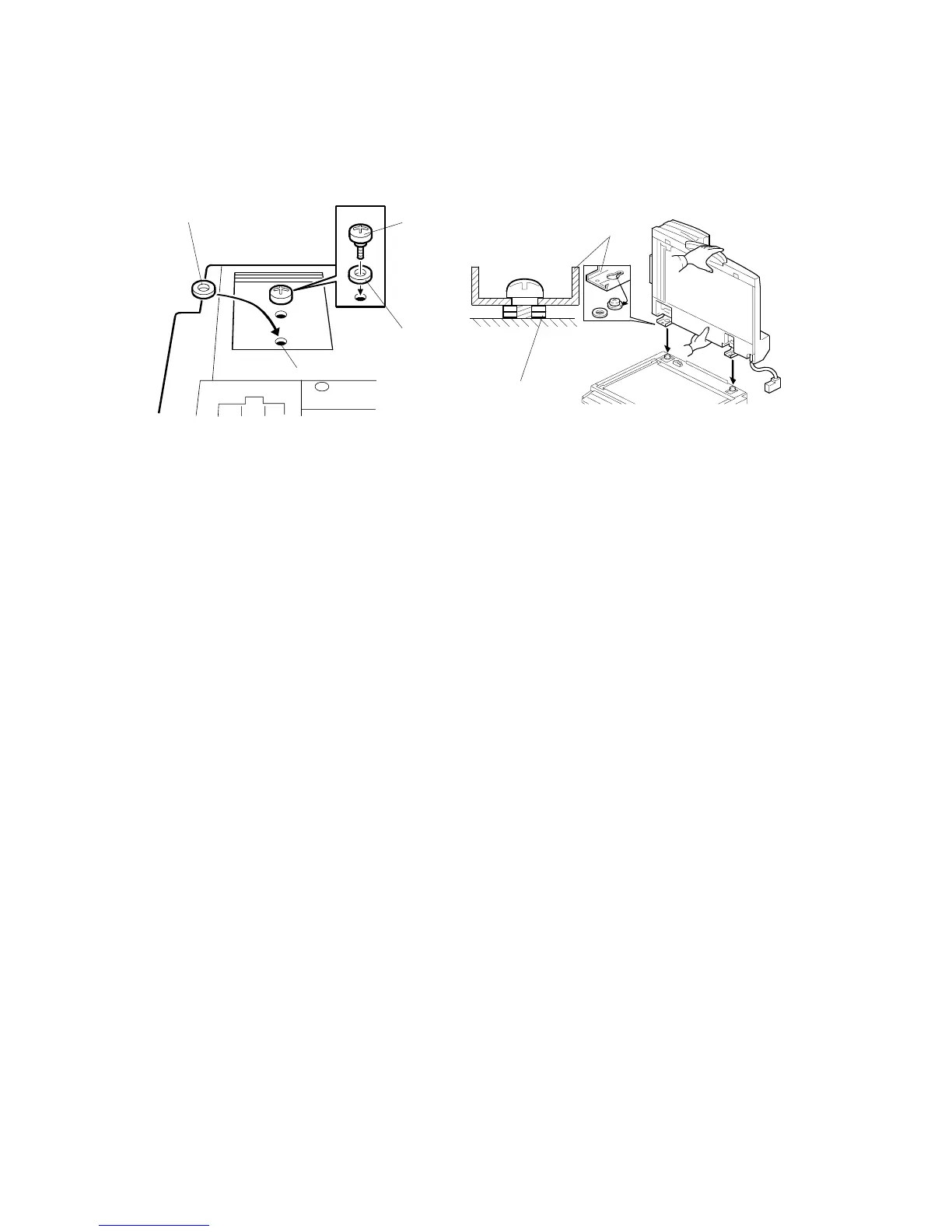

Raise the left side of the ADF by adding washers as shown below.
1. Remove the ADF unit from the copier.
2. Remove the shoulder screw [A].
3. Add one or two washers (P/N 07010050Z [B], t=0.7mm) between the hinge
bracket (mainframe) and ADF left hinge [E] to raise the height of the left side of
the ADF.
4. Add the same quantity of the washers [C] to the neighboring screw hole [D] on
the hinge bracket.
5. Reattach the ADF so that the ADF hinge [E] is positioned horizontal on top of
the washers added to the left hinge bracket.
M03070201.WMF
M03070202.WMF
[A][C]
[E]
[B]
[B, C]
[D]
To Next Page
