LCT (B457) 10 February 2005
1-18

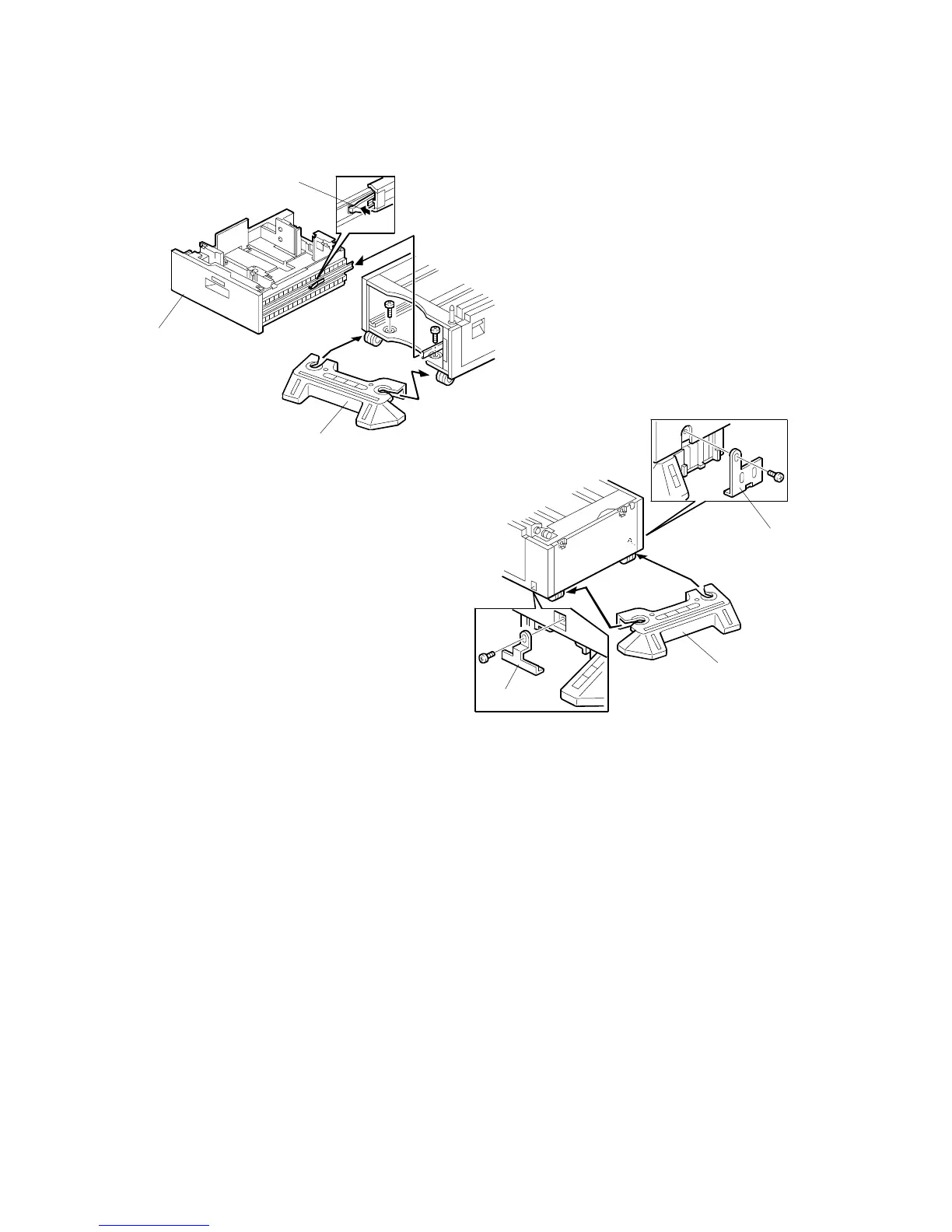

2. While pressing the stopper [A] attached to the guide rail, pull out the large
capacity tray [B].
3. Install the front stand [C] (! x2).
4. Install the rear stand [D].
5. Attach the two stand brackets [E] (! x1 each).
B457I003.WMF
B457I104.WMF
[A]
[B]
[E]
[D]
[E]
[C]
