1 BIN TRAY UNIT (B480) 10 February 2005
1-28

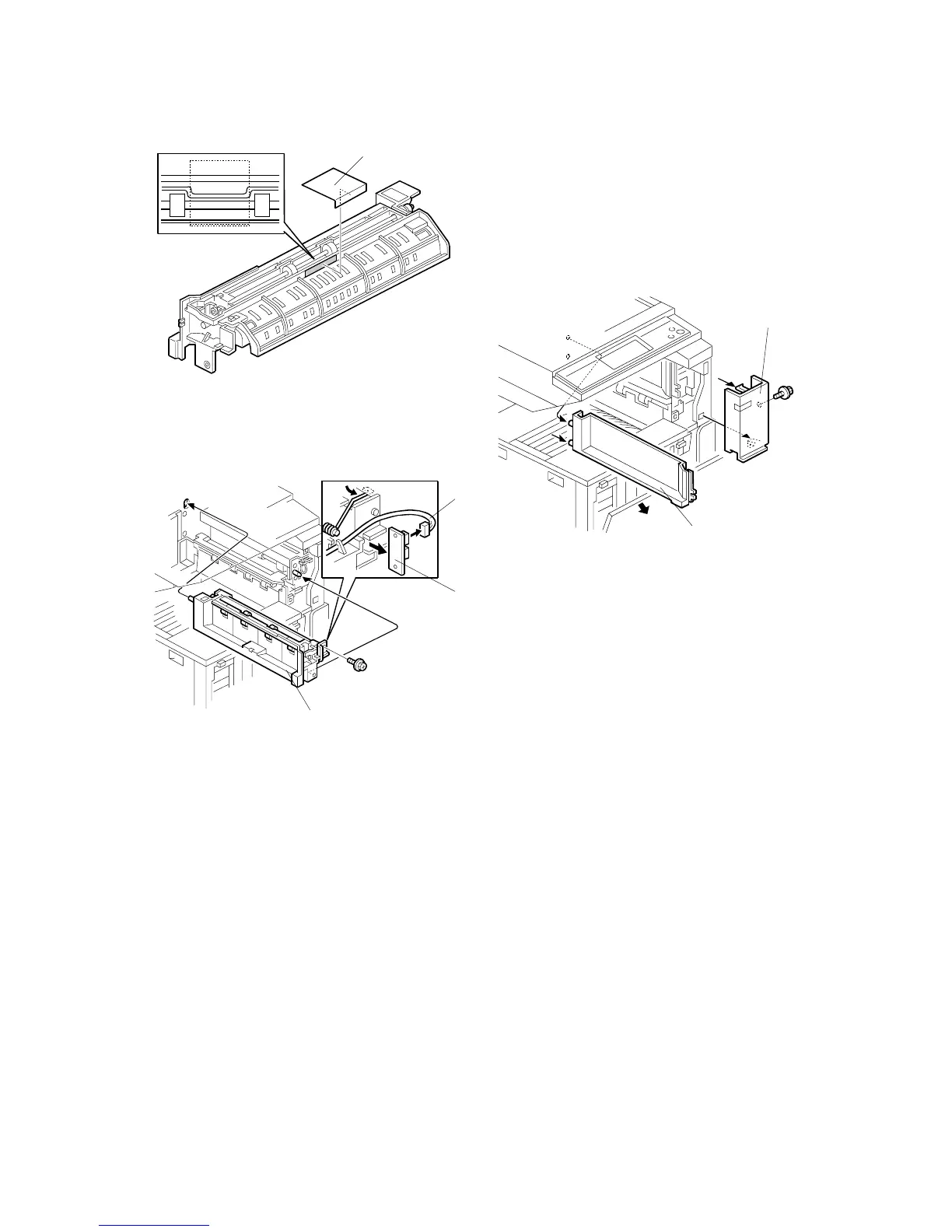

3. Peel off the backing of the double-sided tape attached to the shield mylar [A].
Then attach the shield mylar to the 1-bin unit, as shown.
4. If the front right cover [B] is installed, remove it (! x1).
5. Remove the cover [C].
6. Install the 1-bin tray unit [D] (! x1).
7. Disconnect the connector [E] and remove the LED board [F].
B480I108.WMF
B480I102.WMF
B480I103.WMF
[A]
[B]
[C]
[D]
[E]
[F]
