10 February 2005 SHIFT TRAY (B510)
1-31
Installation

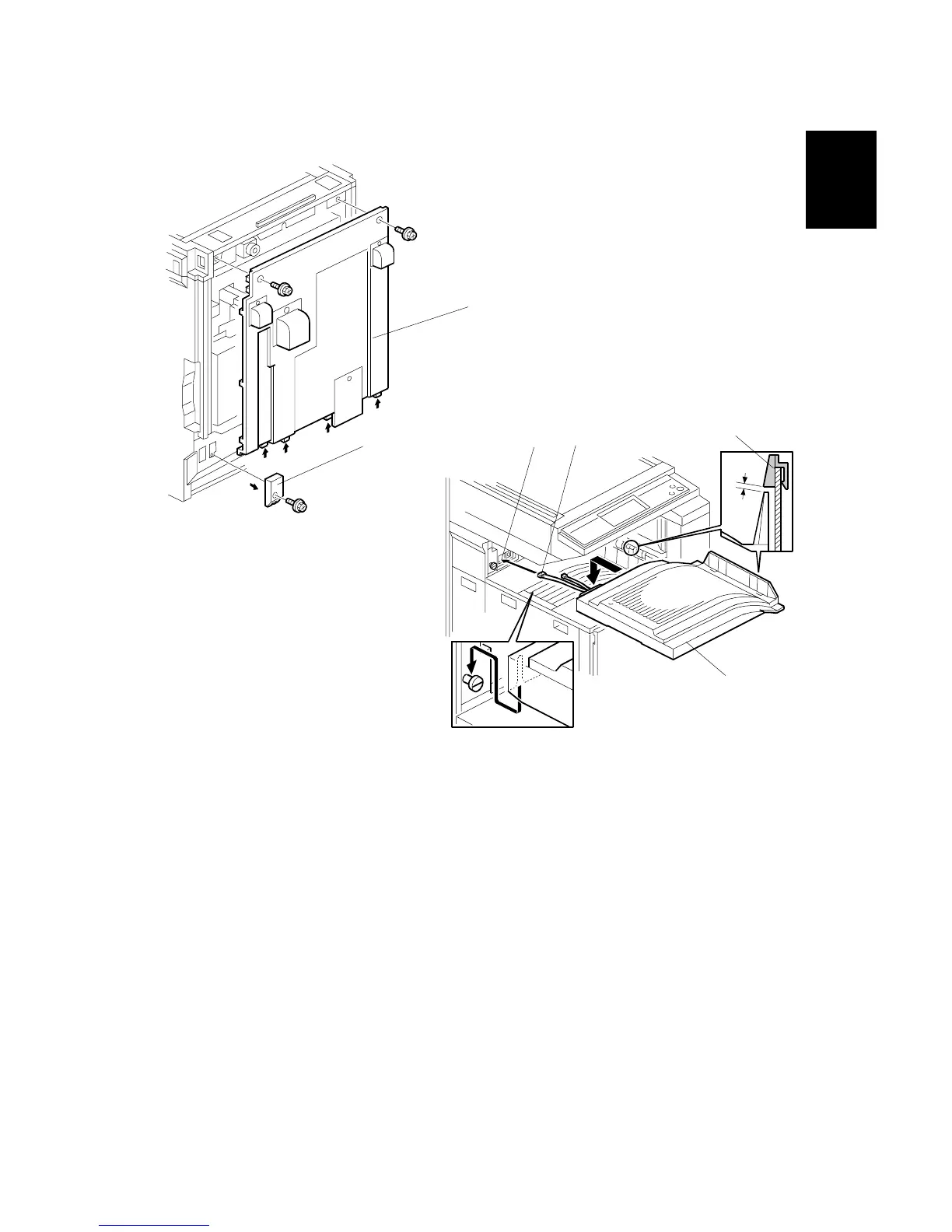

5. Remove the connector cover [A] (! x 1).
6. Remove the rear cover [B] (! x2).
7. Pass the harnesses [C] through the opening [D], and install the shift tray unit
[E], as shown.
NOTE: 1) Set the shift tray on the stepped screw.
2) The shift tray must be installed under the paper guides [F] installed
in step 4.
B510I103.WMF
B510I211.WMF
[D]
[C]
[B]
[E]
[F]
[A]
