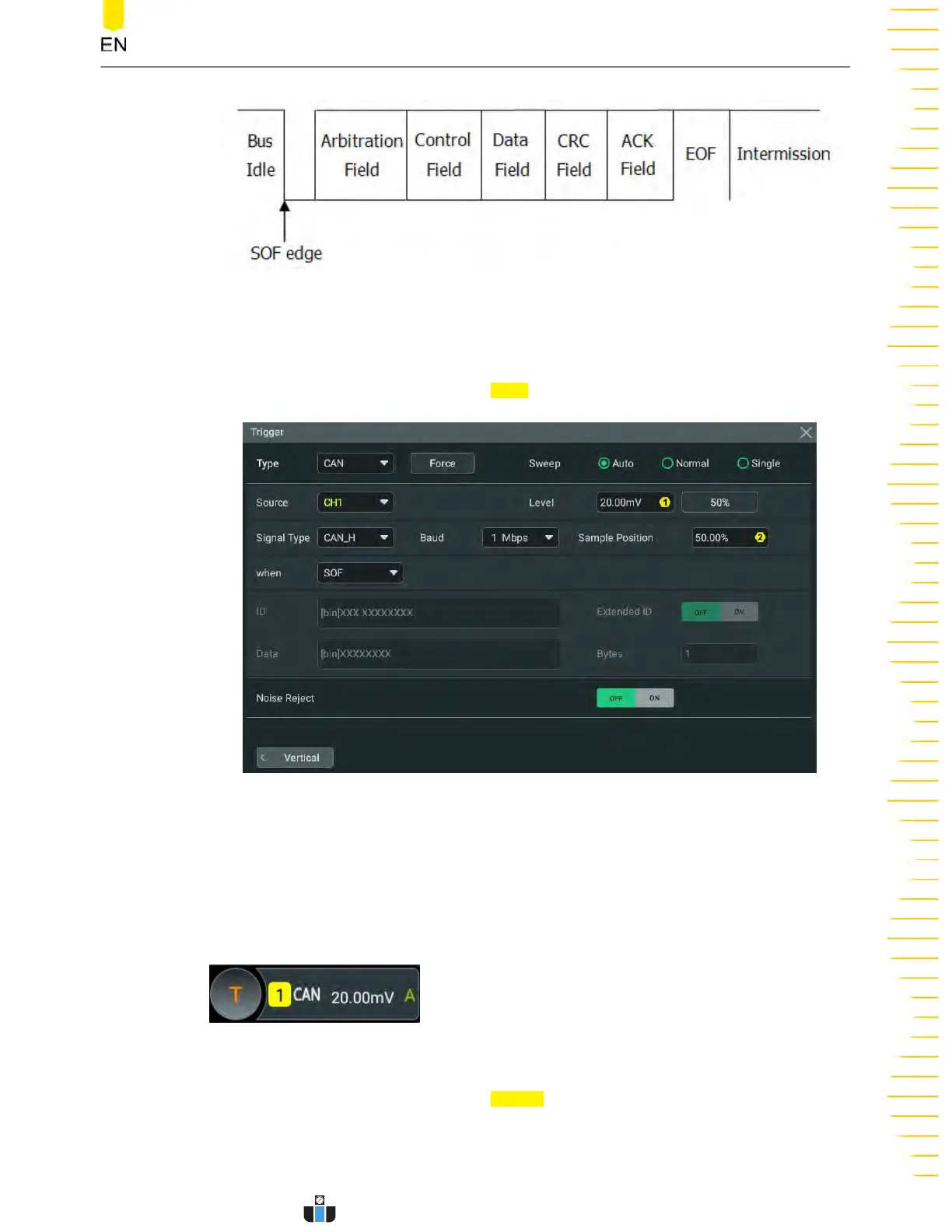

Figure 8.32 Data Frame Format of the CAN Bus

igger Type

Click or tap the drop-down button of

Type to select "CAN".

Figure 8.33 CAN Trigger Setting Menu

Aft

er a trigger type is selected, the current trigger setting information (including

trigger type, trigger source, and trigger level) is displayed in the trigger information

label at the top of the screen, as shown in the figure below. The information will

change based on the trigger settings.

Source Selection

Click or tap the drop-down butt

on of

Source to select CH1-CH4. For details, refer to

descriptions in

Trigger Source

The selected trigger source is indicated in the trigger

information label at the top of the screen.

Triggering the Oscilloscope

DHO1000 User Guide

109
