channel. Zero offset is defined as the offset of the crossing point of the waveform and

trigger level line r

elative to trigger position, as shown in the figure below.

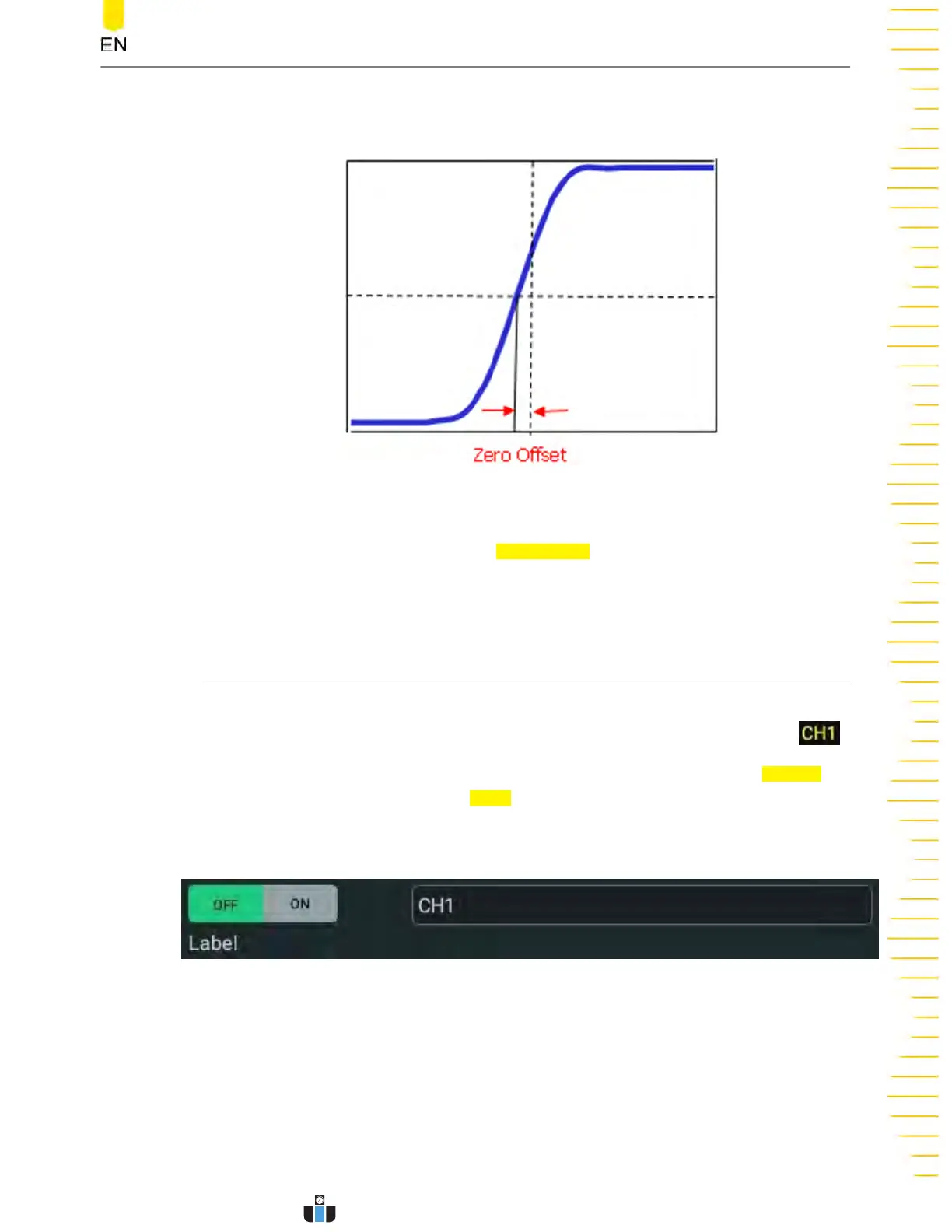

Figure 5.4 Zero Offset

In the "Ver

tical" menu, click or tap the

Ch-Ch Skew input field to set the channel-t

channel skew time. The available range is from -100 ns to 100 ns, and the default is

0.00 s.

5.12 To Turn the Channel Label Display On/Off

The instrument uses the channel number to mark the corresponding channel by

default. For ease of use, y

ou can also set a label for each channel. For example,

Click or tap the channel status label at the bottom o

f the screen. Then the

Vertical

menu is displayed. Click or tap the Label on/off swit

ch to turn the label display on or

off. You can also click or tap the label input field to input a specific name for the

channel label with the pop-up keypad.

For how to use the keypad, please refer to descriptions in

Parameter Setting Method

Vertical System
