Trigger Level
Click or tap the Level input field to set the trigger lev
el with the pop-up numeric
keypad. You can also use the front-panel trigger level knob or the corresponding
multipurpose knob to set the trigger level. For details, refer to descriptions in
Trigger
Level
. The current trigger level is displayed in the trigger information label at the top
of the screen.
8.7.17 LIN Trigger
This series can trigger on the sync field of LIN signal, and can also trigger on the
specified identifier, data, or frame.
The data frame for
mat of the LIN bus is as shown in the figure below.

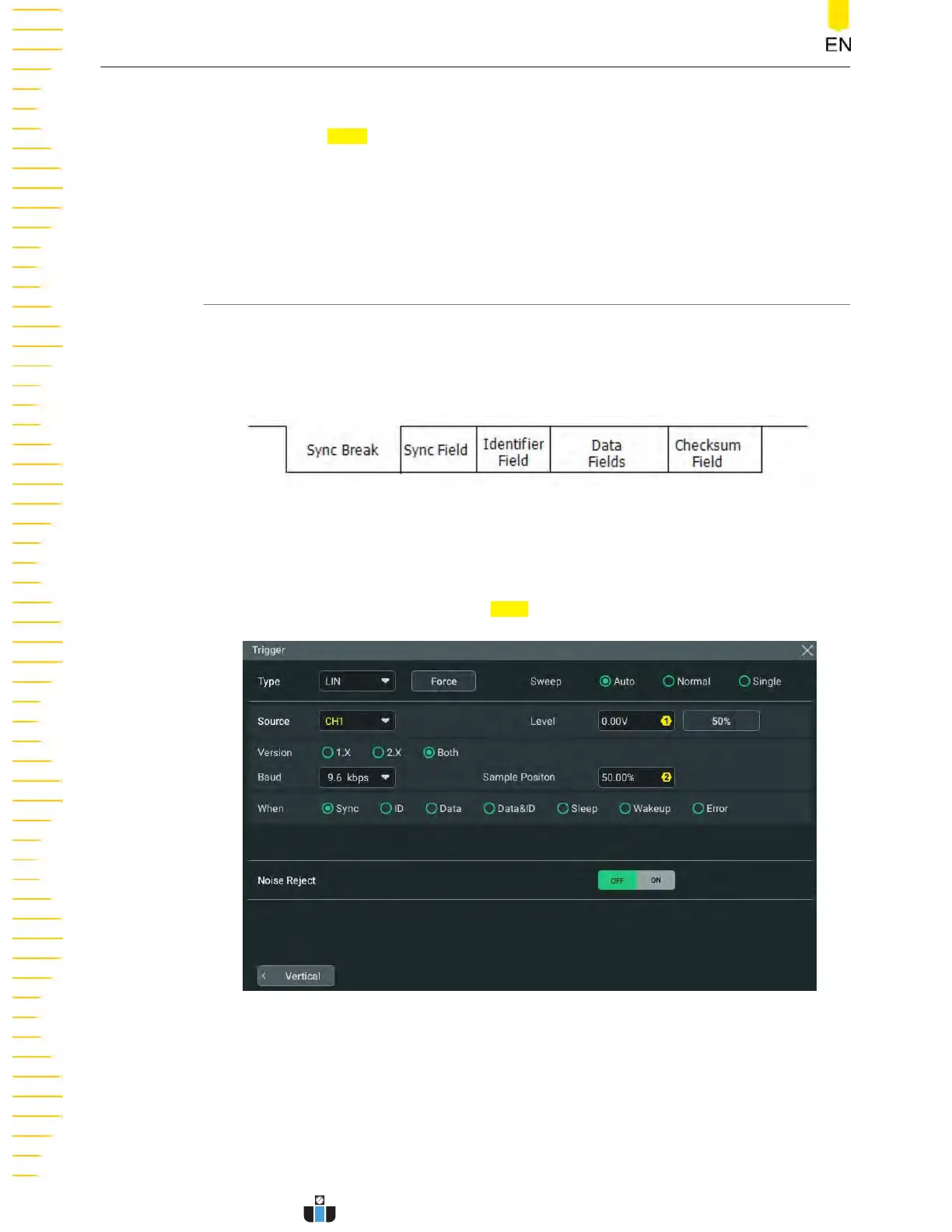

Figure 8.35 Data Frame Format of the LIN Bus
Tr
igger Type
Click or tap the drop-down button of
Type to select "LIN".
Figure 8.36 LIN Trigger Setting Menu
Aft
er a trigger type is selected, the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
Triggering the Oscilloscope
DHO1000 User Guide
112
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
