6
Horizontal System
You can access the Horizontal menu in the following ways.
• Press the fr
ont-panel
key to enter the Horizontal menu.
• Click or tap the channel status label at the bottom o
f the screen. Then the
Vertical menu is displayed. Click or tap the Acquisition butt
on to enter the
Horizontal menu.
• Click or tap the horizontal time base label ("H" icon), acquisition label ("A" icon),
or horizontal position label ("D" icon) at the t
op of the screen to enter the
Horizontal menu.

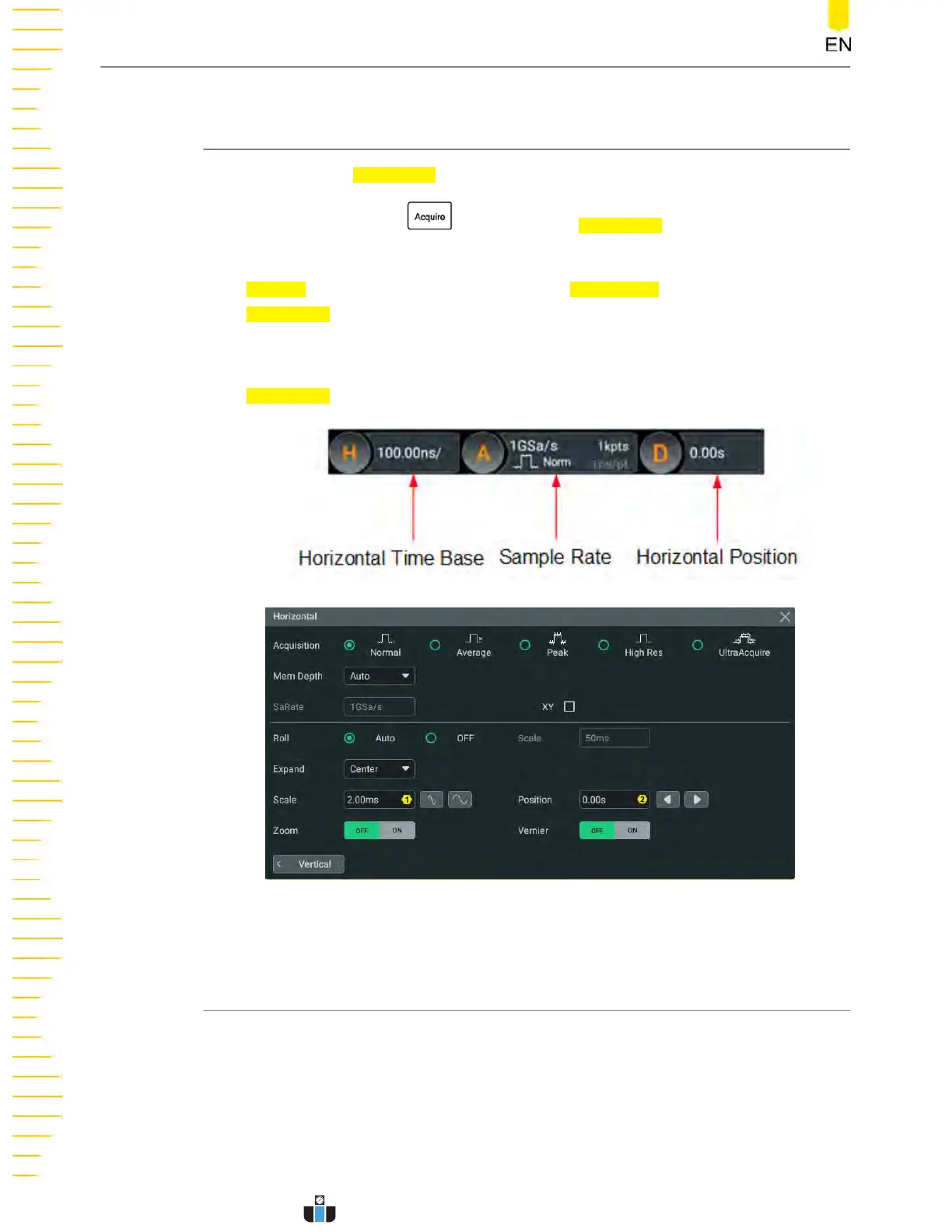

Figure 6.1 Horizontal Menu
6.1 To Adjust the Horizontal Time Base
Horizontal time base, also called the horizontal scale, refers to the time of each grid in
the horizontal direction o
f the screen. It is usually expressed in s/div. The range of the
horizontal time base is from 2.00 ns/div to 1.00 ks/div.
While you change the horizontal time base, the displayed waveforms of all channels
are expanded or compressed horizontally relative to the selected time reference
Horizontal System
DHO1000 User Guide
50
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
