16
Waveform Recording and Playing
Waveform recording/playing function can play the recorded waveforms, enabling you
to analyze the wav
eforms better.
You can enter the "Record" menu in the following ways.
• Click or tap the function navigation icon
and then select Record to enter the
"R
ecord" menu.
• Click or tap
Record on the toolbar to enter the "Record" menu.
• Pr
ess the front-panel
key and select Record in the pop-up "Analyse"
menu t
o enter the "Record" menu.

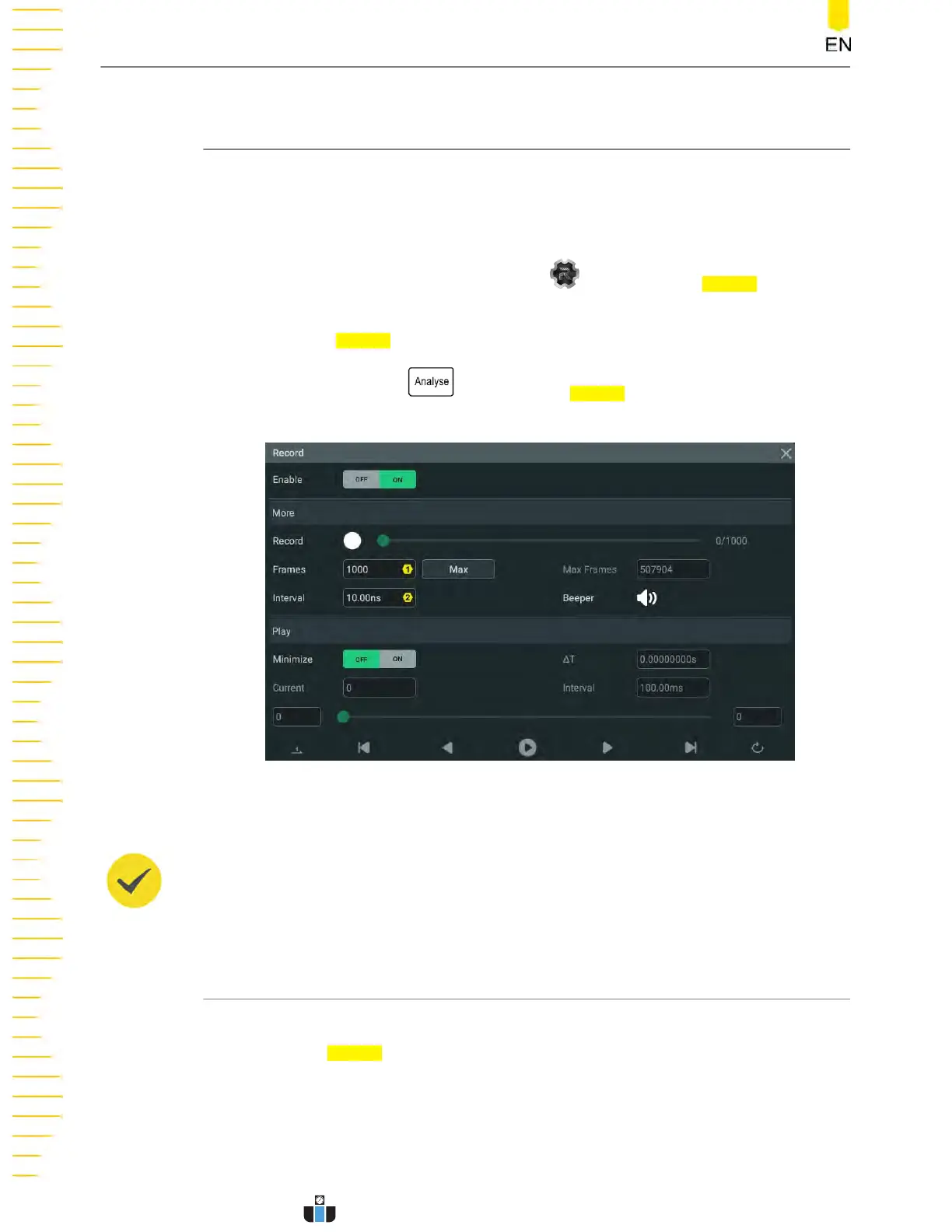

Figure 16.1 "Record" Menu
TIP
When the acquisition mode is set to
UltraAcquire
, the waveform recording/playing function is
not available. You can view waveform segments using
To navigate segments
.
16.1 Common Settings
Waveform Recording
Click or tap the Record on/off swit
ch to enable or disable the waveform recording
function. Before recording the waveform, you can refer to descriptions in
Record
Options
to set the waveform recording parameters.
Waveform Recording and Playing
DHO1000 User Guide
200
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
