Search and Navigation
The Search function allows you to quick find and mark the event of interest and then
go to the specified ev
ent in the marktable by navigating search events. The search
types include edge and pulse.
The Navigation function allows you to quickly view and navigate waveforms. You can
navigate time, search events, and segments.
17.1 Search
This function allows you to search for the specified edge and pulse width trigger
events. Found sear
ch events are marked with small inverted triangles (
) at the top
of the graticule. Click or tap > Search to enter the "Search" menu. You can also
click or tap Search in the "Navigation" menu (only when the navigation mode is set t
o
"Search Event") to enter the "Search" menu, as shown in the figure below.

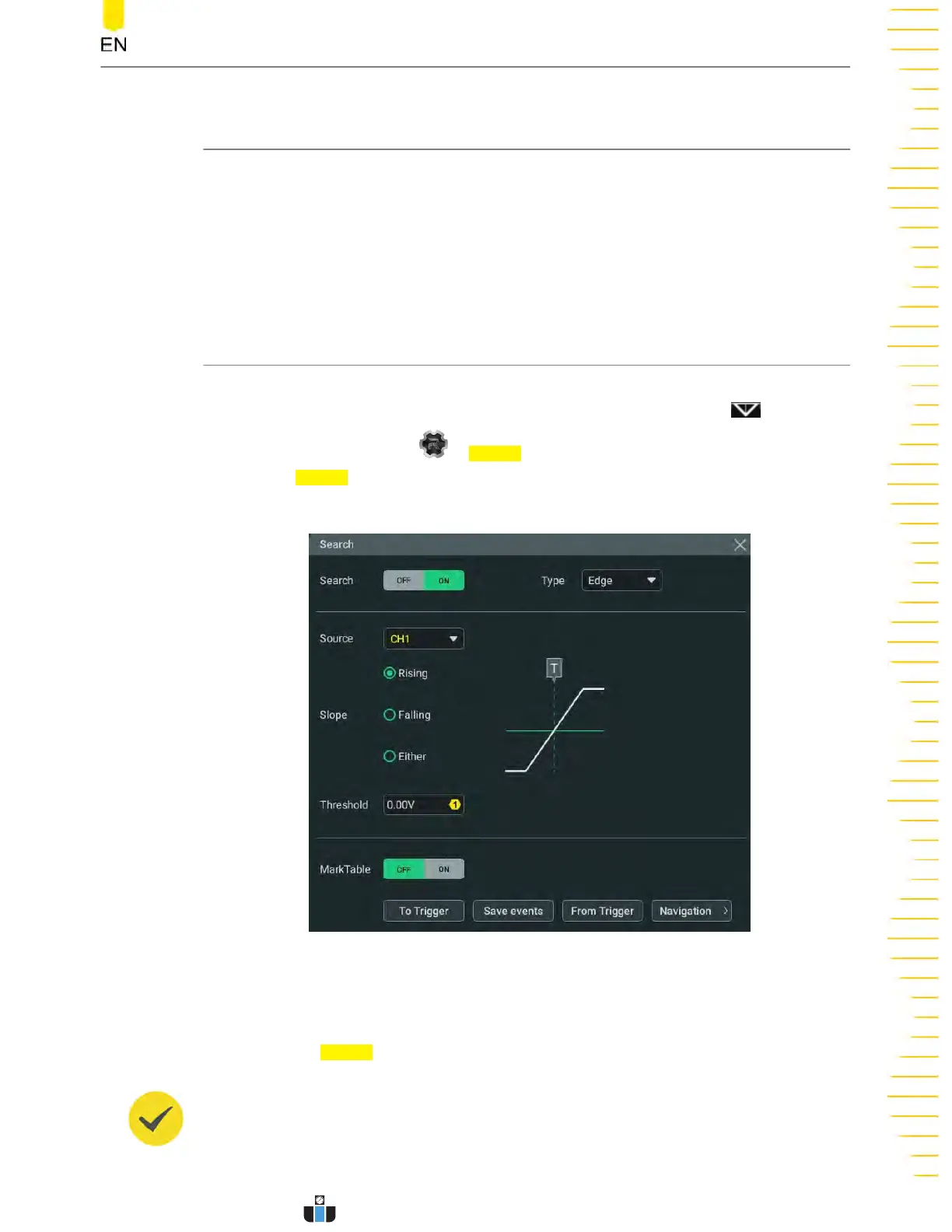

Figure 17.1 Search Menu
1.
Search On/Off
Click or tap Search on /off swit
ch to enable or disable the search function.
TIP
Enabling the search function aut
omatically turns on the
Zoom Mode (Delayed Sweep) .
Search and Navigation
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
205
