14.4.3 Display-related Settings

In Decode menu, set the following display-relat

ed parameters.

Set the Display Format

Click or tap the drop-down button of

Format to select the display format of the bus

data and ev

ent table. The available options include "Hex", "Dec", "Bin", and "ASCII".

Set the Label Display

Click or tap the

Label on/off swit

ch to enable or disable the label display of the

decoding bus. When enabled, the bus label will be displayed at the upper-left side of

the bus (when the bus display is enabled). The label shows the current bus type.

14.4.4 Event Table

Open or Close the Event Table

Click or tap the Event Table on/off swit

ch to enable or disable the display of the

event table. When enabled, the event table is displayed as shown in the figure below.

You can also click or tap the icon

at the upper-right corner of the table to close

the event table.

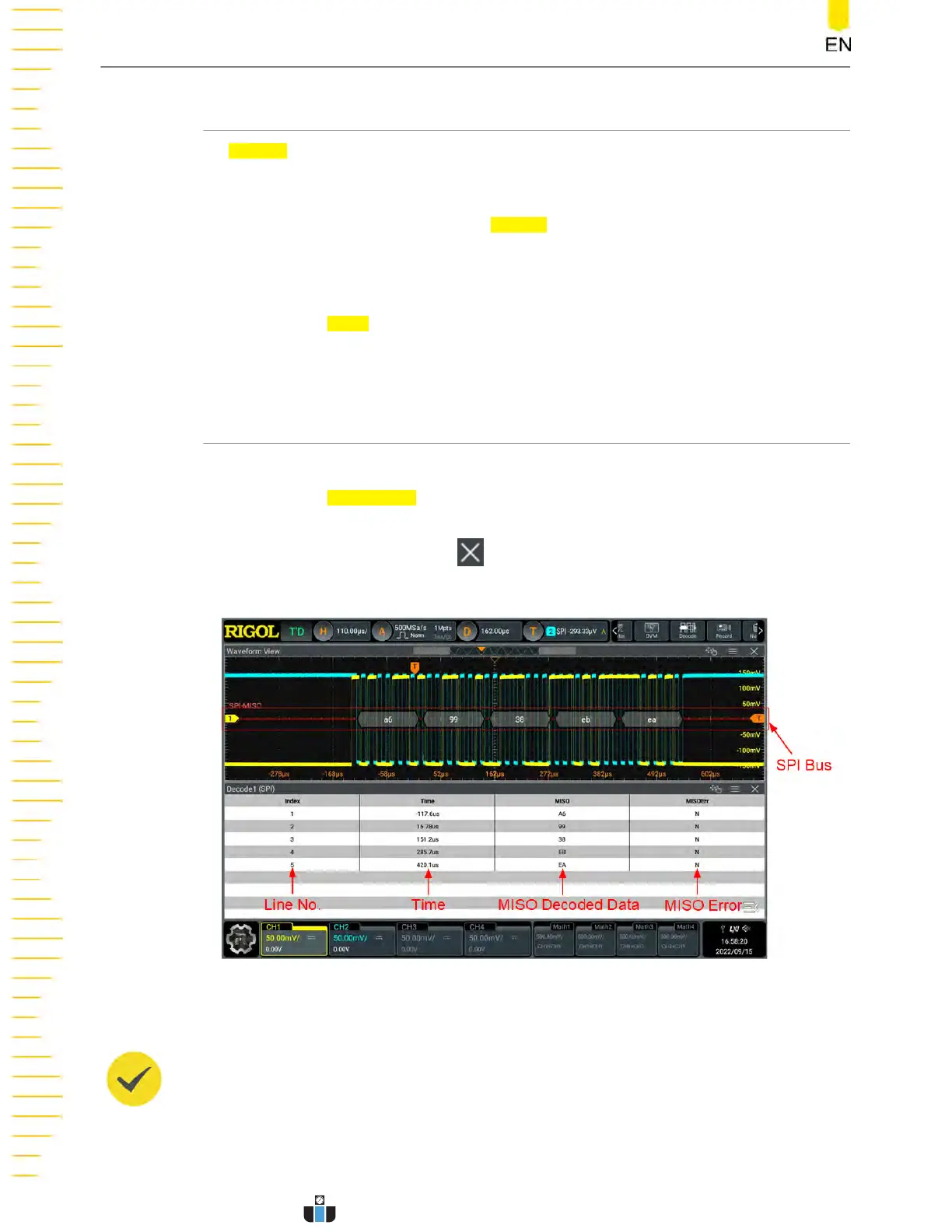

Figure 14.12 SPI Decoding Event Table

TIP

• When you adjust the horizontal time b

ase, the waveform displayed on the screen will also

change, and the total number of lines containing the decoding information in the event

table will also be changed.

Protocol Decoding

DHO1000 User Guide

190
