Rigol DHO1000 Series User Manual

8.7.2 Pulse Width Trigger
Pulse width triggering sets the oscilloscope to trigger on the positive or negative
pulse of a specified width. In this mode, the oscilloscope will trigger when the pulse
width o
f the input signal satisfies the specified pulse width condition.
In this oscilloscope, positive pulse width is defined as the time difference between the
two crossing points of the trigger level and positive pulse; negative pulse width is
defined as the time difference between the two crossing points of the trigger level
and negative pulse, as shown in the figure below.
Trigger Level
+Width
A
B
-Width
A
B
Trigger Level

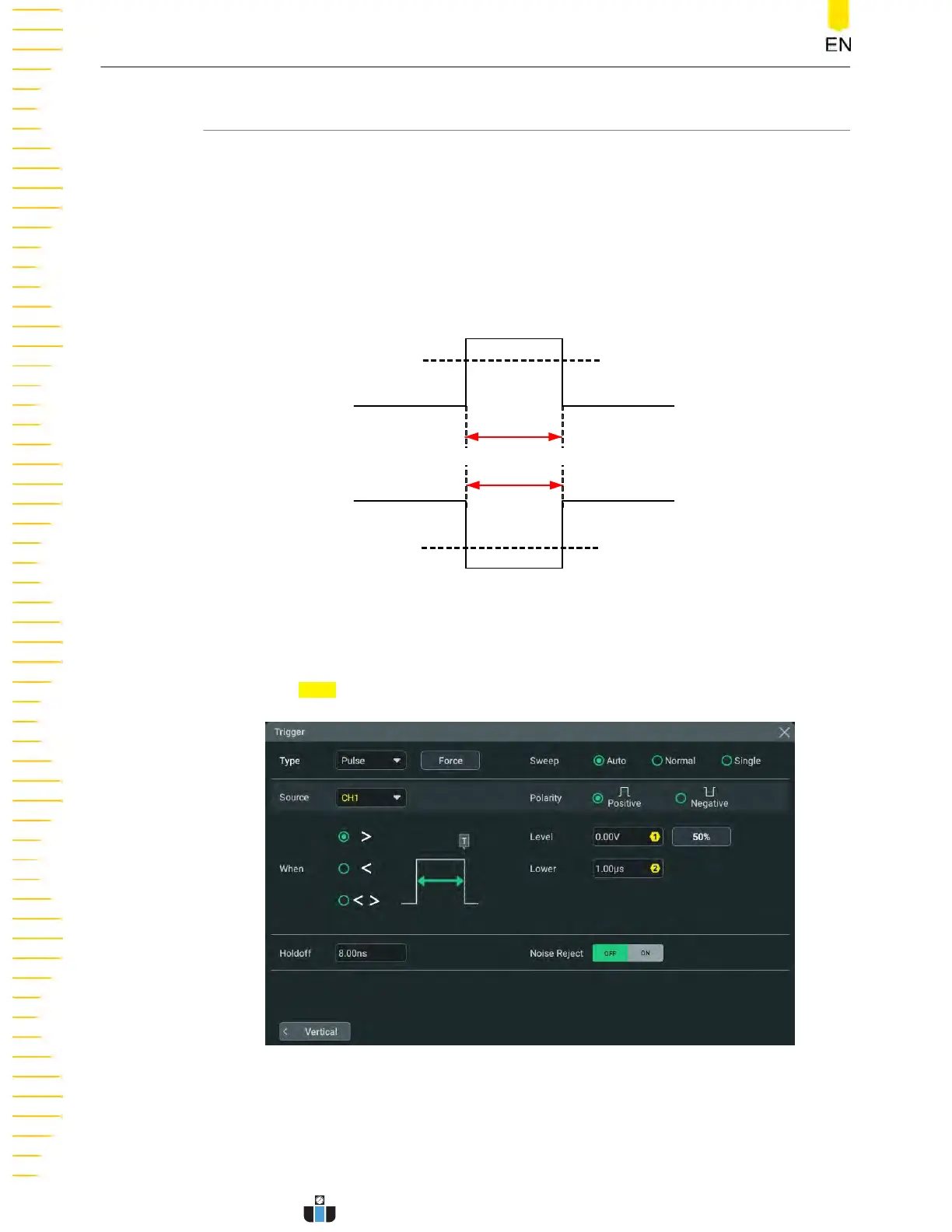

Figure 8.4 Positive/Negative Pulse Width
Trigger Type
Click or tap Type drop-down button to select "Pulse".
Figure 8.5 Pulse Width Trigger Setting Menu
Aft
er a trigger type is selected, the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
Triggering the Oscilloscope
DHO1000 User Guide
72
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
