Digital Voltmeter (DVM) and Frequency
Counter
This series oscilloscope provides a built-in digital voltmeter (DVM) and frequency
counter
, which enable you to perform more accurate measurements, improving user
experience in counter and frequency measurement.
11.1 Digital Voltmeter (DVM)
The built-in DVM of this oscilloscope provides 4-digit voltage measurements on any
analog channel. DVM measurements ar
e asynchronous from the oscilloscope's
acquisition system and are always acquiring. You can enable the DVM measurements
in the following ways.
• Click or tap the function navigation icon
> DVM to enable DVM
measur
ements.
• Click or tap the
DVM button on the toolbar to enable DVM measurements.
• Pr
ess the front-panel
key and then select DVM in the displayed "Analyse
"
menu to enable the DVM measurements.

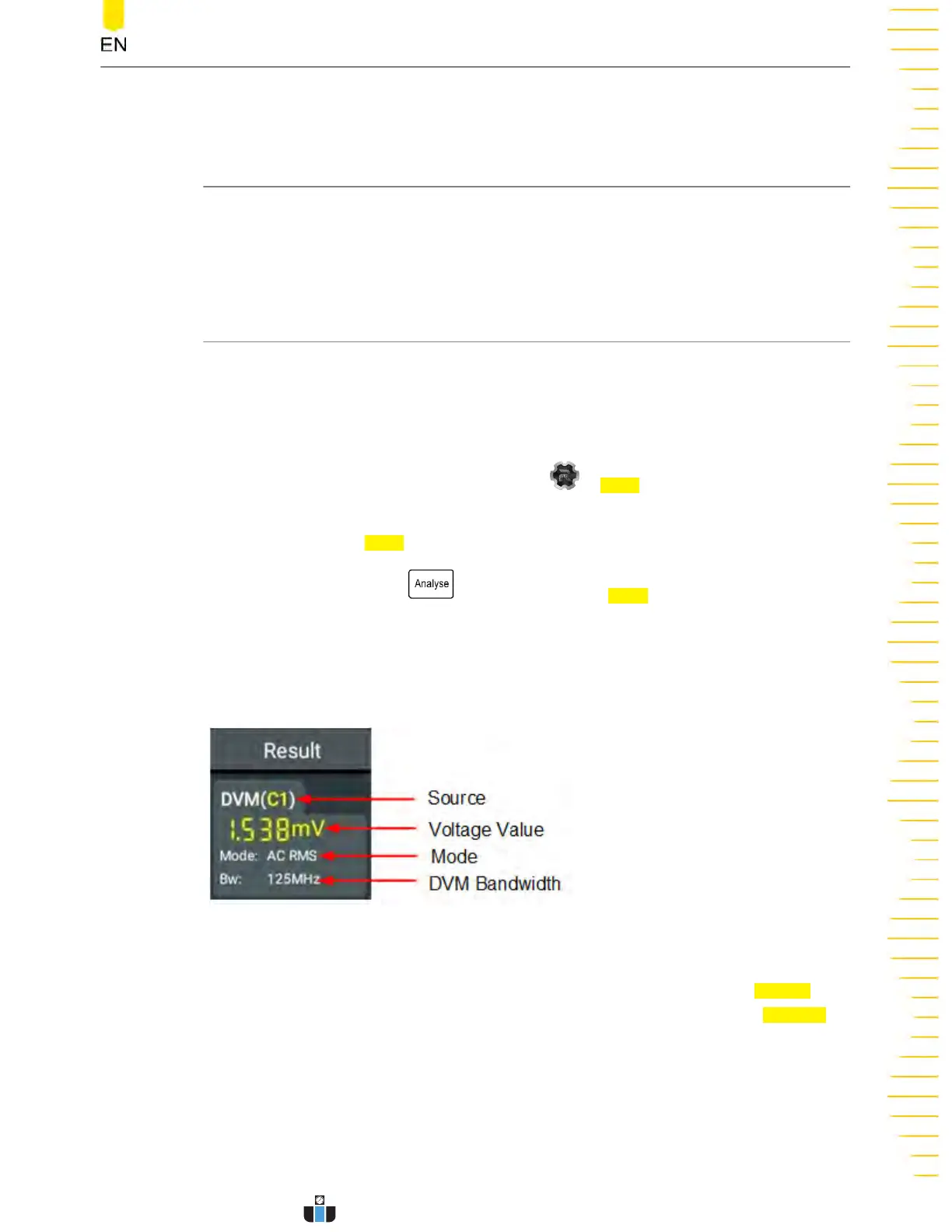

After the DVM measurements are enabled, the "DVM" label displaying the current
voltage value and voltage mode appears in the "Result" bar at the right section of the
screen, as shown in the figure below.
The voltage value in the label shows the measurement extrema over the last 3
seconds.
Click or tap the "DVM" label and then a window is display
ed. Click or tap Setting
to
ent
er the DVM setting menu as shown in
Figure 11.1 . You can click or tap
Remove to
disable DVM measur
ements.
Digital Voltmeter (DVM) and Frequency Counter
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
161
