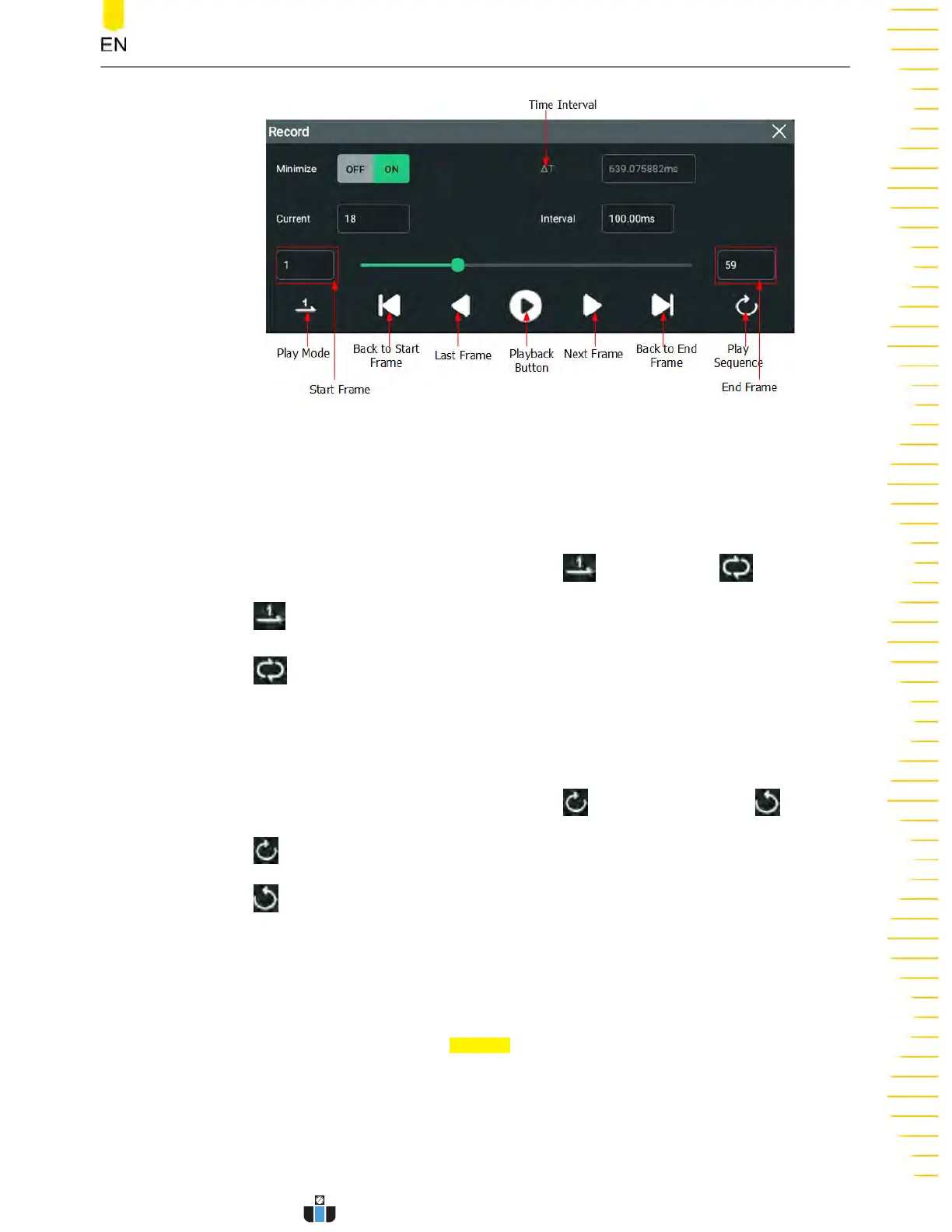

Figure 16.2 Minimized "Play" Menu

Before playing the wav

eforms, set the following parameters.

1. Play Mode

You can play the waveforms in single mode (

) or cycle mode ( ).

- : plays from the start frame to the end frame, and then stops automatically.

- : plays from the start frame to the end frame, then such playback operation

is r

epeat

ed until you stop it manually.

2. Play Sequence

You can play back the waveforms clockwise (

) or counterclockwise ( ).

- : plays from the start frame to the end frame.

- : plays from the end frame to the start frame.

3. Int

erval

The playback interval indicates the time interval between the frames during the

playing process.

Click or tap the input field of

Interval, and then use the pop-up numeric k

eyp

ad to

set the timeout value. You can also use the corresponding multipurpose knob to

set the value. The available range is from 1 ms to 1 s.

4. Start Frame

Waveform Recording and Playing

DHO1000 User Guide

203
