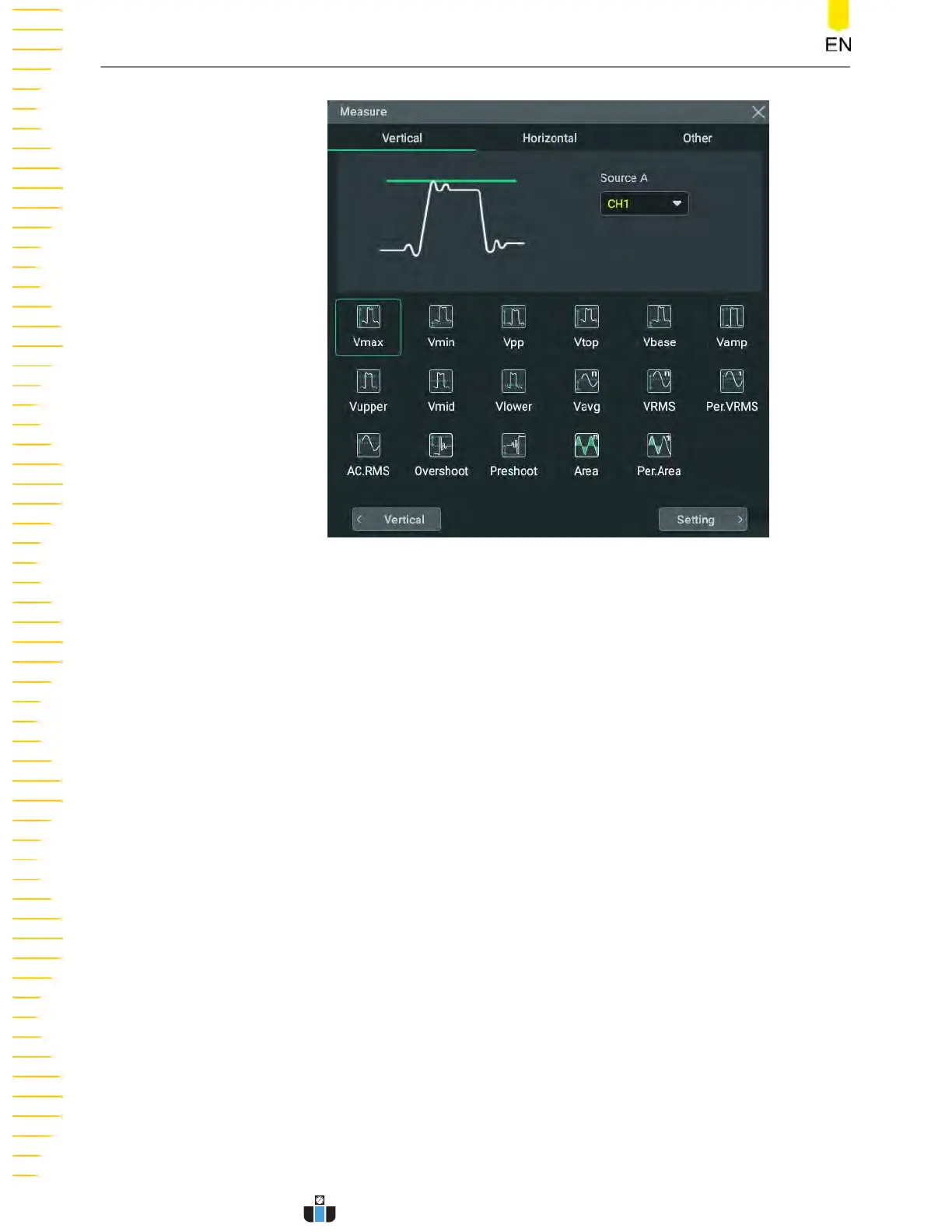

Figure 10.4 Vertical Measurement Items

• Hor

izontal: Period, Frequency, Rise Time, Fall Time, +Width, -Width, +Duty, -

Duty, Positive Pulse Count, Negative Pulse Count, Rising Edge Count, Falling

Edge Count, Tvmax, Tvmin, +Slew Rate, and -Slew Rate.

Measurements

DHO1000 User Guide

146
