Rigol DHO1000 Series User Manual

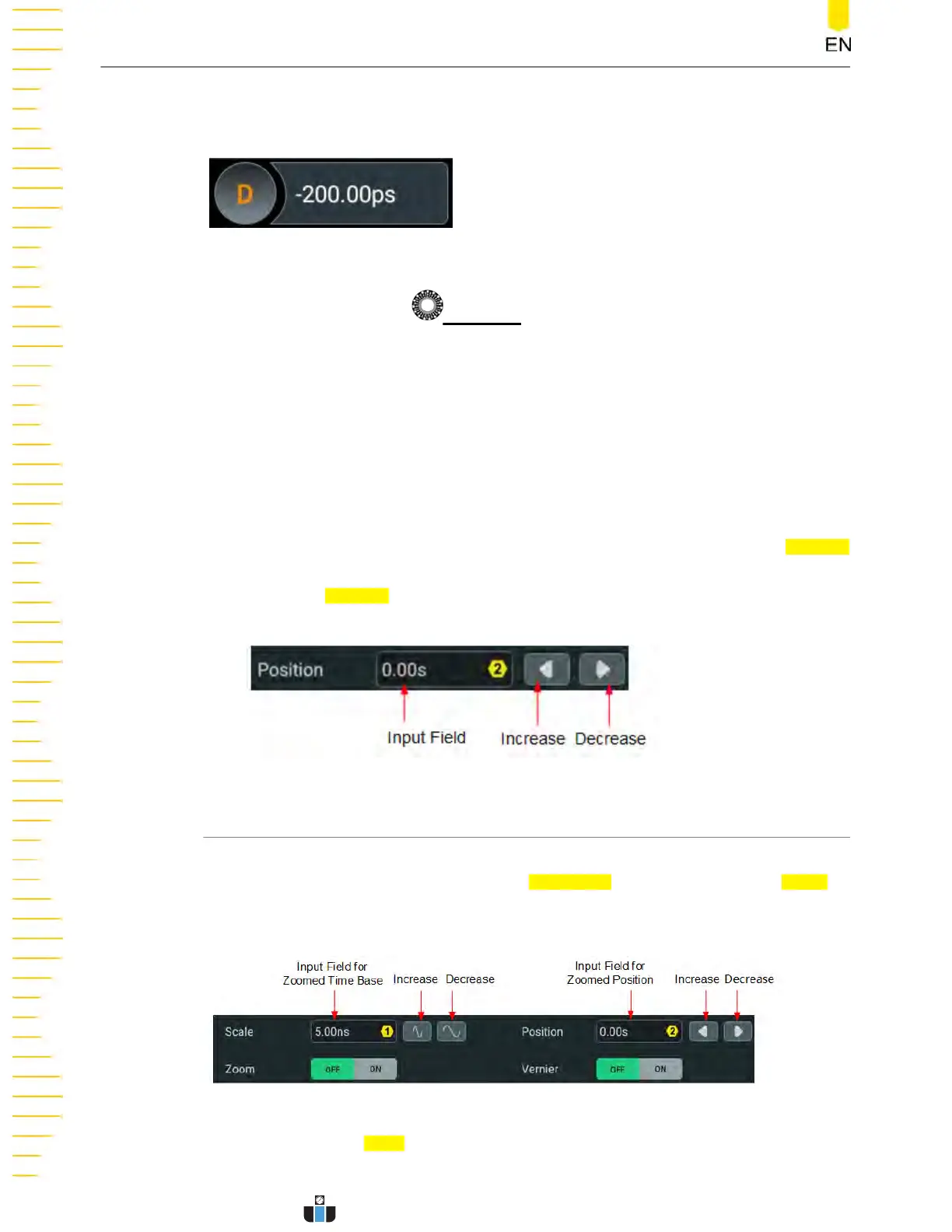

the horizontal position label ("D" icon) changes accordingly, as shown in the figure
below.
You can adjust the horizontal position in the following ways.
• R
otat
e the Horizontal
POSITION knob at the right section of the fr
ont panel
to adjust the horizontal position within the adjustable range. Rotate this knob
clockwise to reduce the horizontal position or counterclockwise to increase the
horizontal position. Pressing the knob can quickly reset the horizontal position
(set the horizontal position to 0).
• Enable the touch screen function, and then adjust the horizontal position with
the drag gesture. For details, refer to Drag .
• In the "Horizontal" menu, use the corresponding multipurpose knob to set the
horizontal position or use the icons at the right side of the input field of
Position
to incr
ease or decrease the value, as shown in the figure below. You can also click
or tap the
Position input field t
o input a specific v
alue with the pop-up numeric
keypad.
6.3 Zoom Mode (Delayed Sweep)
Zoom (delayed sweep mode) can be used to horizontally expand a length of
wavefor
m to view waveform details. In the
Horizontal menu, click or tap the Zoom
on/off swit
ch to enable or disable the delayed sweep function. When it is enabled,
you can set the scale and position in Zoom mode.
• Zoomed Scale: R
otate the corresponding multipurpose knob or use the icons at
the right of the
Scale input field to incr
ease or decrease the time base for the
Horizontal System
DHO1000 User Guide
52
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
