Rigol DHO1000 Series User Manual

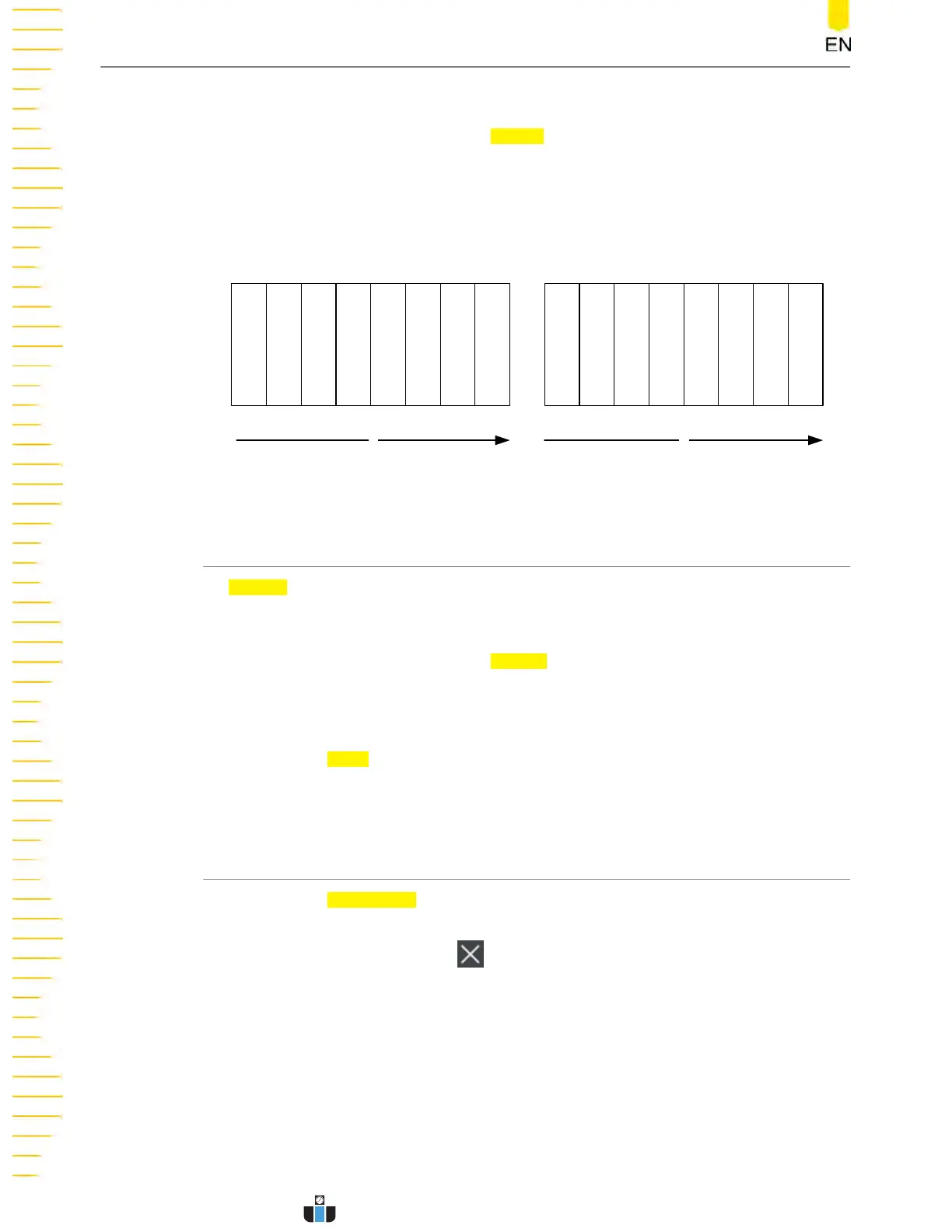

Endian
Click or tap the drop-down butt
on of
Endian to select the desired endian.
•
LSB: indicates Least Significant Bit transmission sequence, i.e. the lowest bit of
the data is transmitted first.
• MSB: indicates Most Significant Bit transmission sequence, i.e. the highest bit of
the data is transmitted first.
bit0 bit1 bit2 bit3 bit4 bit5 bit6 bit7 bit7 bit6 bit5 bit4 bit3 bit2 bit1 bit0
t
t
LSB MSB
14.2.3 Display-related Settings
In Decode menu, set the following display-r
elat
ed parameters.
Set the Display Format
Click or tap the drop-down button of
Format t
o select the display format of the bus
data and ev
ent table. The available options include "Hex", "Dec", "Bin", and "ASCII".
Set the Label Display
Click or tap the
Label on/o
ff swit
ch to enable or disable the label display of the
decoding bus. When enabled, the bus label will be displayed at the upper-left side of
the bus (when the bus display is enabled). The label shows the current bus type.
14.2.4 Event Table
Click or tap the Event Table on/o
ff swit
ch to enable or disable the display of the
event table. When enabled, the event table is displayed as shown in the figure below.
You can also click or tap the icon
at the upper-right corner of the table to close
the ev
ent table.
Protocol Decoding
DHO1000 User Guide
182
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
