4.3.8 Probe Compensation

When used for the first time, the oscilloscope probe must be compensated to match

the input characteristics o

f the oscilloscope channel to which it is connected. A non-

compensated or poorly compensated probes can introduce measurement inaccuracy

or errors. The compensation procedure is as follows:

1. Perform step 1, 2, 3, and 4 in

Function Inspection

2. Check the displayed waveforms and compare them with waveforms shown in the

figure below.

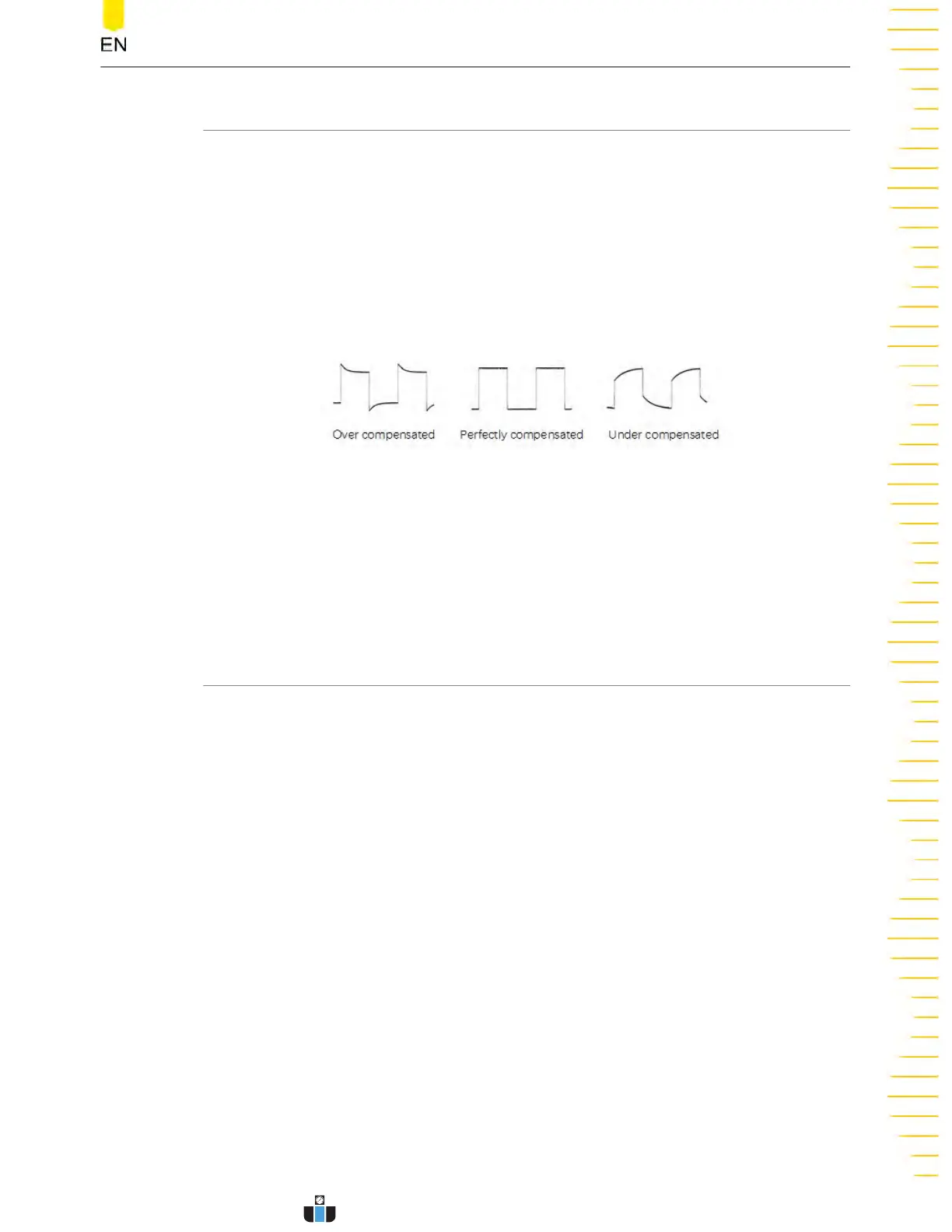

Figure 4.9 Probe Compensation

3. Use the probe compensation adjustment t

ool provided in the accessories to adjust

the low-frequency compensation adjustment hole on the probe until the displayed

waveform is consistent with the "Perfectly compensated" waveform shown in the

figure above.

4.4 Product Overview

The following content provides a description of the front and rear panels as well as

the user inter

face of the DHO1000 series by taking 4-channel model DHO1104 as an

example.
