Grid
For setting methods, refer t
o the descriptions in To Set the Screen Grid .
Parameter Setting
• When the operator is "Intg", click or tap the
Offset input field and use the pop-
up numeric keyp
ad to set the DC offset calibration factor of the input signal. You
can also use the corresponding multipurpose knob to set the value.
• When the operator is "Diff", click or tap
Smooth input field and use the pop-up
numeric keyp
ad to set the number of smooth times for the differential
operation. You can also use the corresponding multipurpose knob to set the
value.
9.3 FFT Operation
FFT (Fast Fourier Transform) is used to transform time-domain signals to frequency-
domain components (frequency spectrum). This oscilloscope pr
ovides FFT operation
function which enables you to observe the time-domain waveform and spectrum of
the signal at the same time. FFT operation can facilitate the following works:
• Measure harmonic components and distortion in the system;
• Display the characteristics of the noise in DC power;
• Analyze vibration.
In the
Math menu, click or tap the Operator drop-down butt
on to select
FFT to
access the menu as shown in
Figure 9.7 .

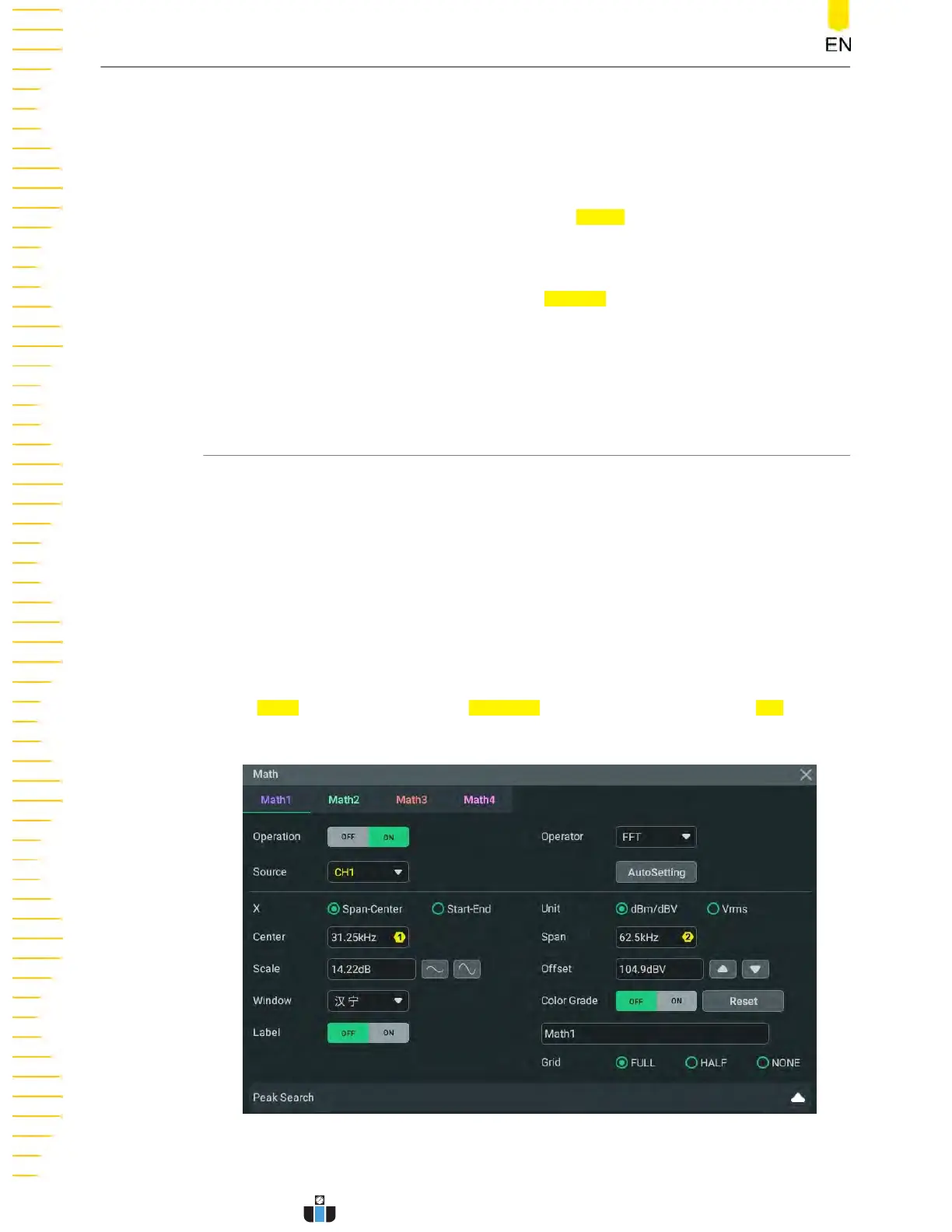

Figure 9.7 FFT Operation Menu
Math Operation
DHO1000 User Guide
124
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
