Rigol DHO1000 Series User Manual

• Overlay
Click or tap the Overlay on/off swit
ch to enable or disable the overwriting
function. When this function is enabled, the existing file in the specified file path
will be overwritten by the newly saved file that has the same filename as the
existing one.
Click or tap
Save, the current wav
eform file is saved based on the settings and the
storage menu is disabled.
TIP
When the quick action function is set to "Sav
e Wave" or "Save Group" with "Save Wave"
selected, you can press the front-panel
key to save the waveform.
19.2.3 Save Setup
In the Storage menu, click or tap the Save tab to enter the save operation menu. In
this menu, click or tap the dr
op-down button of
Choose to select "Save Setup" t
o
enter the "Save Setup" setting menu. Save the settings of the oscilloscope to the
internal or external memory in "*.stp" format. When loading, the stored settings can
be recalled.

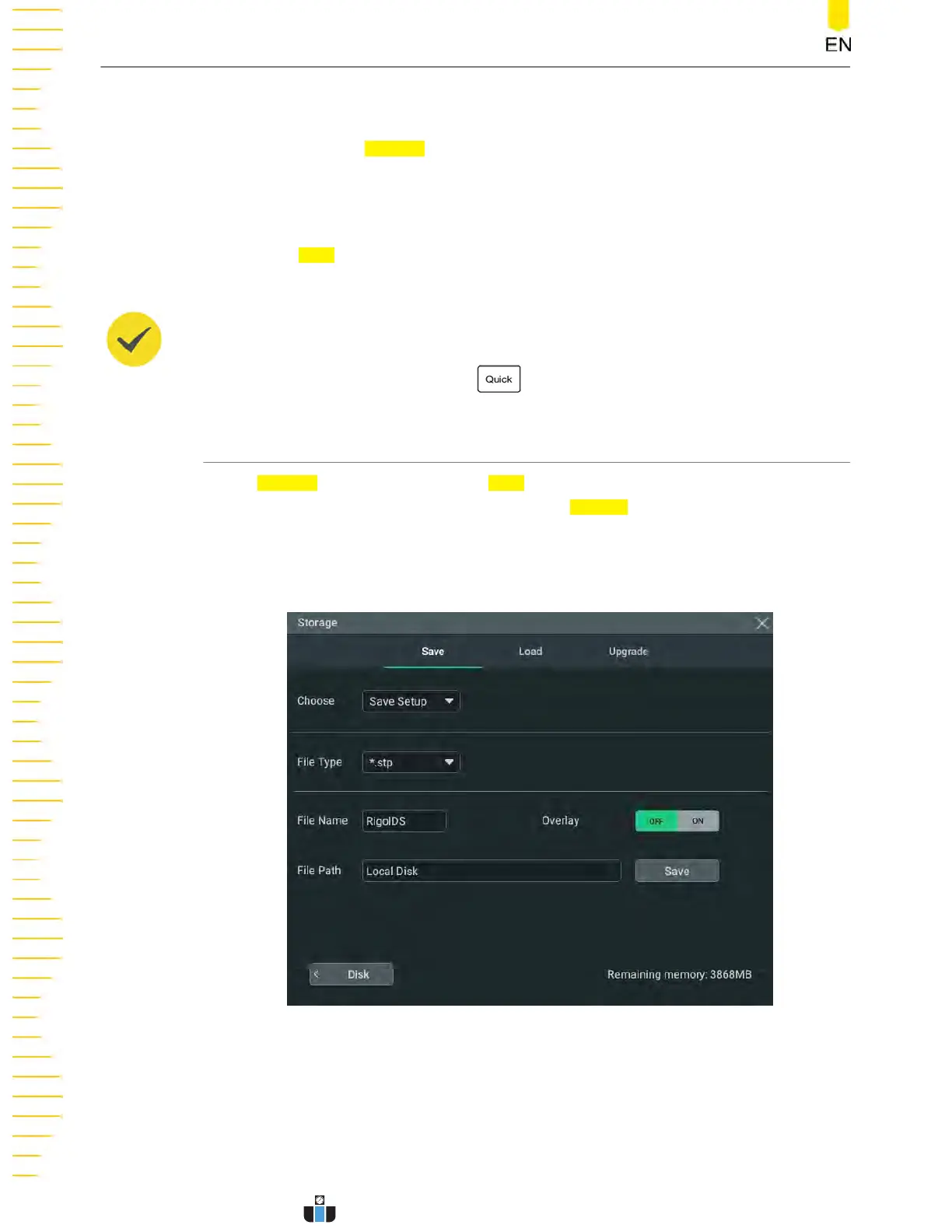

Figure 19.3 Setup Saving Setting Menu
Set the file saving paramet
ers
• Set the filename
Store and Load
DHO1000 User Guide
218
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
www.calcert.com sales@calcert.com1.888.610.7664
0
5
10
15
20
25
30

Rigol DHO1000 Series Specifications

General

Digital Channels	16 (Optional)
Vertical Resolution	12-bit
Memory Depth	50 Mpts (per channel)
Waveform Capture Rate	1, 000, 000 wfms/s
Interfaces	USB, LAN, HDMI
Input Impedance	1 MΩ ± 1%
Trigger Types	Edge, Pulse, Video, Slope, Window, Runt, Pattern
Protocol Decoding	I2C, SPI, UART, CAN, LIN
USB Ports	USB Host, USB Device
Analog Channels	4
