• In the "Search" menu, click or tap Navigation to access the menu.

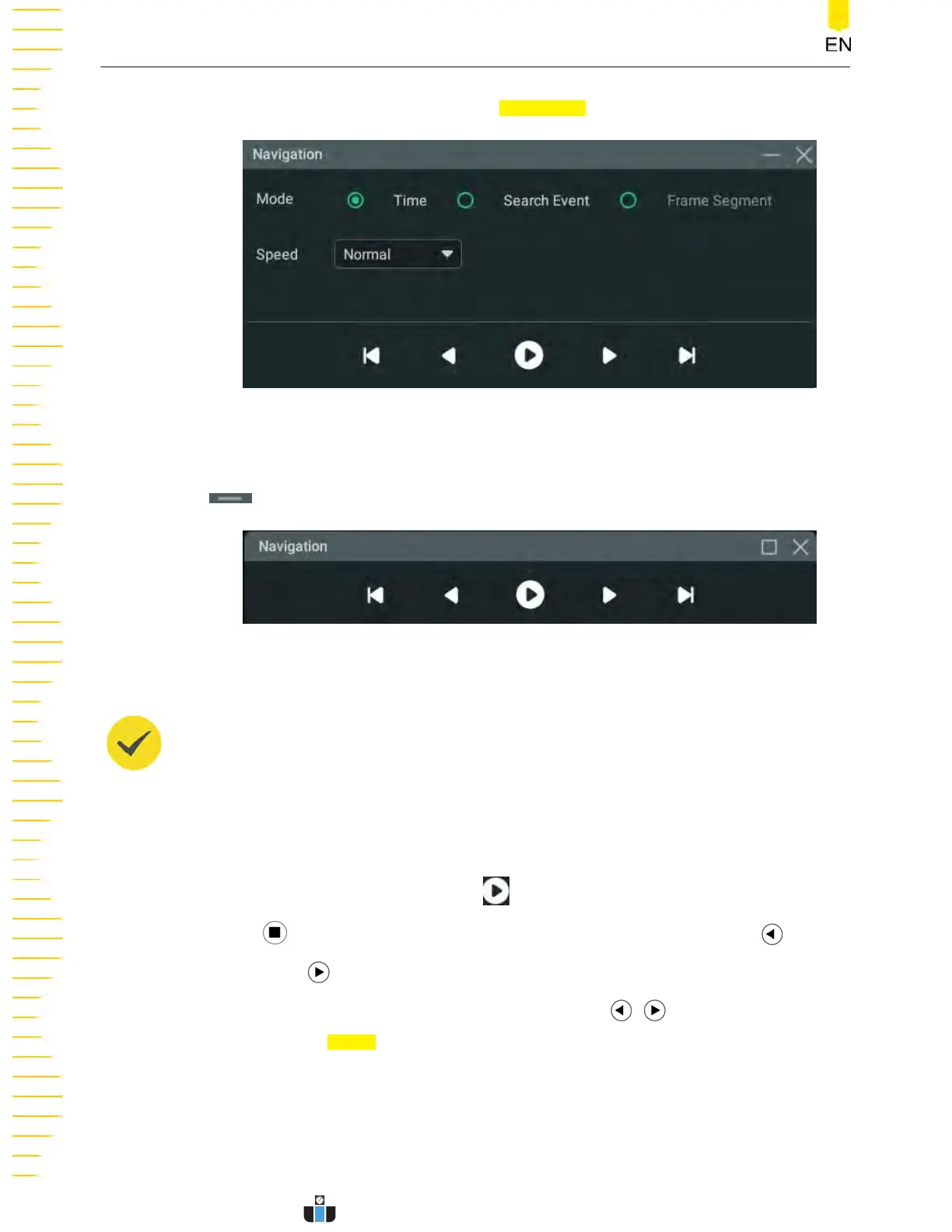

Figure 17.3 Navigation Menu
The normal Navigation menu is as shown in the figur
e above. You can click or tap
to minimize the menu (see the figure below) for a simplified interface.
Figure 17.4 Simplified Navigation Menu
TIP
The navigation function is available only when the oscilloscope is in "ST
OP" state (acquisition
stopped).
To navigate time
It is available only when in "Y
T" time mode. The menu is as shown in
Figure 17.3
.
When "Time" is selected, click or tap
in "Navigation" menu or press the front-
panel key to start/stop playout. During playout, you can click or tap to play
backwar
d or
to play forward. The playout automatically stops when it reaches the
left or right edges. When it st
ops, clicking or tapping
/ moves the waveform.
Click or tap the Speed drop-down button to select the speed level.
T
o navigate search events
After searching events using the Search function, you can select the "Search Event"
mode in Navigation menu to navigate to specific events in the marktable. Its setting
menu is as shown in
Figure 17.5
.
Search and Navigation
DHO1000 User Guide
208
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
