Rigol DHO1000 Series User Manual

9.4 Logic Operation
In the Math menu, click or tap the Operator drop-down butt
on to select the desired
math operation. The logic operations supported by this oscilloscope include A&&B,
A||B, A^B, and !A. After selecting the desired logic operation in the drop-down button
of
Operator, you can configur
e its settings for the selected logic operation type.

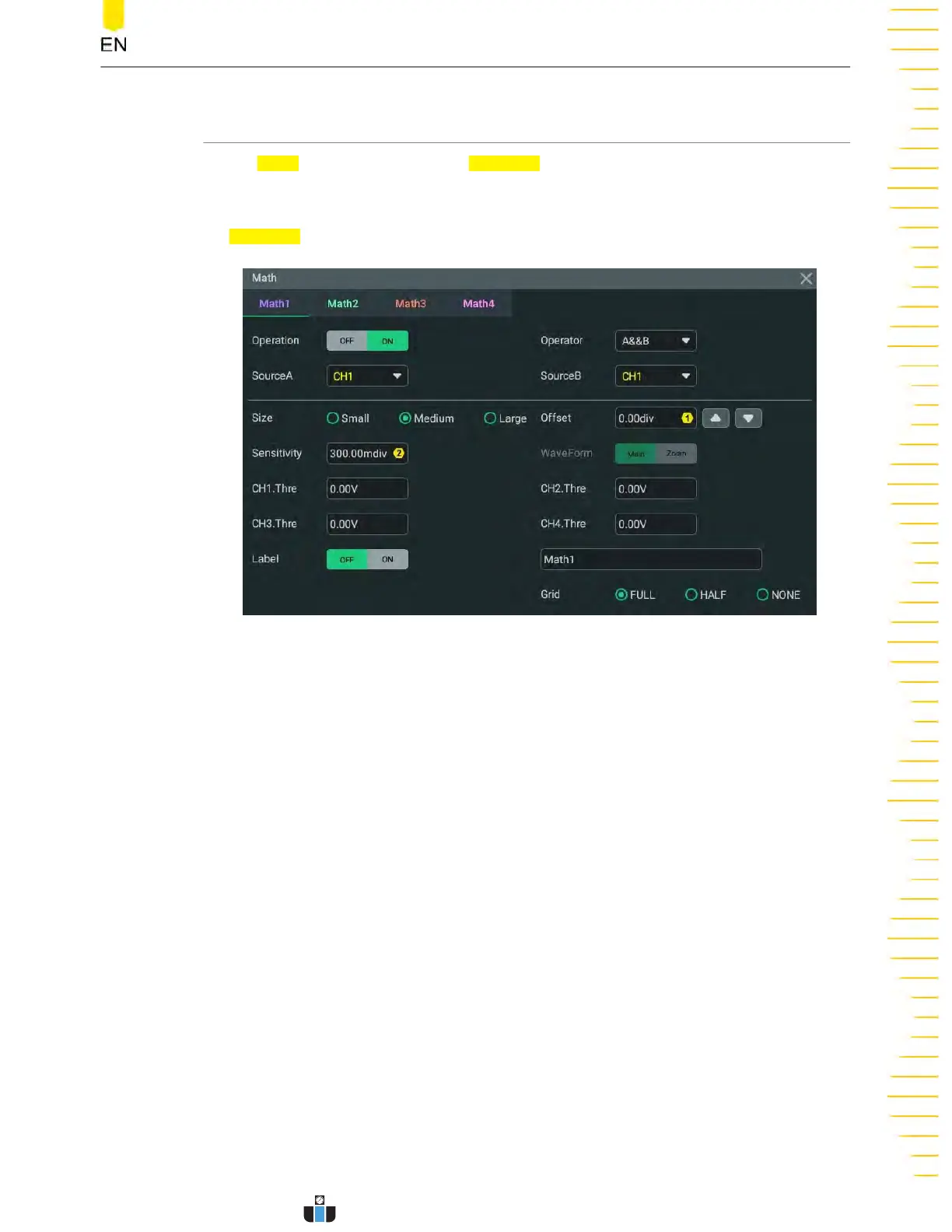

Figure 9.10 Logic Operation Menu
• A&&B: P
erforms logic "AND" operation on the waveform voltage values of the
specified sources point by point and displays the results. In operation, when the
voltage value of the source channel is greater than the threshold of the
corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The
results of logic AND operation of two binary bits are shown in
Table 9.2 Logic
Operation
.
• A||B: Performs logic "OR" operation on the waveform voltage values of the
specified sources point by point and displays the results. In operation, when the
voltage value of the source channel is greater than the threshold of the
corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The
results of logic OR operation of two binary bits are shown in
Table 9.2 Logic
Operation .
• A^B: Performs logic "XOR" operation on the waveform voltage values of the
specified sources point by point and displays the results. In operation, when the
voltage value of the source channel is greater than the threshold of the
corresponding channel, it is regarded as logic "1"; otherwise it is logic "0". The
results of logic XOR operation of two binary bits are shown in
Table 9.2 Logic
Operation .
Math Operation
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
129
