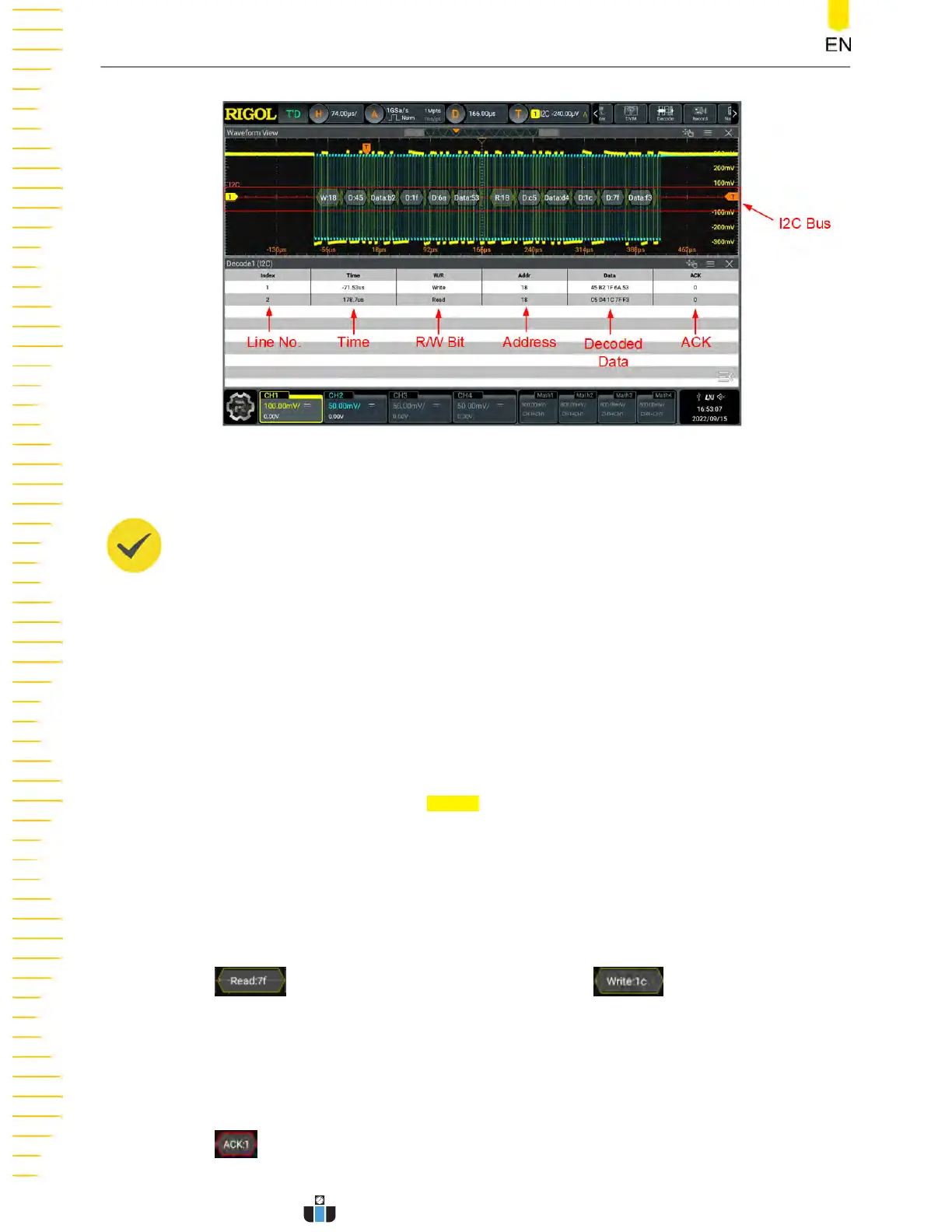

Figure 14.9 I2C Decoding Event Table
TIP
• When you adjust the horizontal time b
ase, the waveform displayed on the screen will also
change, and the total number of lines containing the decoding information in the event
table will also be changed.
• The displayed decoded data information in the bus is related to the value of the
horizontal time base. Reducing the horizontal time base can help you view the detailed
information.
Export
When the oscilloscope is in "STOP" state, you can export the time and its
corresponding decoded data in the event table.
In Decode menu, click or tap
Export, then the save setting int
erface is displayed. You
can export the data to the internal memory or the external USB storage device (only
when detected) in *.csv format. For details, refer to
Store and Load
.
Address information in decoding
For I2C bus, each frame of data starts with the address information (read address and
write address). In the address information, "Read" indicates the read address
(
) and "Write" indicates the write address ( ). You can decide
whether to include or ex
clude the "R/W" bit for the address information.
Error expressions in decoding
In I2C decoding, the response includes ACK (acknowledgment) and NACK (non-
acknowledgment). When NACK is detected after "Write", red error report information
(
) is displayed.
Protocol Decoding
DHO1000 User Guide
186
