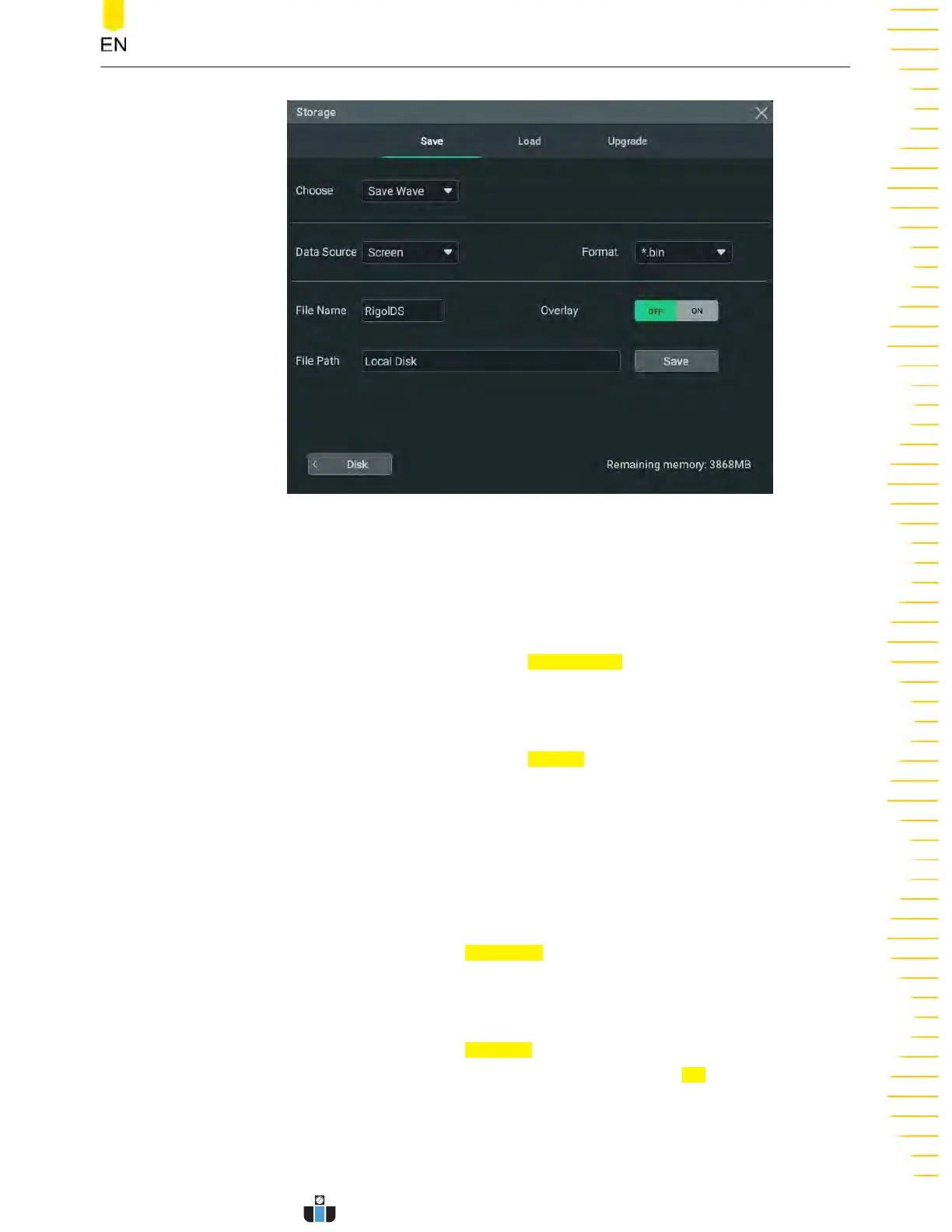

Figure 19.2 Waveform Saving Setting Menu
Set the source o
f the waveform data and the format of the saved waveform
• Data source
Click or tap the drop-down button of
Data Source t
o select
"Screen" or
"Memory".
• Waveform format
Click or tap the drop-down button of
Format t
o select the format of the saved
wav
eform. When the data source is set to "Screen", the format can be set to
"*.bin" or "*.csv"; when the data source is set to "Memory", the format can be
set to "*.bin", "*.csv", or "*.wfm".
Set the file saving parameters
• Set the filename
Click or tap the input field of
File Name to input the file name t
o be saved with
the pop-up virtual keypad.
• Set the file path
Click or tap the input field of
File Path, then the disk management inter
face is
displayed. Select the target directory and then click or tap
OK to set the file path.
For detailed operations, r
efer to descriptions in
Disk Management
.
When a USB device is not connected, the default file path is the "Local Disk";
when a USB device is detected, the path is automatically set to "D:".
Store and Load
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
217
