Rigol DHO1000 Series User Manual

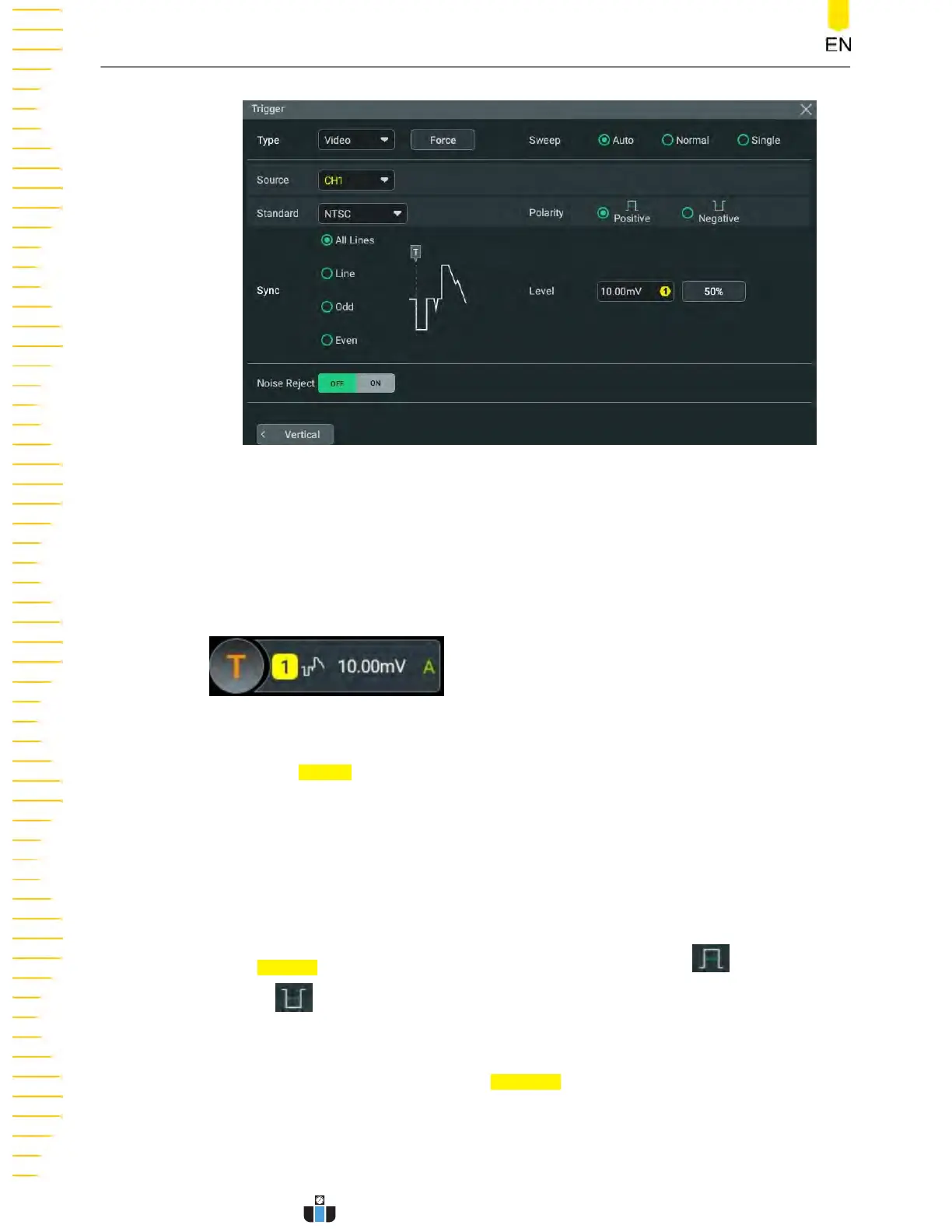

Figure 8.8 Video Trigger Setting Menu
Aft
er a trigger type is selected, the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
Source Selection
Click or tap Source drop-down button to select CH1-CH4. For details, refer to
Trigger
Source . The selected trigger source is indicated in the trigger information label at the
top of the screen.
Only when you select the channel that has signal inputs as the trigger source, can you
obtain a stable trigger.
Video Polarity
In the
Polarity it
em, select the desired polarity: positive polarity (
) or negative
polarity ( ).
Video S
tandar
d
Click or tap the drop-down button of
Standard t
o select the desir
ed video standard.
Triggering the Oscilloscope
DHO1000 User Guide
78
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
