Rigol DHO1000 Series User Manual

Upper Limit of Trigger Level
(Up Level)
Lower Limit of Trigger Level
(Low
Level)
A
B
Positive Slope Time
Negative Slope Time

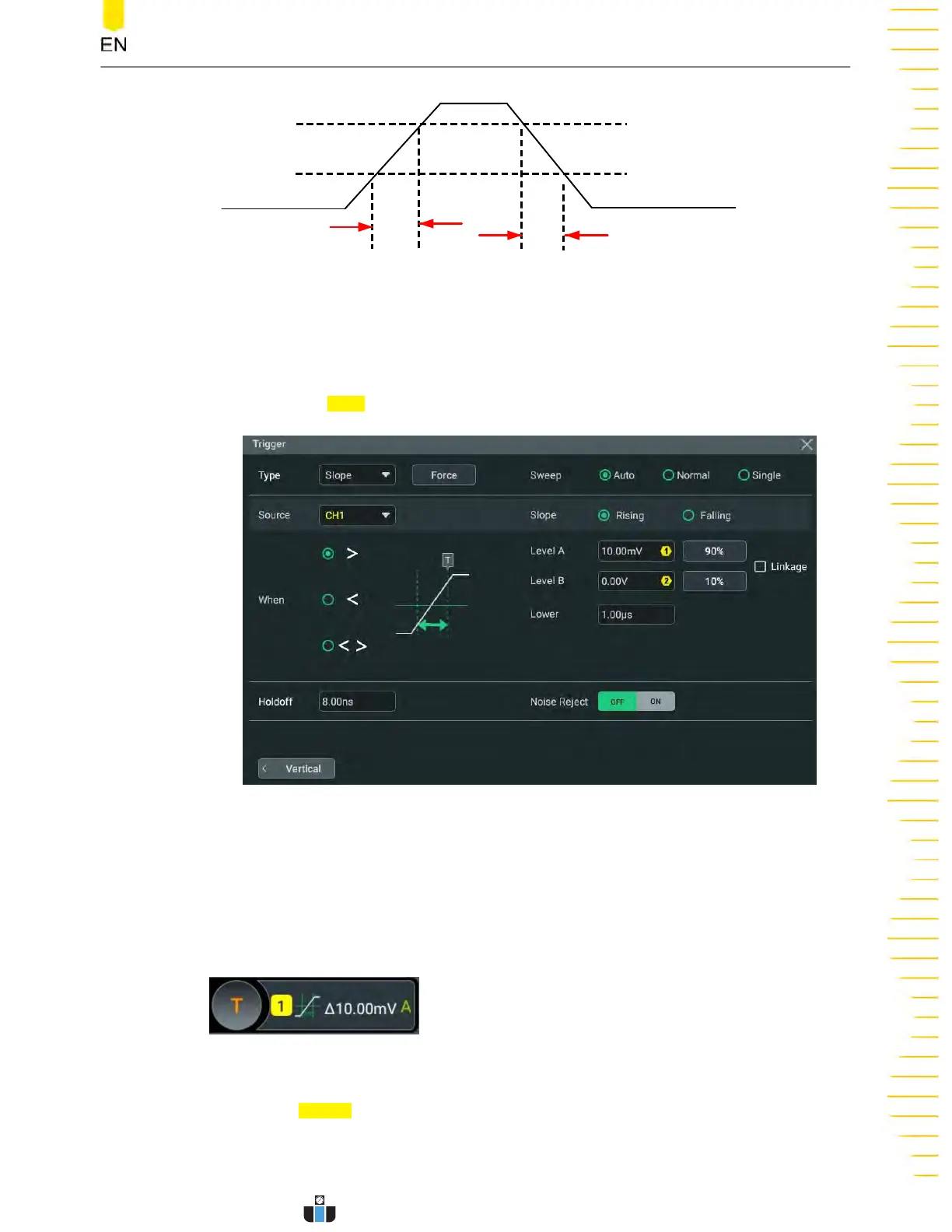

Figure 8.6 Positive Slope Time/Negative Slope Time
Tr
igger Type
Click or tap the
Type drop-down button to select "Slope".
Figure 8.7 Slope Trigger Setting Menu
Af
t
er a trigger type is selected, the current trigger setting information (including
trigger type, trigger source, and trigger level) is displayed in the trigger information
label at the top of the screen, as shown in the figure below. The information will
change based on the trigger settings.
Source Selection
Click or tap Source drop-down button to select CH1-CH4. For details, refer to
Trigger
Source
. The selected trigger source is indicated in the trigger information label at the
top of the screen.
Triggering the Oscilloscope
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
DHO1000 User Guide
75
