6. PROGRAM CONTROL
IMR02L04-E3
6-16

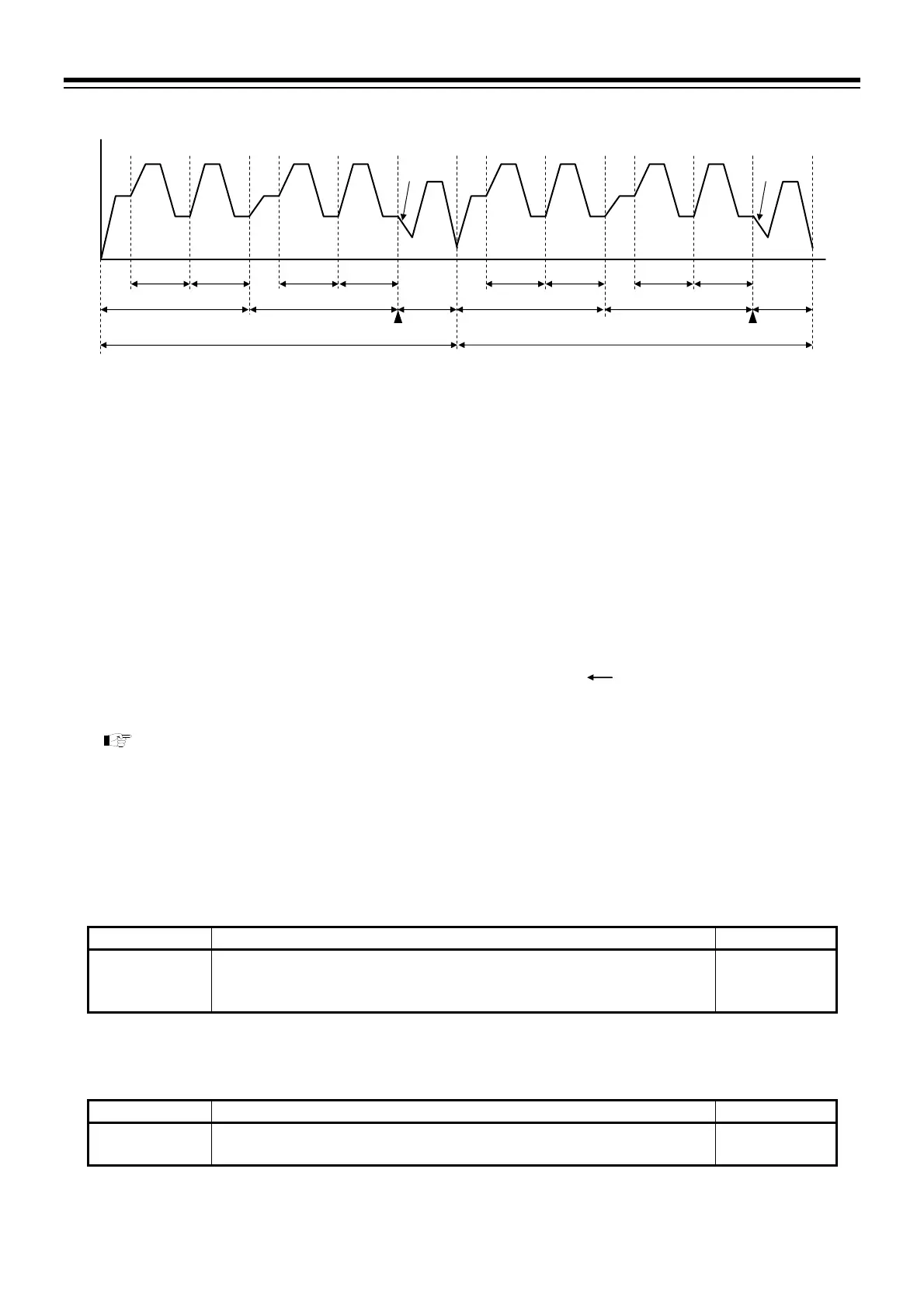

Program pattern composed by Repeat function and Pattern link
[Parameter setting]
Pattern 1: Segment repeat start/end number: Start number: 3
End number: 6
Segment repeat execution time: 2 (A in the above diagram)
Pattern repeat execution time: 2 (B in the above diagram)
Link pattern number: 2 (D in the above diagram)
Pattern 2: Segment repeat start/end number: Start number: 1 (factory set value)
End number: 1 (factory set value)
Segment repeat execution time: 1 (No segment repeat)
Pattern repeat execution time: 2 (E in the above diagram) Repeat setting of Total pattern
Link pattern number: 0 (No pattern link)
It is possible to produce Pattern end signal at Pattern repeat and Pattern link. For details, refer to
6.8 Pattern End (P. 6-17).
6.7.2 Parameter setting
 Segment repeat start/end number [ Parameter setting mode: Program setting block ]
Set Start segment number and End segment number of Segment repeat.
Parameter symbol Data range Factory set value
ST‹Ed
Start number (ST): 1 to 99
End number (ED): 1 to 99
Within the maximum segment number
1
 Segment repeat execution time [Parameter setting mode: Program setting block]
Set Segment repeat execution time.
Parameter symbol Data range Factory set value
RPT . SG
1 to 9999 times
1: No segment repeat
1
A
: Repeating Segments from 3 to 6
B: Repeating Pattern 1
C: Pattern 2
D: Linking Pattern 1 and Patten 2
E: Repeating Total pattern *
* Repeat Total pattern (linked patterns)
C’: The segment between Pattern 1 and Pattern 2
becomes ramp segment as there is a difference
between the last segment level of Pattern 1 and the
first
segment level of Pattern 2.
A A A A
B B C
D
A A A A
B B C
D
E E
C’ C’
