RKC INSTRUMENT PF900 User Manual

6. PROGRAM CONTROL
IMR02L04-E3
6-23

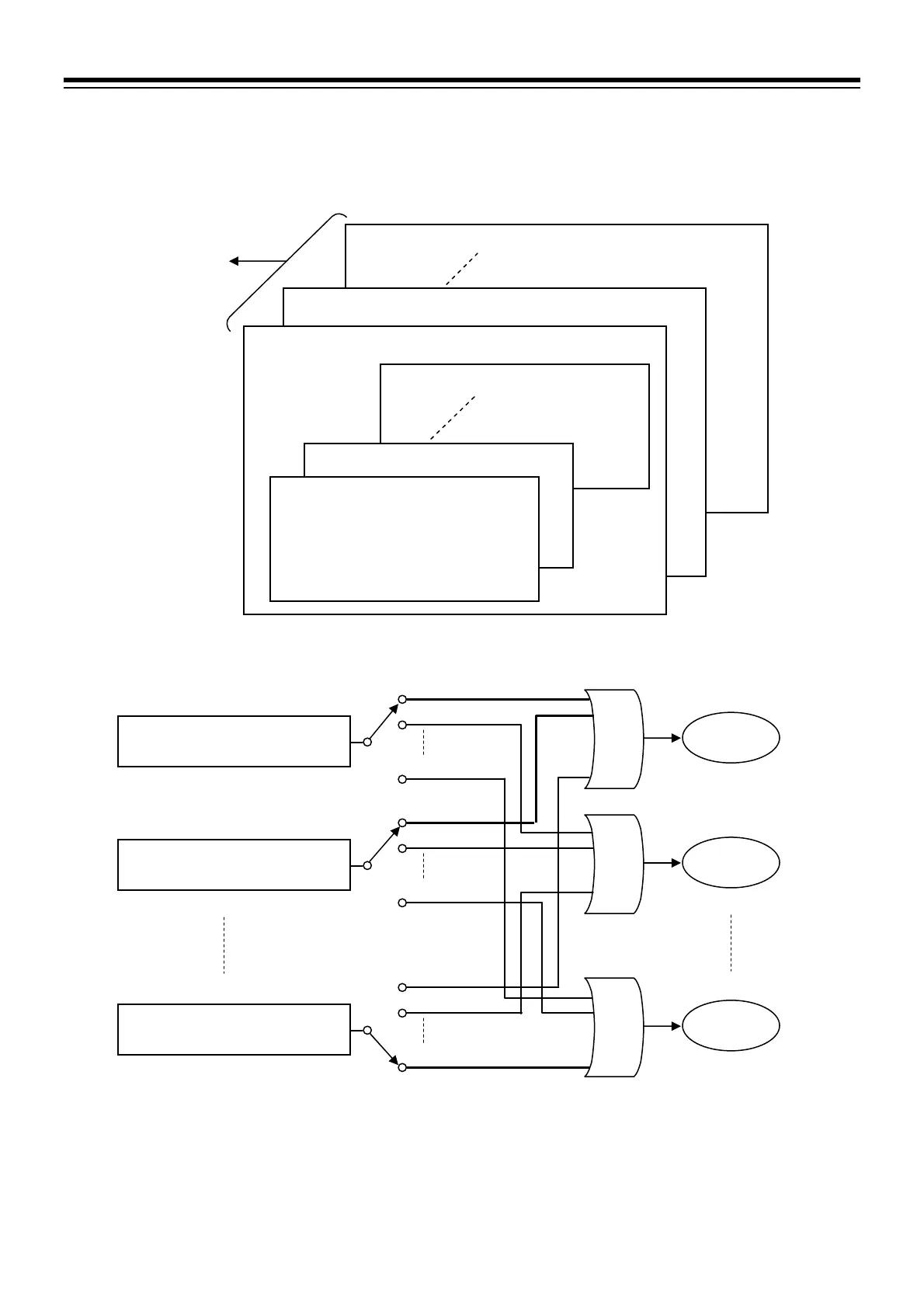

Time signal memory group
Select one Time signal memory group for each pattern (up to 16 memory groups are available). Memory
group consists of 16 memories and each one of the memories is used for setting each Time signal.
When several Time signals are assigned to one Time signal output, signal will be produced by logical OR.
Time signal 1 (TS1) turns ON when either Time signal memory 1 or 2 turns ON as Time signal 1
(TS1) output is selected to be the output assignment of Time signal memory 1 and 2 in the above
diagram.
Time signal memory group 16
Time signal memory group 2
Time signal memory 16
Time signal memory 2
Time signal memory 1
･Time signal output assignment
･Start segment of time signal
･Time signal start time
･End segment of time signal
･Time signal end time
Select one Time
signal memory
group for each
pattern.
Time signal memory group 1
[Outline of Time signal output]
TS1
TS2
TS8
TS1
TS2
TS8
TS1
TS2
TS8
TS1
output
TS2
output
TS8
output
Time signal memory 1
Time signal output assignment
Time signal memory 2
Time signal output assignment
Time signal memory 16
Time signal output assignment
