RuggedCom RSG2488 User Manual

RUGGEDCOM RSG2488
User Guide
Chapter 5
Setup and Configuration
Viewing a List of Static MAC Addresses 157
Section 5.4.3.1
Viewing a List of Static MAC Addresses
To view a list of static MAC addresses configured on the device, navigate to MAC Address Tables > Configure
Static MAC Addresses. The Static MAC Addresses table appears.

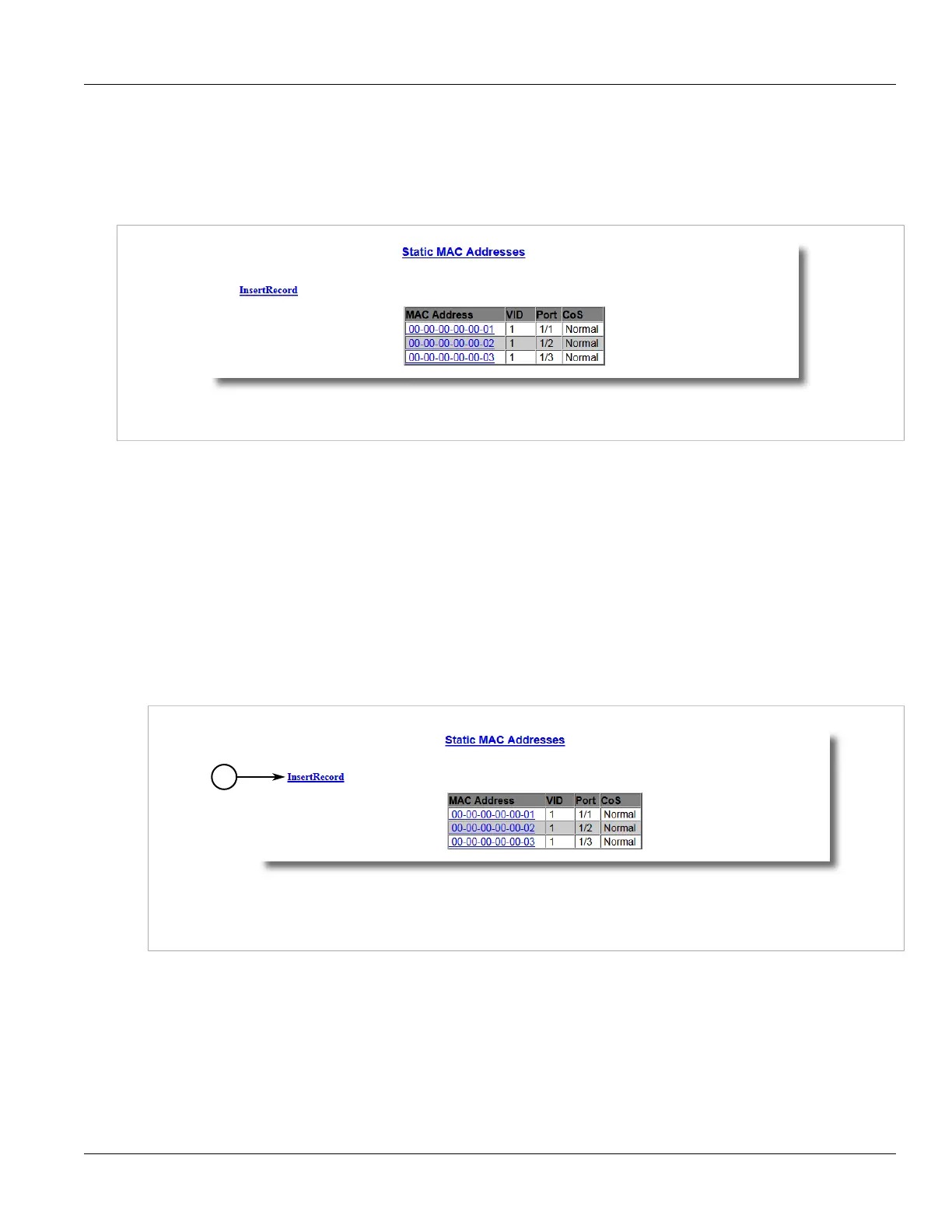

Figure 110: Static MAC Address Table
If static MAC addresses have not been configured, add addresses as needed. For more information, refer to
Section 5.4.3.2, “Adding a Static MAC Address”.
Section 5.4.3.2
Adding a Static MAC Address
To add a static MAC adress to the Static MAC Address Table, do the following:
1. Navigate to MAC Address Tables > Configure Static MAC Addresses. The Static MAC Addresses table
appears.
1
Figure 111: Static MAC Addresses Table
1. InsertRecord
2. Click InsertRecord. The Static MAC Addresses form appears.

RuggedCom RSG2488 Specifications

General

Brand	RuggedCom
Model	RSG2488
Category	Switch
Language	English
