Chapter 5
Setup and Configuration
RUGGEDCOM RSG2488
User Guide
158 Deleting a Static MAC Address

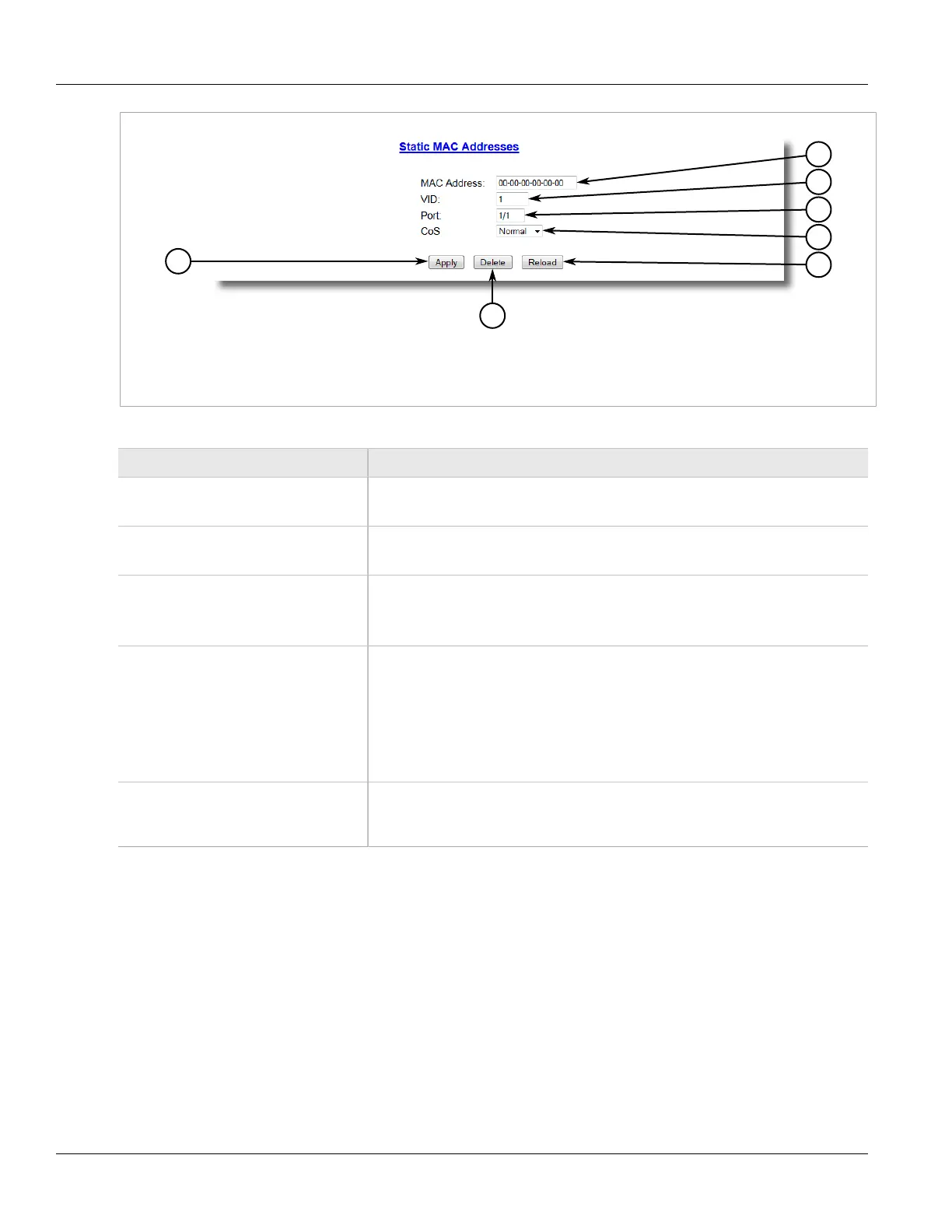

Figure 112: Static MAC Addresses Form
1. MAC Address Box 2. VID Box 3. Port 4. Apply Button 5. Delete Button 6. Reload Button
3. Configure the following parameter(s) as required:
Parameter Description
MAC Address Synopsis: ##-##-##-##-##-## where ## ranges 0 to FF
A MAC address learned by the switch.
VID Synopsis: 0 to 65535
The VLAN Identifier of the VLAN on which the MAC address operates.
Port Synopsis: 0 to 65535 or { Multi, Local }
The port on which MAC address has been learned.
MULTI - multicast address, so there is no switch port associated with this MAC address.
Type Synopsis: { Static, Dynamic }
This describes how the MAC address has been learned by the switch:
STATIC - the address has been learned as a result of a Static MAC Address Table
configuration or some other management activity and can not be automatically
unlearned or relearned by the switch.
DYNAMIC - The address has been automatically learned by the switch and can be
automatically unlearned.
CoS Synopsis: { Normal, Crit }
Specifies what Class Of Service is assigned to frames carrying this address as source
or destination address.
4. Click Apply.
Section 5.4.3.3
Deleting a Static MAC Address
To delete a static MAC address from the Static MAC Address Table, do the following:
1. Navigate to MAC Address Tables > Configure Static MAC Addresses. The Static MAC Addresses table
appears.
