Viewing Statistics for All Ethernet Ports 61
Parameter Description
The port number as seen on the front plate silkscreen of the switch.
Name Synopsis: Any 15 characters
A descriptive name that may be used to identify the device conected on that port.
Link Synopsis: { ----, ----, Down, Up }
The port's link status.
Speed Synopsis: { ---, 10M, 100M, 1G, 10G }
The port's current speed.
Duplex Synopsis: { ----, Half, Full }
The port's current duplex status.
Section 3.7.3
Viewing Statistics for All Ethernet Ports
To view statistics collected for all Ethernet ports, navigate to Ethernet Stats > View Ethernet Statistics. The
Ethernet Statistics table appears.

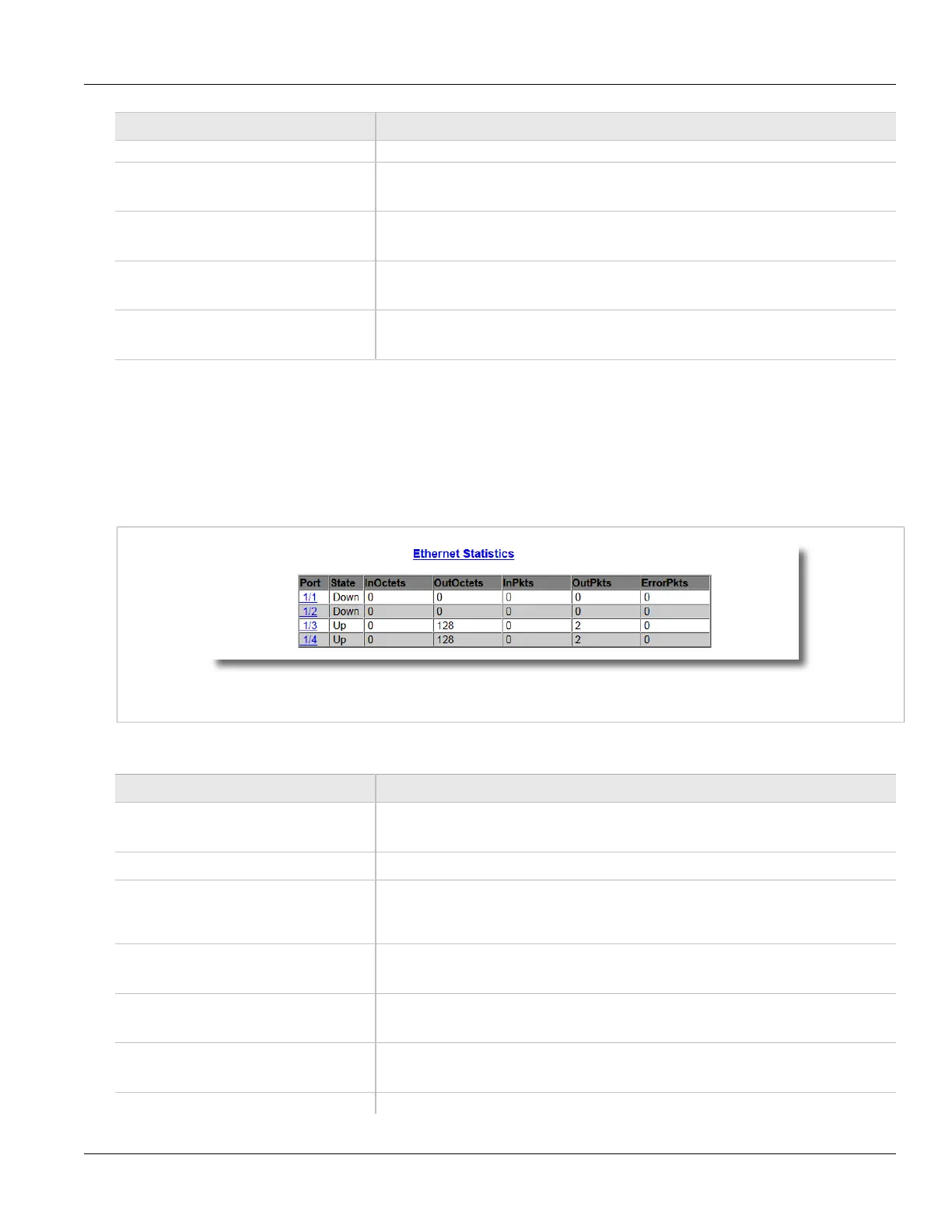

Figure 23: Ethernet Statistics Table
This table displays the following information:
Parameter Description
Port Synopsis: 1/1 to 8/2
The port number as seen on the front plate silkscreen of the switch.
State Synopsis: { ----, ----, Down, Up }
InOctets Synopsis: 0 to 4294967295
The number of octets in received good packets (Unicast+Multicast+Broadcast) and dropped
packets.
OutOctets Synopsis: 0 to 4294967295
The number of octets in transmitted good packets.
InPkts Synopsis: 0 to 4294967295
The number of received good packets (Unicast+Multicast+Broadcast) and dropped packets.
OutPkts Synopsis: 0 to 4294967295
The number of transmitted good packets.
ErrorPkts Synopsis: 0 to 4294967295
