RUGGEDCOM RSG2488
User Guide
Chapter 5
Setup and Configuration
Configuring LLDP Globally 173
Section 5.7.2, “Configuring LLDP for an Ethernet Port”
Section 5.7.3, “Viewing Global Statistics and Advertised System Information”
Section 5.7.4, “Viewing Statistics for LLDP Neighbors”
Section 5.7.5, “Viewing Statistics for LLDP Ports”
Section 5.7.1
Configuring LLDP Globally
To configure the global settings for LLDP, do the following:
1. Navigate to Network Discovery > Link Layer Discovery Protocol > Configure Global LLDP Parameters. The
Global LLDP Parameters form appears.
6
5
4
3
2
1
7

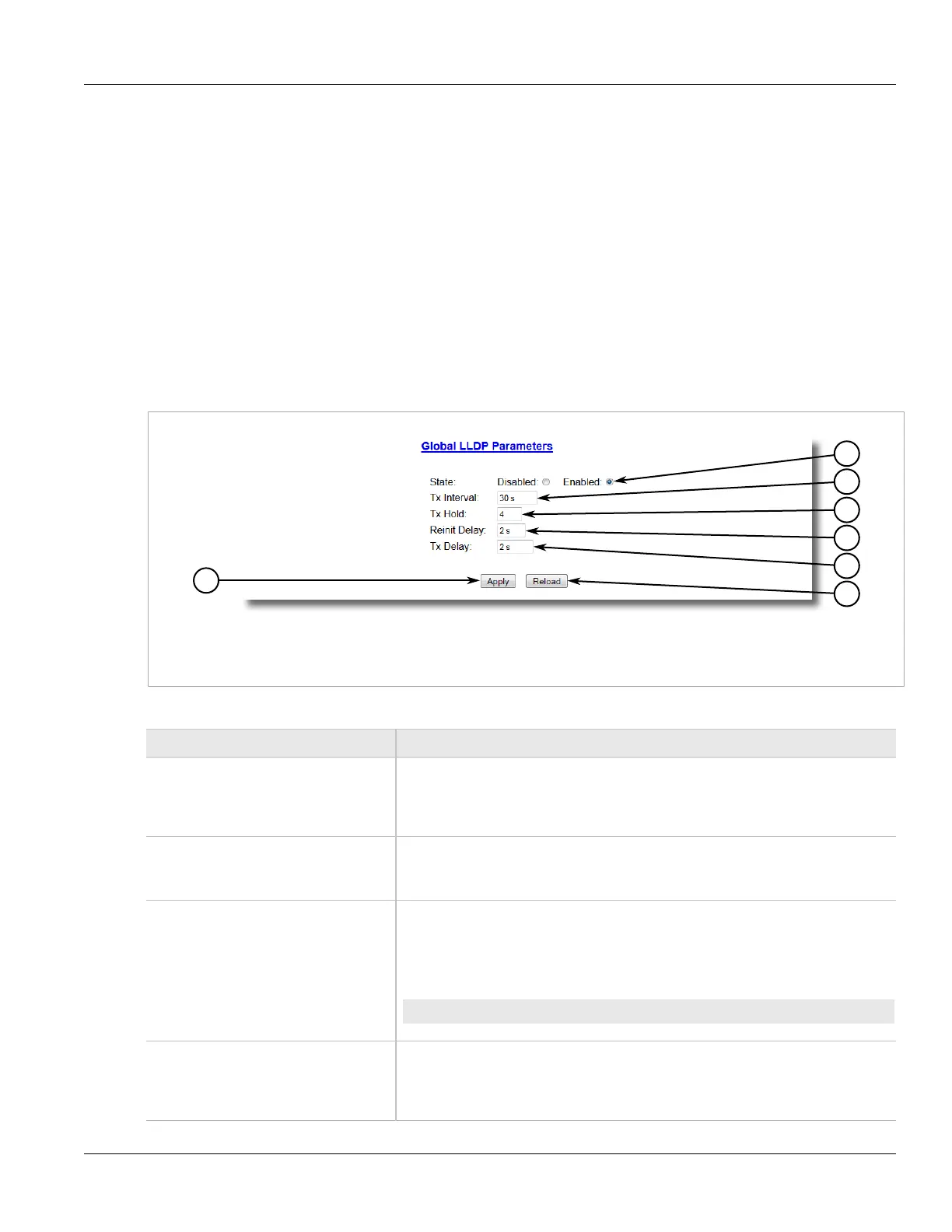

Figure 134: Global LLDP Parameters Form
1. State Options 2. Tx Interval Box 3. Tx Hold Box 4. Reinit Delay Box 5. Tx Delay Box 6. Apply Button 7. Reload Button
2. Configure the following parameter(s) as required:
Parameter Description
State Synopsis: { Disabled, Enabled }
Default: Enabled
Enables LLDP protocol. Note that LLDP is enabled on a port when LLDP is enabled
globally and along with enabling per port setting in Port LLDP Parameters menu.
Tx Interval Synopsis: 5 to 32768 s
Default: 30 s
The interval at which LLDP frames are transmitted on behalf of this LLDP agent.
Tx Hold Synopsis: 2 to 10
Default: 4
The multiplier of the Tx Interval parameter that determines the actual time-to-live (TTL)
value used in a LLDPDU. The actual TTL value can be expressed by the following
formula:
TTL = MIN(65535, (Tx Interval * Tx Hold))
Reinit Delay Synopsis: 1 to 10 s
Default: 2 s
The delay in seconds from when the value of Admin Status parameter of a particular
port becomes 'Disbled' until re-initialization will be lattempted.
