Confidential 3. Installing the Product
English 8/2019. Rev 0.0 83

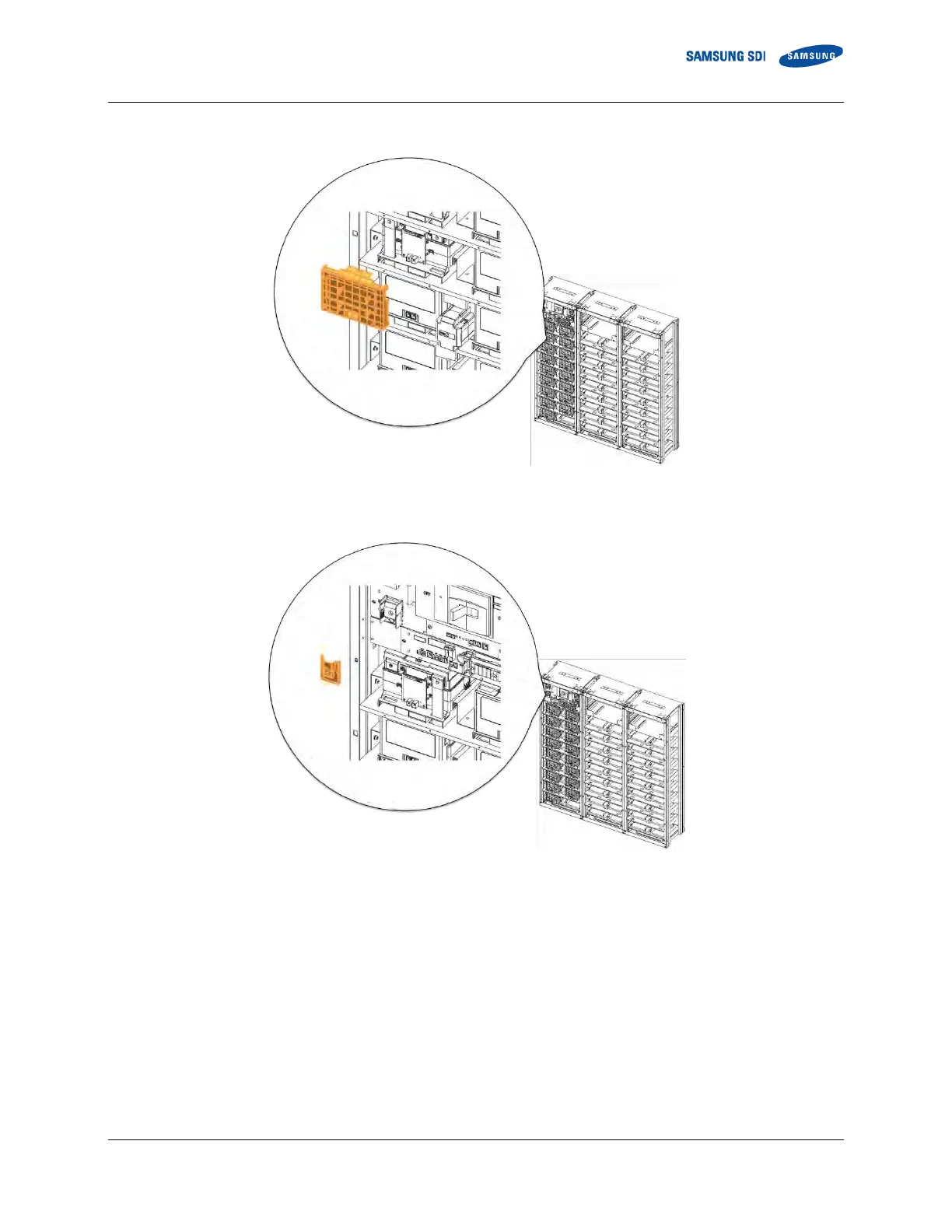

36. Reattach Battery Module #16’s front cover and remove SMU’s B+ terminal cover.
Figure 3-86: Reattach Battery Module #15’s Front Cover
Figure 3-87: Remove SMU B+ Terminal Cover
