12. Connect the signal cable “WIRE ASSY MODULE TO MODULE #1" from Module #11 “Left Connector” to
Module #12 “Right Connector.”

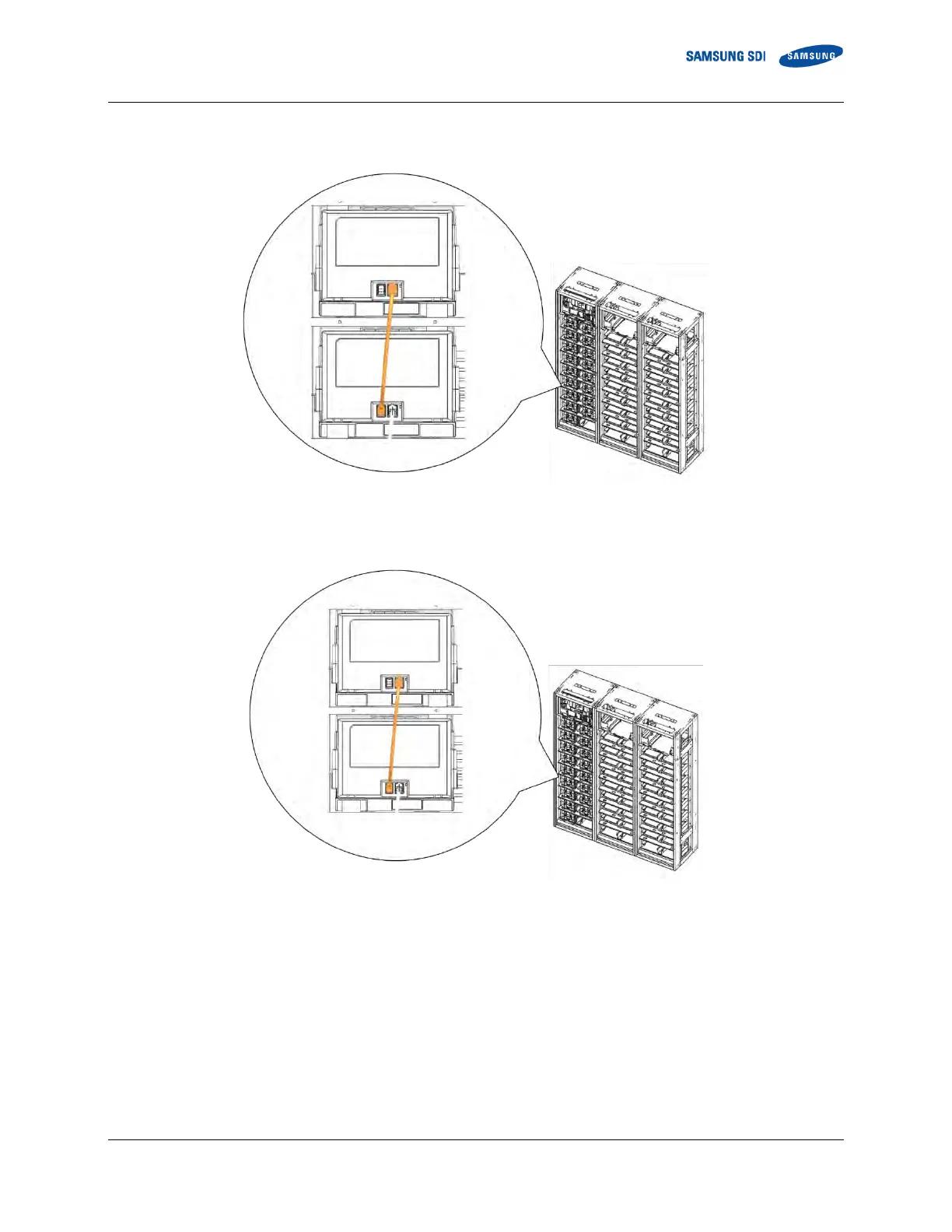

Figure 3-101: Module #11 to Module #12 Signal Cabling
13. Connect the signal cable “WIRE ASSY MODULE TO MODULE #1" from Module #12 “Left Connector” to
Module #13 “Right Connector.”
Figure 3-102: Module #12 to Module #13 Signal Cabling
