Samsung 136S - Module and SMU Signal Cable Connection

Confidential 3. Installing the Product
English 8/2019. Rev 0.0 67
19. Connect Battery Module #8 B+ and Battery Module #9 B- using “RACK FUSE BUSBAR ASSEMBLY” Connect using an M8 screw.

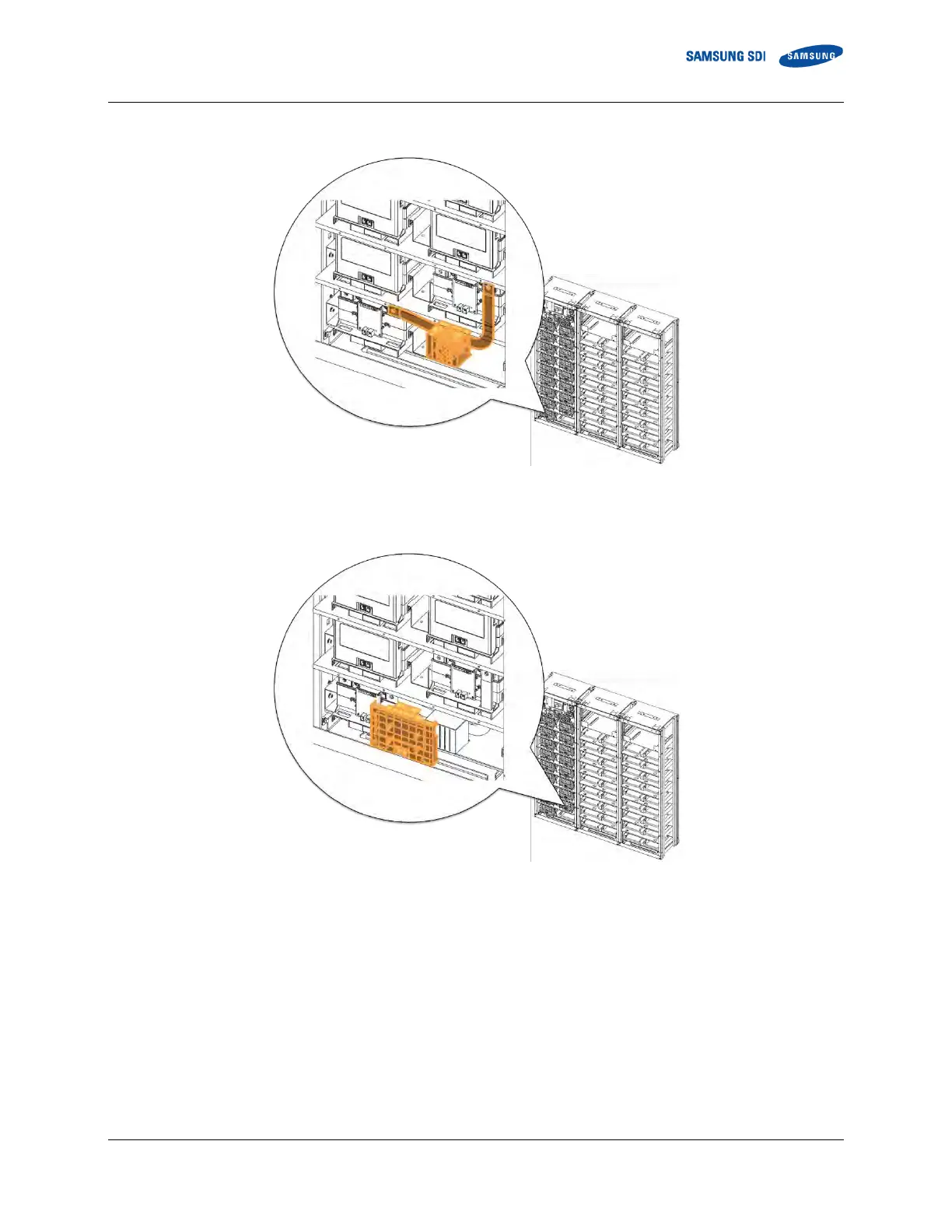

Figure 3-61: Connect Battery Module #8 B+ and Battery Module #9 B-.
20. Reattach Battery Module #8’s front cover and remove Battery Module #10’s front cover.
Figure 3-62: Reattach Battery Modules #8’s Front Cover
