3. Installing the Product Confidential
84 English 8/2019. Rev 0.0

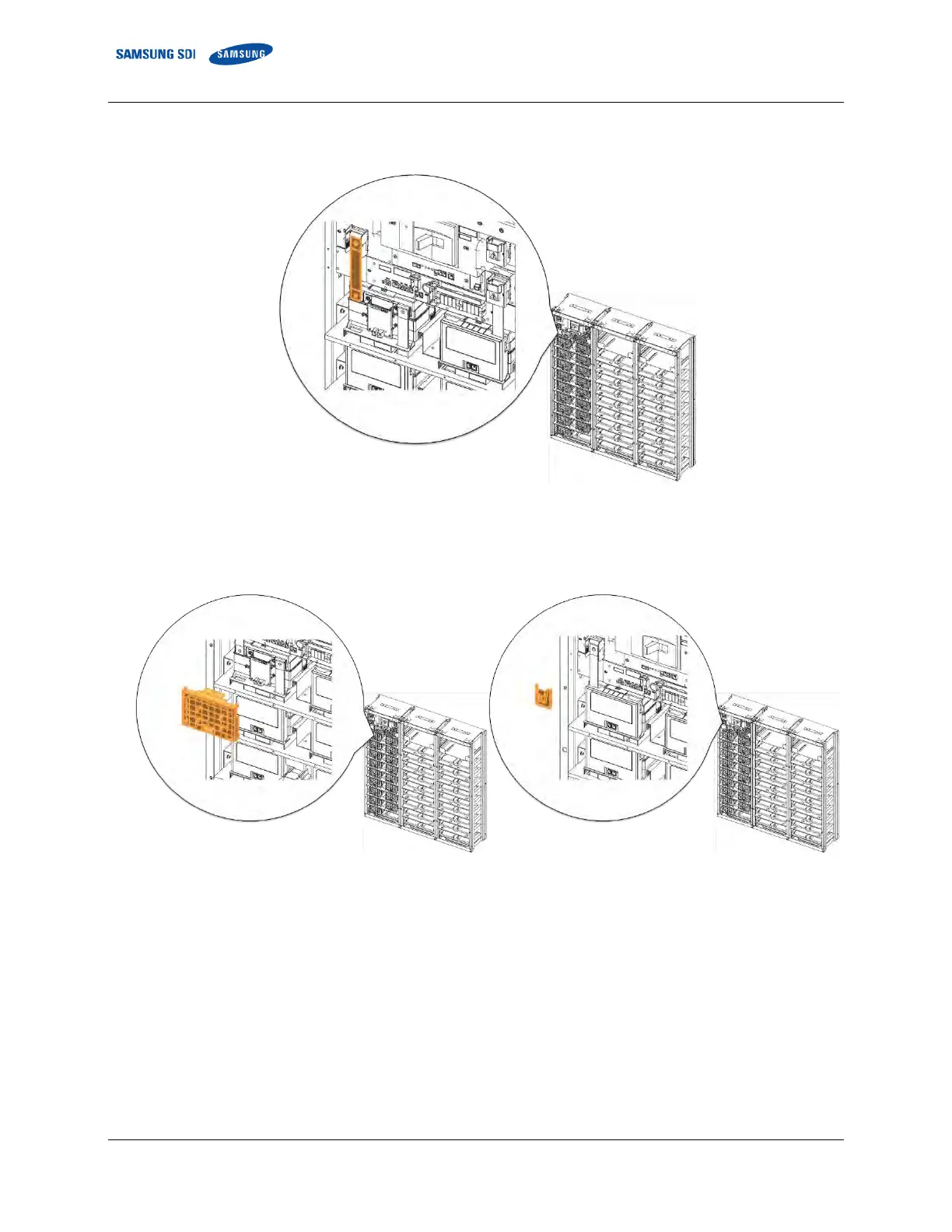

37. Connect SMU B+ and Battery Module #17 B+ using “BUSBAR M TO SMU.” SMU B+ terminal is connected using an M12xL25
screw and Module #17 B+ terminal is connected using an M8 screw.
Figure 3-88: Connect SMU B+ and Module #17 B+.
38. Reattach Battery Module #17’s front cover and SMU B+ terminal cover.
Figure 3-89: Reattach Battery Module #17’s Front Cover and SMU B+ Terminal Cover
