Samsung 136S - Table 3-12: System BMS Configuration Cable Pin Map

3. Installing the Product Confidential
112 English 8/2019. Rev 0.0

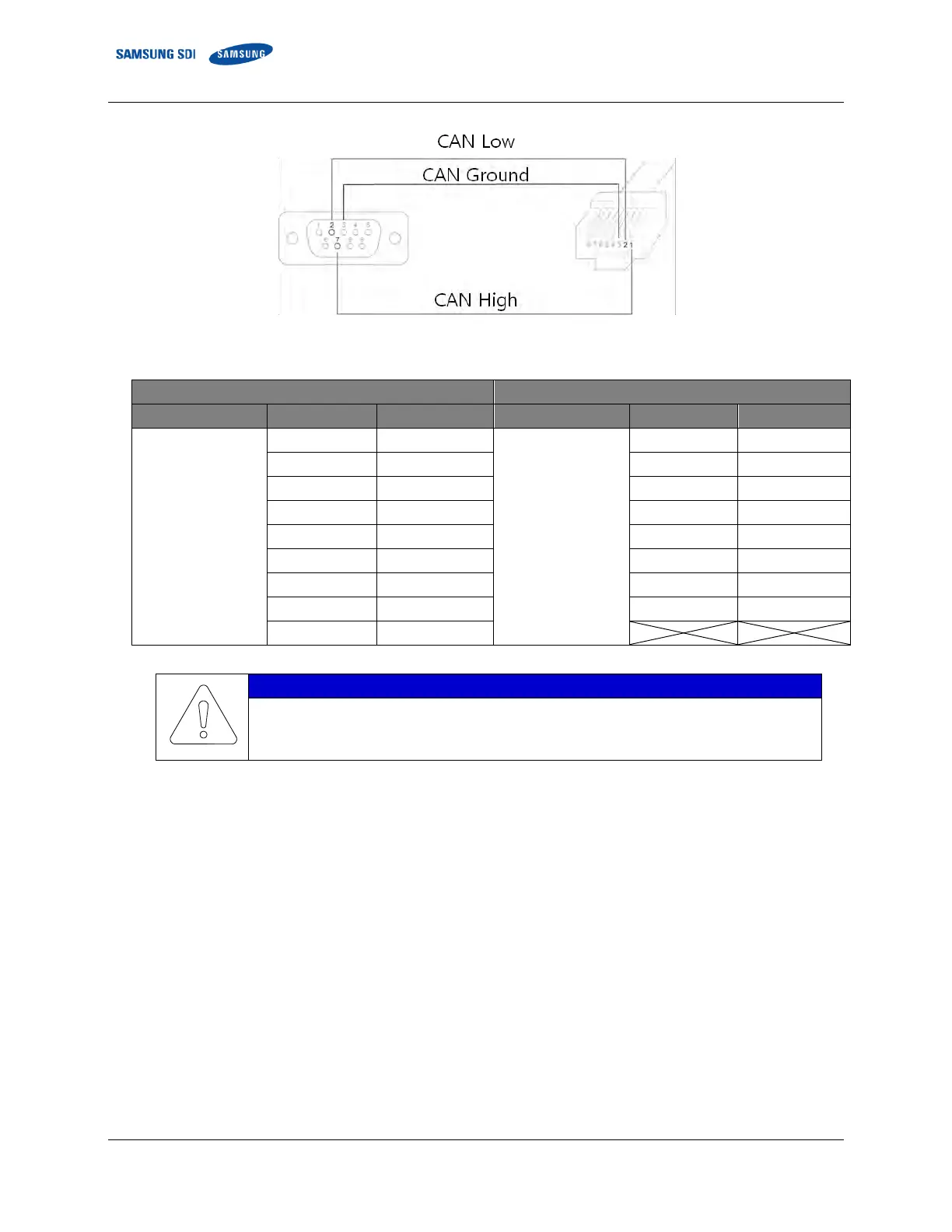

Figure 3-131: System BMS Configuration Cable Pin Map
Table 3-12: System BMS Configuration Cable Pin Map
Connection A
Connection B
Connector
Pin No.
Signal
Connector
Pin No.
Signal
D-SUB (Female)
1
-
RJ45
1
CAN High
2
CAN Low
2
CAN Low
3
CAN Ground
3
CAN Ground
4
-
4
-
5
-
5
-
6
-
6
-
7
CAN High
7
-
8
-
8
-
9
-
NOTICE
 A 120  termination resistor must be inserted between the pins for No. 2 and No. 7 in the D-
SUB (Female).
