14. Connect the signal cable “WIRE ASSY MODULE TO MODULE #1" from Module #13 “Left Connector” to
Module #14 “Right Connector.”

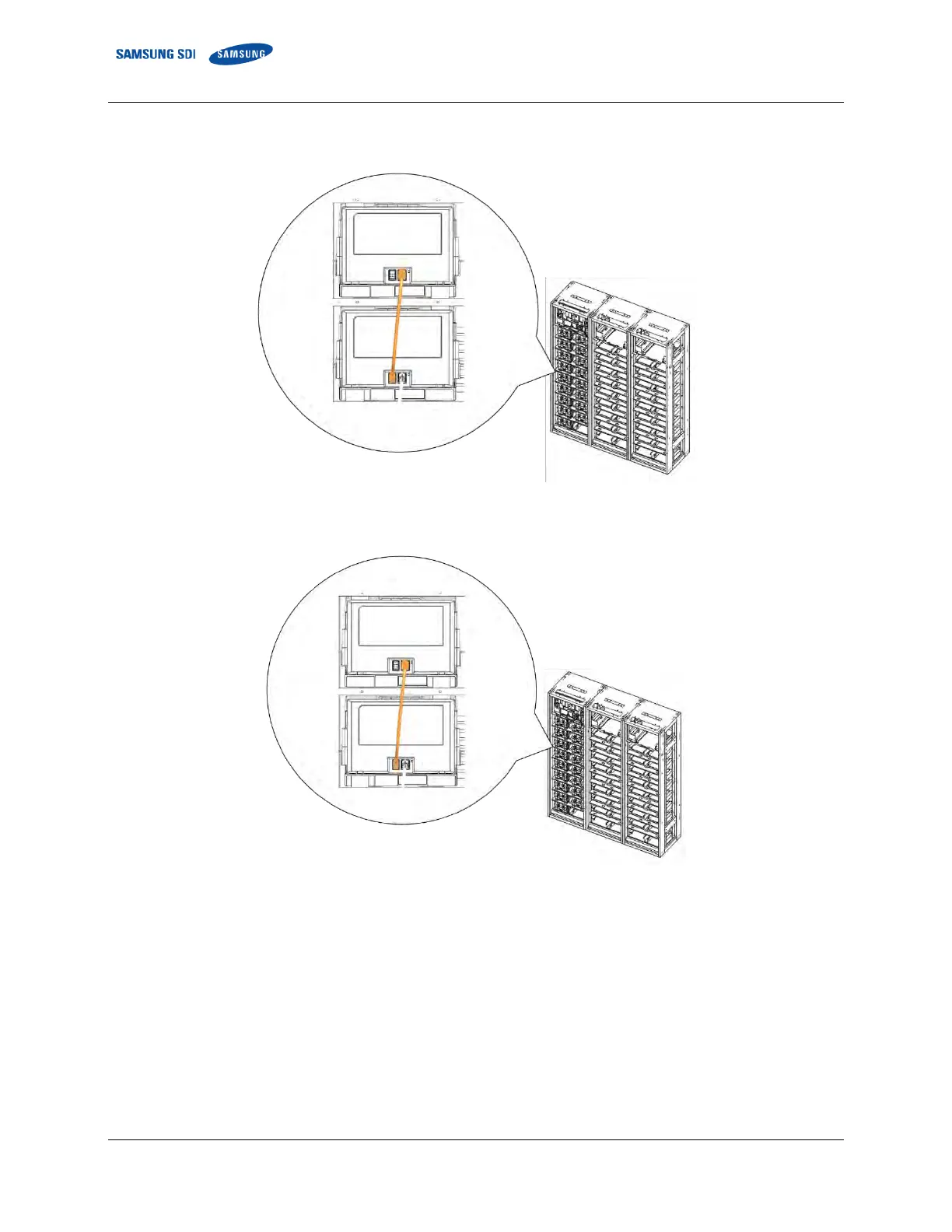

Figure 3-103: Module #13 to Module #14 Signal Cabling
15. Connect the signal cable “WIRE ASSY MODULE TO MODULE #1" from Module #14 “Left Connector” to
Module #15 “Right Connector.”
Figure 3-104: Module #14 to Module #15 Signal Cabling
