Confidential 3. Installing the Product
English 8/2019. Rev 0.0 103

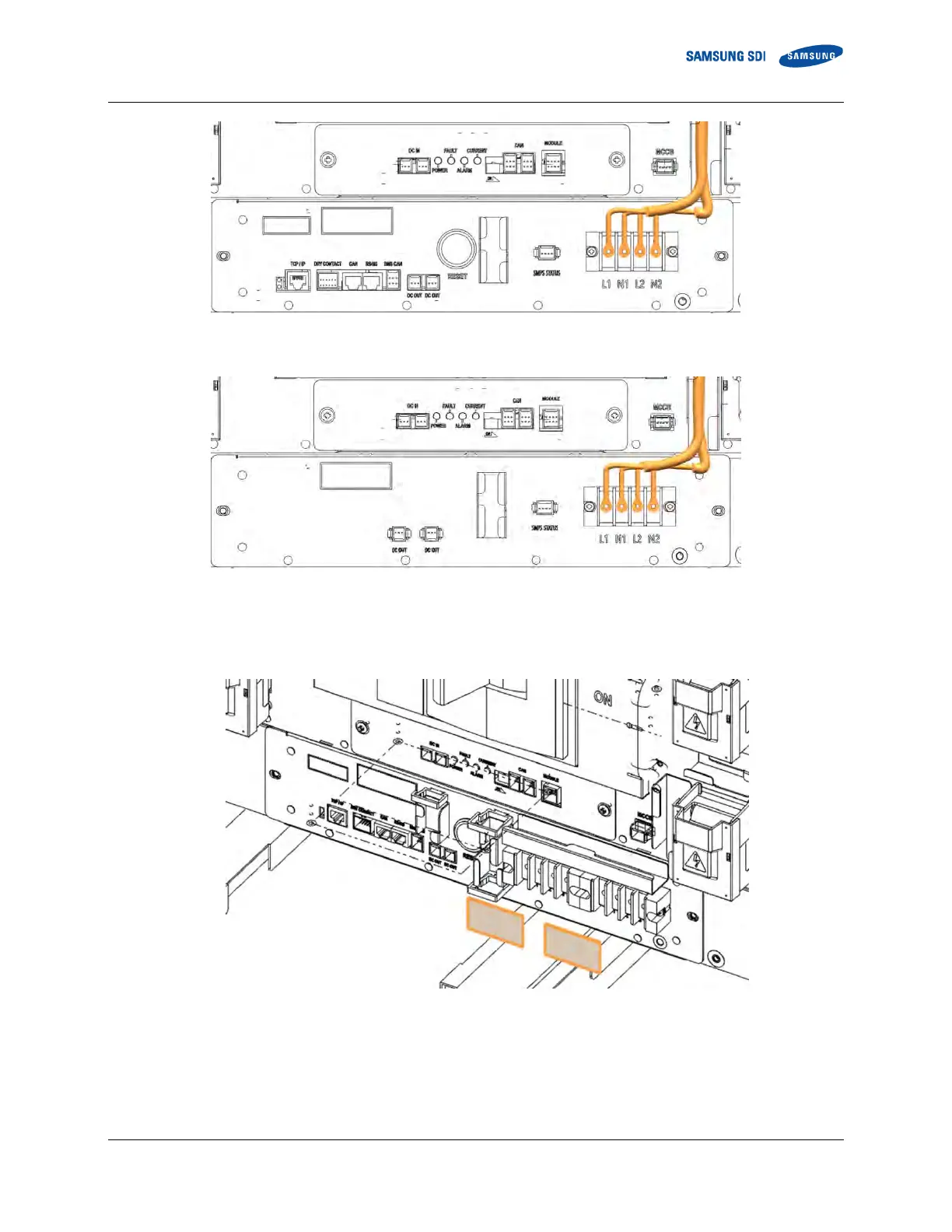

Figure 3-122: SMPS Assembly 1 Phase Type A - AC Input Terminals with Cables Attached
Figure 3-123: SMPS Assembly 1 Phase Type B - AC Input Terminals with Cables Attached
3. Reattach the protective covers to the AC input.
Figure 3-124: AC Input Terminals of SMPS Assembly 3 Phase Type A
To Next Page
