3. Installing the Product Confidential
58 English 8/2019. Rev 0.0

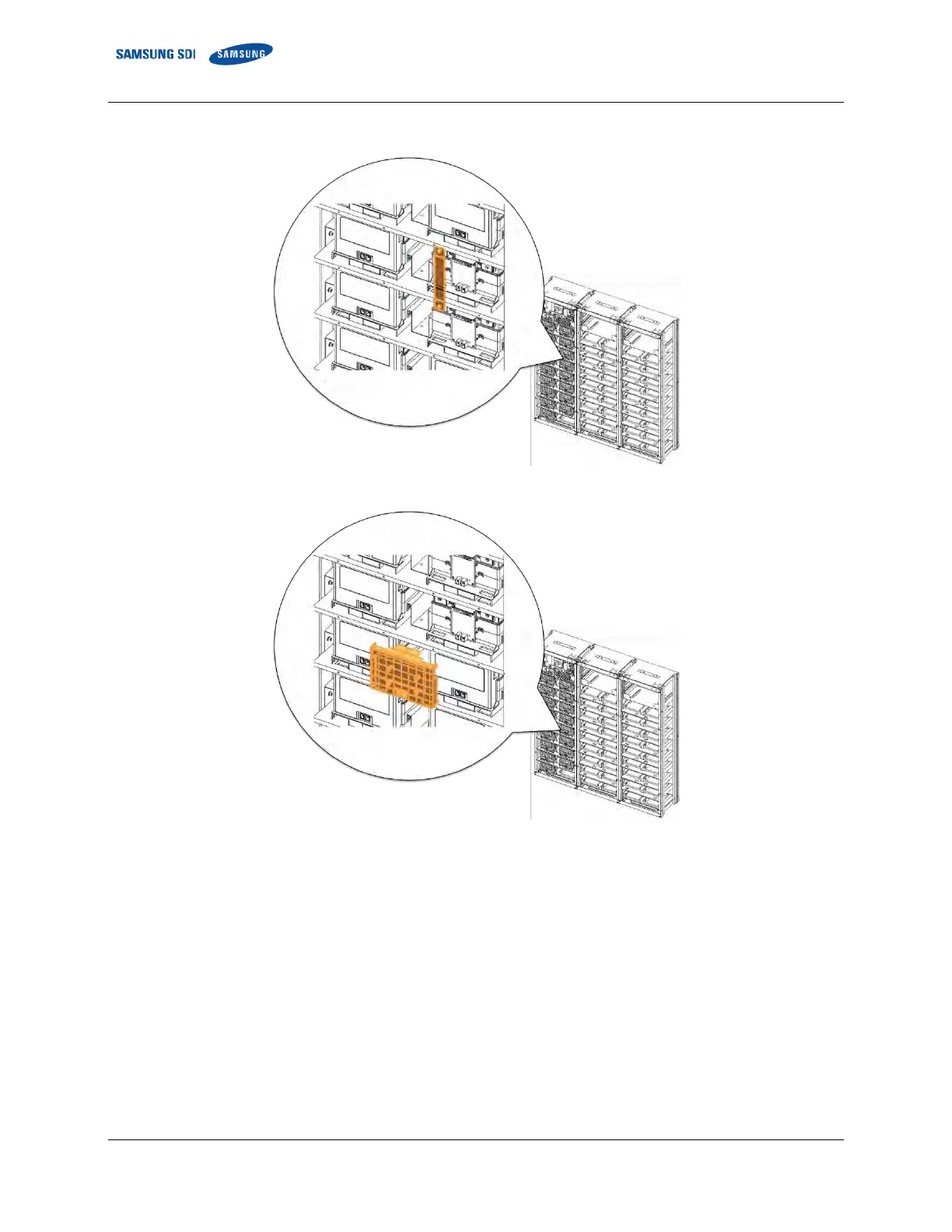

10. Reattach Battery Module #3’s front cover and remove Battery Module #5’s front cover.
Figure 3-47: Reattach Battery Module #3’s Front Cover
Figure 3-48: Remove Battery Module #5’s Front Cover
