Confidential 3. Installing the Product
English 8/2019. Rev 0.0 61
13. Connect Battery Module #5 B+ and Battery Module #6 B- using “FUSE BUSBAR RIGHT ASSEMBLY”. Connect using an M8
screw.

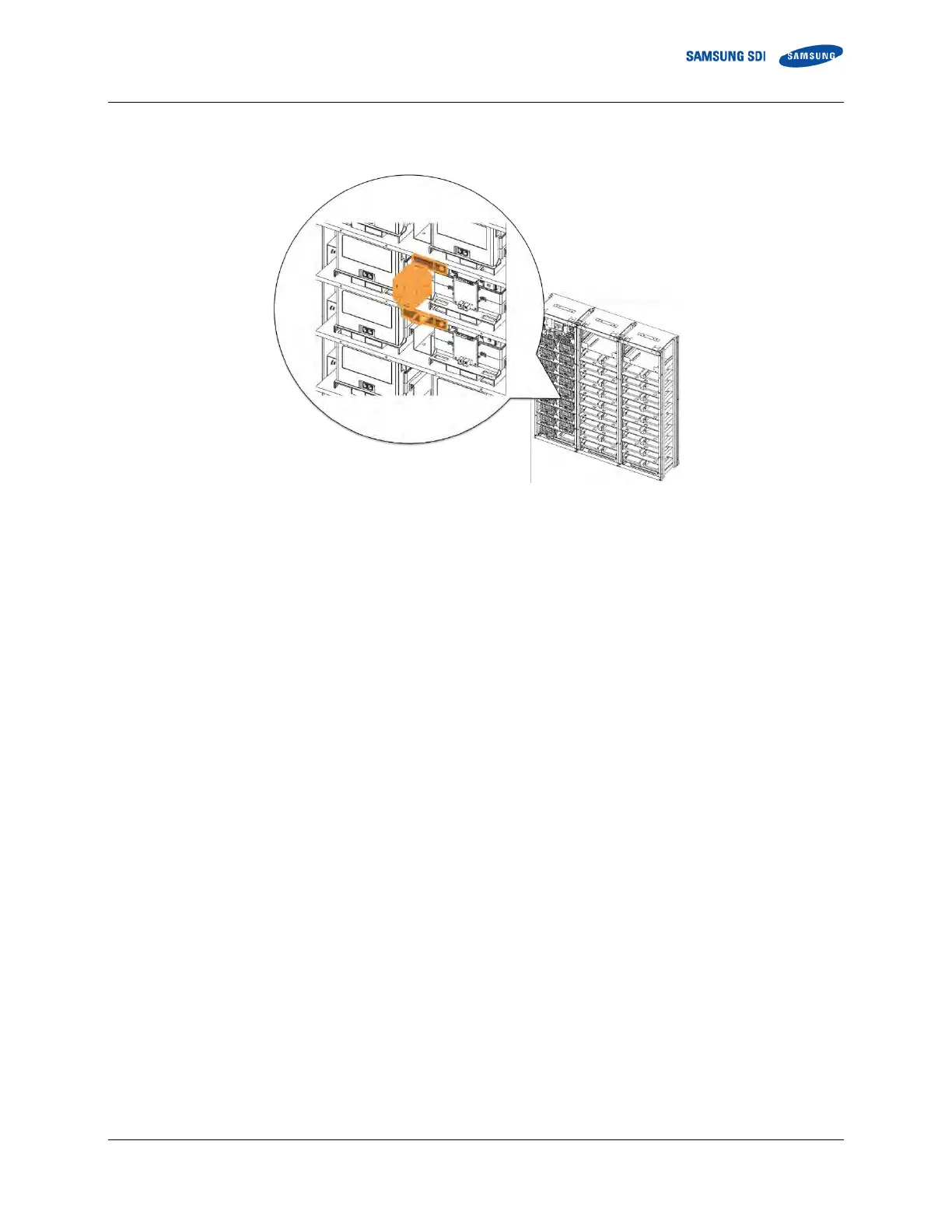

Figure 3-52: Connect Battery Module #5 B+ and Battery Module #6 B-.
