Samsung 136S - Figure 3-143: Rack BMS Termination Switch and CAN Cable Connection

Confidential 3. Installing the Product
English 8/2019. Rev 0.0 119

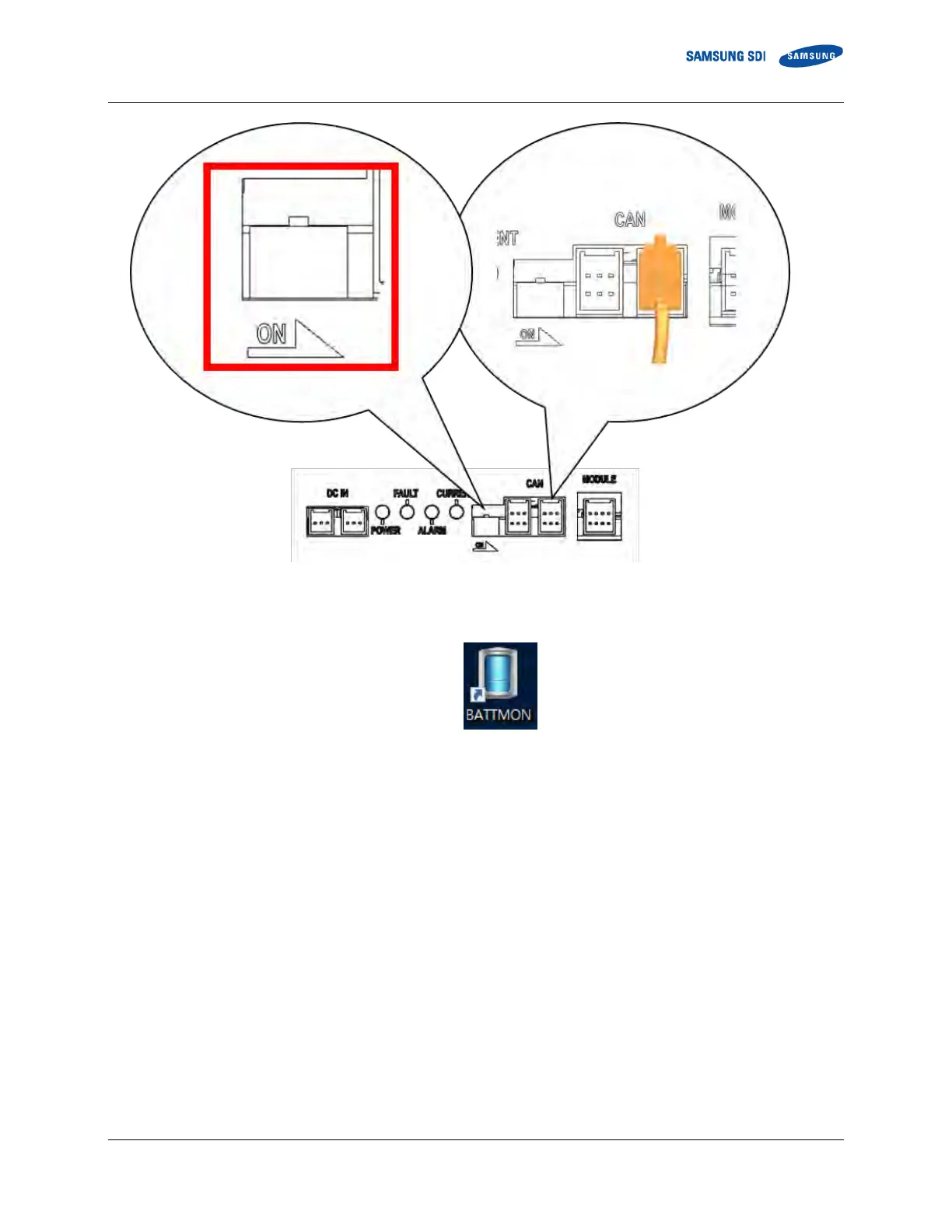

Figure 3-143: Rack BMS termination switch and CAN cable connection
3. Run “BATTMON.exe”
Figure 3-144: BATTMON Icon
4. Click the “CONFIG” button under the RACK BMS part to configure the Rack BMS
